Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91))

CRAWLER EXCAVATORS Case 170C
/case/170C/m83/s-236.html / 09 CHASSIS / DECALS AND MANUAL BOX, P.I.N. 02305 AND AFTER

Select section

Subsection

Unit

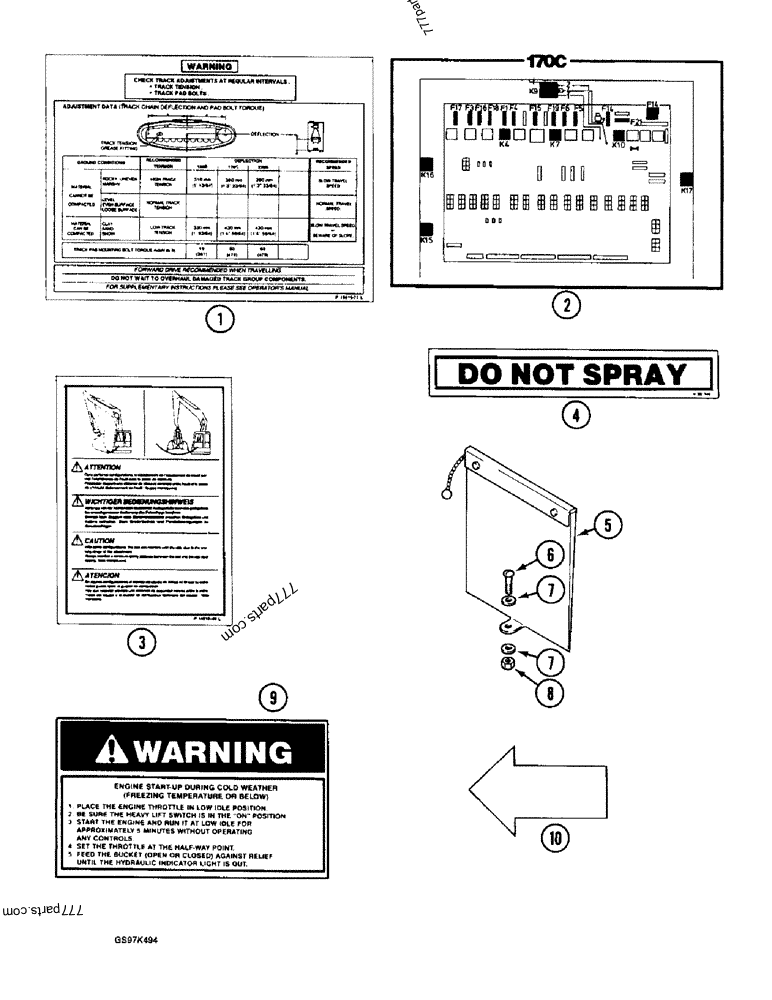

Part diagram DECALS AND MANUAL BOX, P.I.N. 02305 AND AFTER - CRAWLER EXCAVATORS Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91)) | 777parts.com
# Part No. Description Qty
1 P1***71 DECAL; - Warning, check track adjustments 1
2 P1***82 DECAL; - fuse and magnetic switch location, in electrical box 1
3 P1***86 DECAL; - Caution, tool interference with cab 1
4 P3***43 DECAL; - do not spray 1
5 P1***43 KIT; BOX - unit manuals, if used 1
6 P3***32 SCREW; - slotted head, 4 mm x 30 mm, if used 1
7 P3***03 WASHER; - flat, 4 mm, if used 2
8 P3***07 NUT - hex, 4 mm, order from Deutz, if used 1
9 P1***33 DECAL; - cold starting 1
10 P1***66 DECAL; - travel direction 2
