Case 170F (POCLAIN EXCAVATOR W/ELECTRIC MOTOR (132KW 380V) (1/85-12/92))

CRAWLER EXCAVATORS Case 170F
/case/170F/m84/s-237.html / No Description / HANDLING CLAM STICK 7,30M

Select section

Subsection

Unit

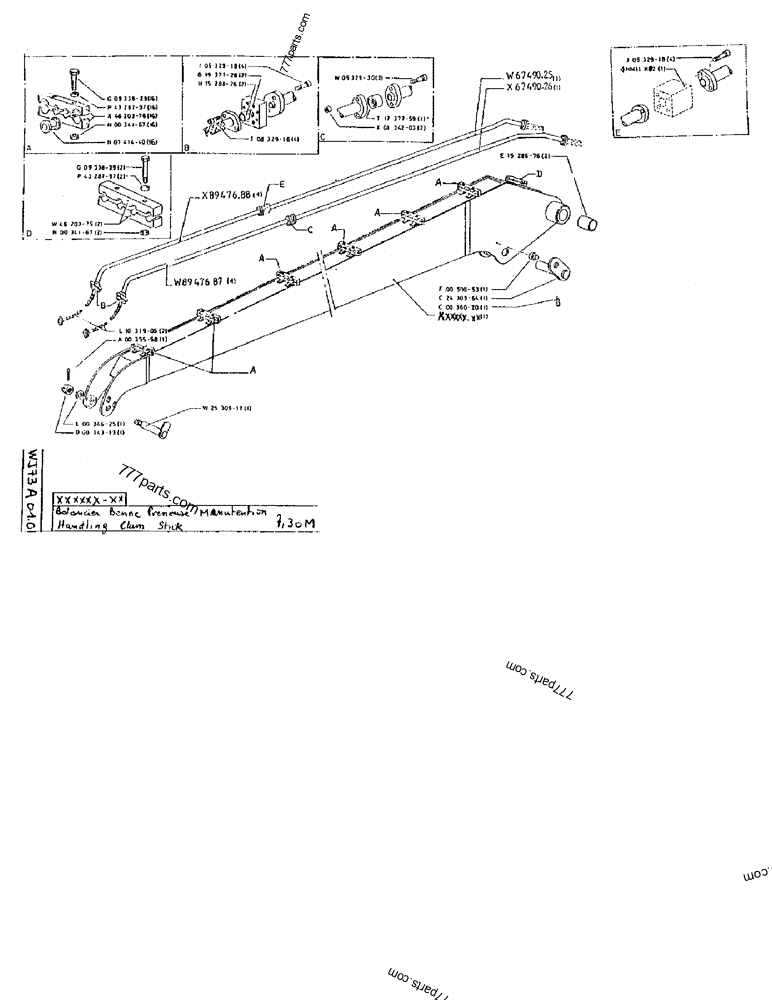

Part diagram HANDLING CLAM STICK 7,30M - CRAWLER EXCAVATORS Case 170F (POCLAIN EXCAVATOR W/ELECTRIC MOTOR (132KW 380V) (1/85-12/92)) | 777parts.com
# Part No. Description Qty
86***81 BOLT,Hex, M12 x 85mm, Cl 8.8 16
P4***97 WASHER 16
X4***76 SHIN 16
33***75 NUT,M12, Cl 10 16
N7***40 RUBBER BUSHING 16
J5***18 SCREW,Hex Skt, M12 x 40mm, Cl 10.9 4
D1***28 2
U1***26 2
T8***16 SCREW,Hex, M10 x 40mm, Cl 10.9 4
W5***30 SCREW,Hex Skt Hd, M12 x 100mm, Cl 10.9 2
T1***59 JUNCTION 1
33***75 NUT,M12, Cl 10 2
86***81 BOLT,Hex, M12 x 85mm, Cl 8.8 2
P4***97 WASHER 2
W4***75 SHIN 2
33***75 NUT,M12, Cl 10 2
J5***18 SCREW,Hex Skt, M12 x 40mm, Cl 10.9 4
HM***02 1
X8***88 PIPE; SPARE PART 1
W8***87 PIPE; SPARE PART 1
L1***05 HOSE,19.05 mm ID x 1250.00 mm 2
A3***58 SPLIT PIN; C|POCLAIN ORDER/CDER/BESTELLE ....... 1 PA35558 CASE ORDER/CDER/BESTELLE ....... 1 D140524 1
L3***25 WASHER 1
D3***19 NUT; C|CASE : NUT - PART NOT LONGER AVAILABLE ....... 1 NLS POCLAIN : NUT - ORDER THE REFERENCE ....... 1 P34319 1
W2***17 PIN 1
W6***25 PIPE; SPARE PART 1
X6***26 PIPE; SPARE PART 1
E1***76 BUSHING 2
F5***53 SHAFT LOCK 1
C2***64 PIN 1
C3***20 SPLIT PIN/SAFETY PIN 1
XX***XX 1
