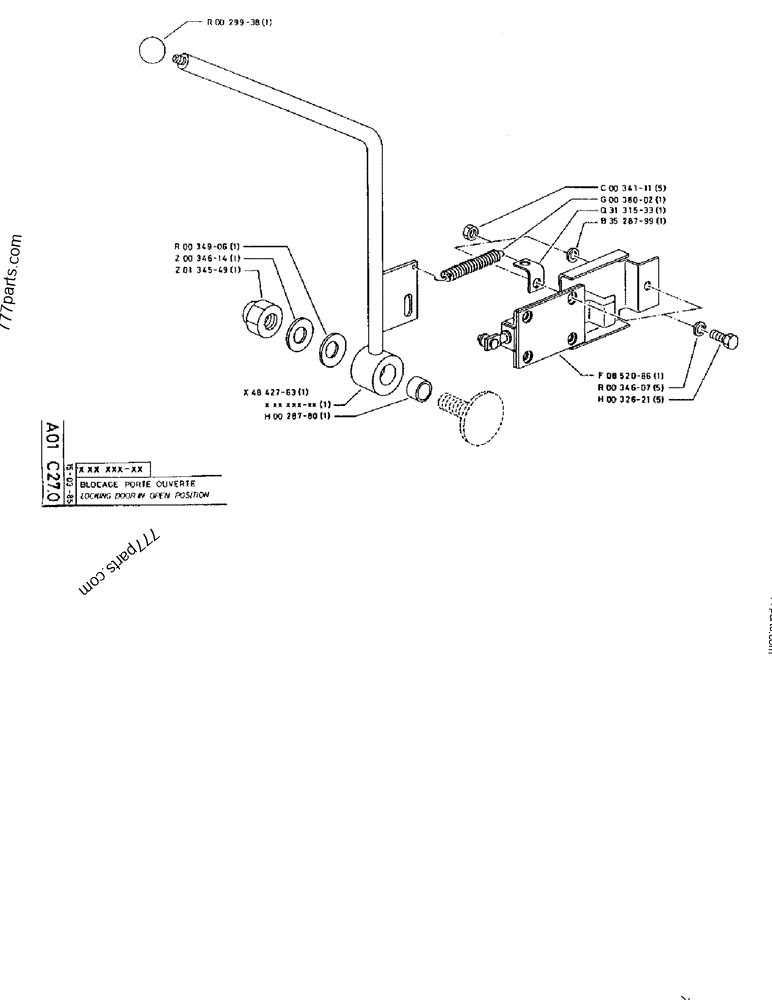

Part diagram LOCKING DOOR IN OPEN POSITION - CRAWLER EXCAVATORS Case 170FG (POCLAIN EXCAVATOR W/ELECTRIC MOTOR (75KW 380V) (1/85-12/92)) | 777parts.com
# Part No. Description Qty
P2***38 BALL KNOB 1
R3***06 RUBBER WASHER 1
Z3***14 WASHER 1
Z1***49 NUT 1
X4***63 CONTROL LEVER 1
XX***XX 1
H2***80 SELF LUB RING 1
15***21 NUT,Hex, M6, 5.20mm High, Cl 10 5
G3***02 COIL SPRING 1
Q3***33 ANGLE BAR 1
B3***99 WASHER 1
F8***86 LOCK ASSY 1
R3***07 WASHER 5
86***68 BOLT,Hex, M6 x 1 x 16mm, Cl 8.8 5
