Case 170FG (POCLAIN EXCAVATOR W/ELECTRIC MOTOR (75KW 380V) (1/85-12/92))

CRAWLER EXCAVATORS Case 170FG
/case/170FG/m85/s-238.html / No Description / COWLING

Select section

Subsection

Unit

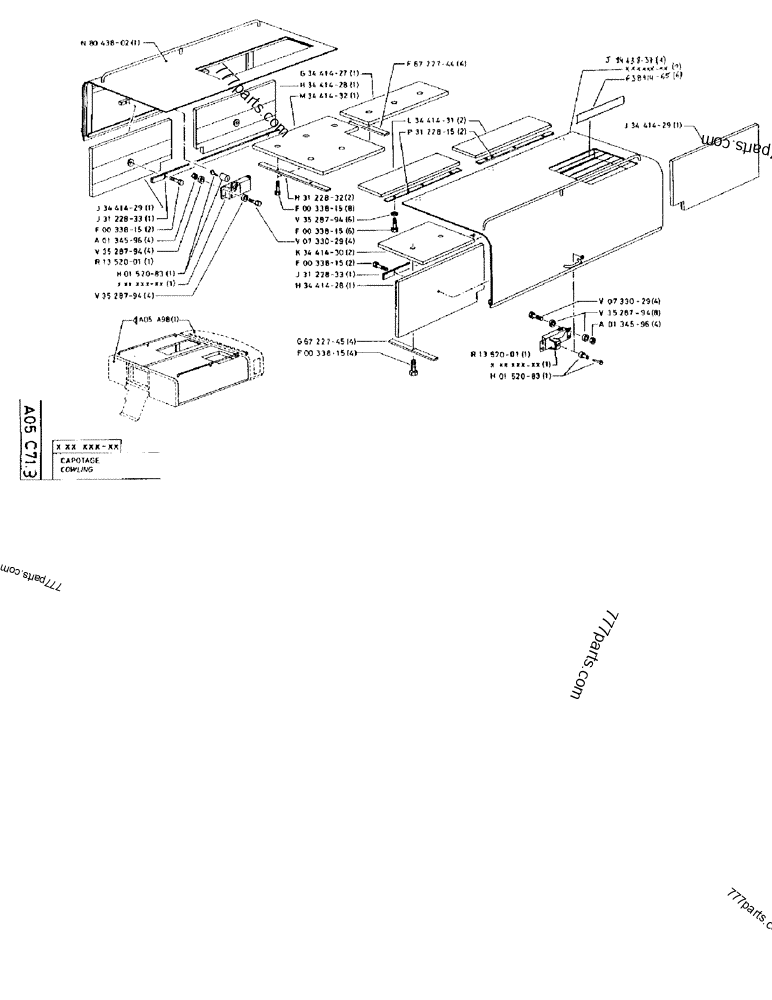

Part diagram COWLING - CRAWLER EXCAVATORS Case 170FG (POCLAIN EXCAVATOR W/ELECTRIC MOTOR (75KW 380V) (1/85-12/92)) | 777parts.com
# Part No. Description Qty
N8***02 SHUTTER 1
J3***29 LARGE PLATE; PLATE, LARGE 1
J3***33 PLATE 1
43***27 BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8 2
A1***96 SAFETY NUT 4
V3***94 WASHER 4
R1***01 LOCK ASSY 1
H1***83 LOCK, CYLINDER; LOCK-CYLINDER 1
XX***XX 1
V3***94 WASHER 4
A5***98 1
G3***27 LARGE PLATE; PLATE, LARGE 1
H3***28 LARGE PLATE; PLATE, LARGE 1
M3***32 LARGE PLATE; PLATE, LARGE 1
H3***32 PLATE 2
43***27 BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8 8
V3***94 WASHER 6
43***27 BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8 6
43***28 BOLT,M8 x 1.25 x 30mm, Cl 8.8 4
K3***30 LARGE PLATE; PLATE, LARGE 2
43***27 BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8 2
J3***33 PLATE 1
H3***28 LARGE PLATE; PLATE, LARGE 1
G6***45 PLATE 4
43***27 BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8 4
F6***44 PLATE 4
L3***31 LARGE PLATE; PLATE, LARGE 2
P3***15 PLATE; SPARE PART 2
R1***01 LOCK ASSY 1
XX***XX 1
H1***83 LOCK, CYLINDER; LOCK-CYLINDER 1
J1***37 1
XX***XX 1
F3***65 FOAM 6
J3***29 LARGE PLATE; PLATE, LARGE 1
43***28 BOLT,M8 x 1.25 x 30mm, Cl 8.8 4
V3***94 WASHER 8
A1***96 SAFETY NUT 4
