Case 170FG (POCLAIN EXCAVATOR W/ELECTRIC MOTOR (75KW 380V) (1/85-12/92))

CRAWLER EXCAVATORS Case 170FG
/case/170FG/m85/s-238.html / No Description / HYDRAULIC CIRCUIT

Select section

Subsection

Unit

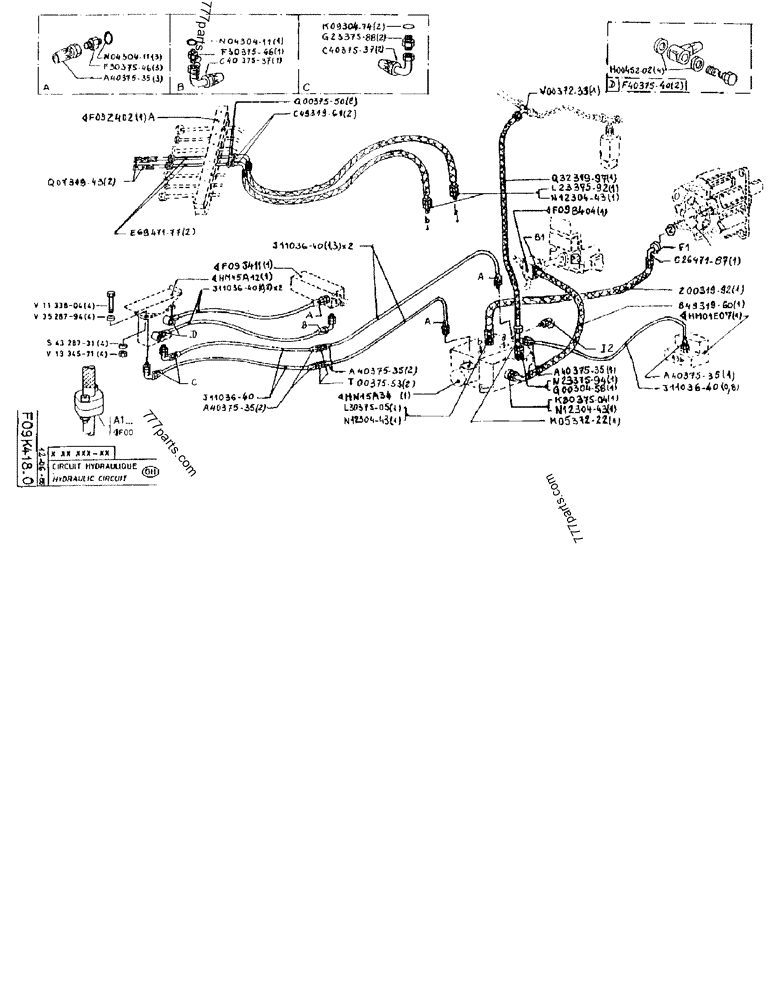

Part diagram HYDRAULIC CIRCUIT - CRAWLER EXCAVATORS Case 170FG (POCLAIN EXCAVATOR W/ELECTRIC MOTOR (75KW 380V) (1/85-12/92)) | 777parts.com
# Part No. Description Qty
N4***11 O-RING 3
F3***46 UNION 3
A4***35 END FITTING 3
N4***11 O-RING 1
F3***46 UNION 1
C4***37 END FITTING 1
K9***74 O-RING 2
G2***88 UNION 2
C4***37 END FITTING 2
H4***02 WASHER, SEALING; SEAL WASHER 4
F4***40 FITTING 2
F9***02 1
Q7***43 HOSE 2
E6***77 PIPE 2
V1***04 SCREW 4
V3***94 WASHER 4
S4***31 WASHER 4
V1***71 NUT 4
Q3***50 UNION 2
C4***61 HOSE 2
F9***11 1
HM***12 1
J1***40 PIPE
A4***35 END FITTING 2
A4***35 END FITTING 2
T3***53 UNION 2
HN***34 1
L3***05 FITTING 1
N1***43 O-RING,23.47MM ID x 2.62MM OD 1
V3***33 TEE; C|CASE : BUSHING - ORDER THE REFERENCE ....... 1 VIBRO2000 POCLAIN : TEE - PART NOT LONGER AVAILABLE ....... 1 NLS 1
Q3***97 HOSE 1
L2***92 UNION 1
N1***43 O-RING,23.47MM ID x 2.62MM OD 1
F9***04 1
A4***35 END FITTING 1
N2***94 FITTING 1
G3***58 O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro 1
K3***04 UNION 1
N1***43 O-RING,23.47MM ID x 2.62MM OD 1
M5***22 TEE 1
C2***87 PIPE 1
Z3***92 HOSE 1
B4***60 HOSE 1
HM***07 1
A4***35 END FITTING 1
J1***40 PIPE
F
