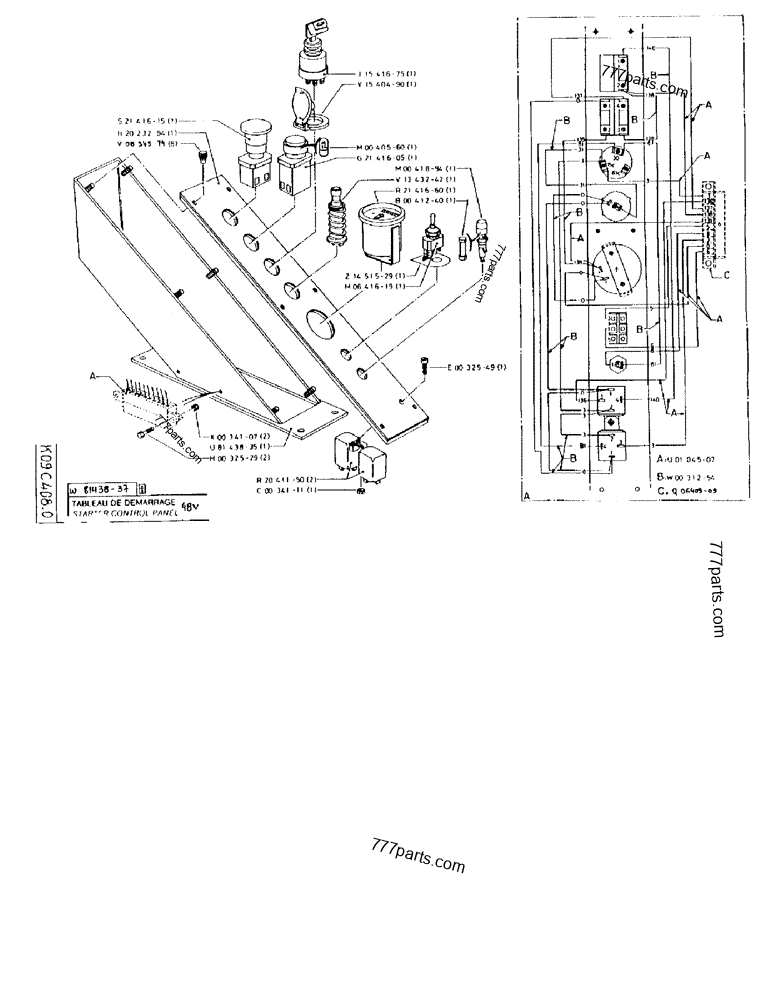

Part diagram STARTER CONTROL PANEL 48V - CRAWLER EXCAVATORS Case 170FG (POCLAIN EXCAVATOR W/ELECTRIC MOTOR (75KW 380V) (1/85-12/92)) | 777parts.com
# Part No. Description Qty
S2***15 SWITCH 1
H2***94 LARGE PLATE; SPARE PART 1
V8***74 SAFETY NUT 6
82***04 NUT,M4, Cl 8 2
U8***35 PANEL, INSTRUMENTS; SPARE PART 1
H3***29 SCREW,Hex, M4 x 16; C|FORTSCHRITT (NEUSTADT) ....... 1 NLS POCLAIN ORDER/CDER/BESTELLE ....... 1 PH32529 2
R2***50 RELAY,24V, 50A 2
15***21 NUT,Hex, M6, 5.20mm High, Cl 10 1
J1***75 SWITCH 1
V1***90 COVER 1
M4***60 LAMP 1
G2***05 PUSH BUTTON 1
M4***94 CASE 1
V1***42 CIGAR LIGHTER 1
R2***60 METER 1
B4***40 FUSE 1
Z1***29 TAG; SPARE PART 1
PM***19 REVERSER 1
E3***49 SCREW,Hex, M6 x 16mm 1
U1***07 CABLE
W3***54 ELECTRICAL WIRE; WIRE
Q6***09 CONNECTION,ELECTRIC
