Case 170FG (POCLAIN EXCAVATOR W/ELECTRIC MOTOR (75KW 380V) (1/85-12/92))

CRAWLER EXCAVATORS Case 170FG
/case/170FG/m85/s-238.html / No Description / WINDSHIELD WASHER - WINDSHIELD WIPER

Select section

Subsection

Unit

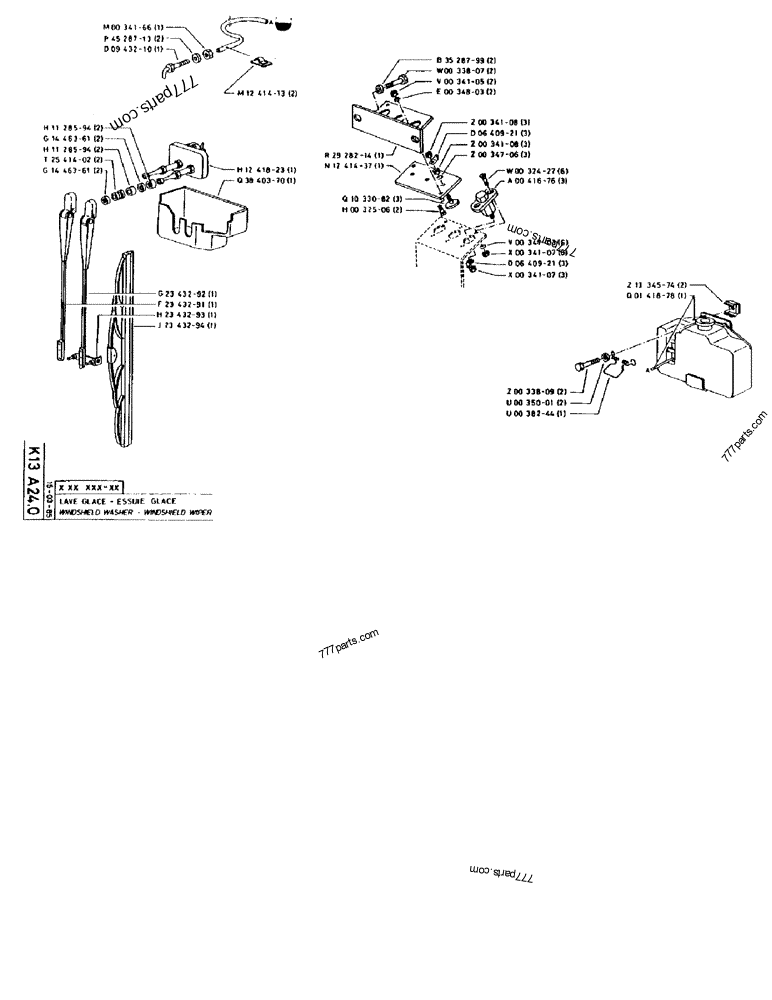

Part diagram WINDSHIELD WASHER - WINDSHIELD WIPER - CRAWLER EXCAVATORS Case 170FG (POCLAIN EXCAVATOR W/ELECTRIC MOTOR (75KW 380V) (1/85-12/92)) | 777parts.com
# Part No. Description Qty
10***16 NUT,M10 x 1.5, Cl 8 1
P4***13 WASHER 2
D9***10 JET 1
H1***94 WASHER 2
G1***61 WASHER 2
H1***94 WASHER 2
T2***02 GROMMET 2
G1***61 WASHER 2
M1***13 CLIP,ELECTRICAL 2
H1***23 WIPER MOTOR; MOTOR, WIPER 1
Q3***70 HOUSING 1
G2***92 ARM 1
F2***91 ARM 1
H2***93 BRUSH HOLDER; HOLDER, BRUSH 1
J2***94 WIPER BLADE; BLADE, WIPER 1
R2***14 SUPPORT 1
N1***37 RUBBER INSULATOR 1
Q1***82 SCREW 3
H3***06 SCREW,M3 x 12mm, Cl 3.6 2
B3***99 WASHER 2
86***86 BOLT,Hex, M6 x 1 x 25mm, Cl 8.8 2
86***12 NUT,M3, Cl 8 2
E3***03 WASHER; C|CASE : BRACKET - PART NOT LONGER AVAILABLE ....... 1 NLS POCLAIN : WASHER - ORDER THE REFERENCE ....... 1 P0034803E 2
Z3***08 NUT 3
D6***21 CONNECTION 3
Z3***08 NUT 3
Z3***06 WASHER 3
W3***27 SCREW,Sl Flat Csk Hd, M4 x 80mm 6
A4***76 HOLE PLUG BUTTON,13/32" 3
V3***03 WASHER 6
82***04 NUT,M4, Cl 8 6
D6***21 CONNECTION 3
82***04 NUT,M4, Cl 8 3
12***00 BOLT,M6 x 20mm, Cl 8.8 2
U3***01 WASHER 2
U3***44 SPRING 1
Z1***74 NUT 2
Q1***78 WINDSHIELD WASHER; WINDSHIELD WASHER 1
