Case 170FG (POCLAIN EXCAVATOR W/ELECTRIC MOTOR (75KW 380V) (1/85-12/92))

CRAWLER EXCAVATORS Case 170FG
/case/170FG/m85/s-238.html / No Description / HEATING OPTION 380V

Select section

Subsection

Unit

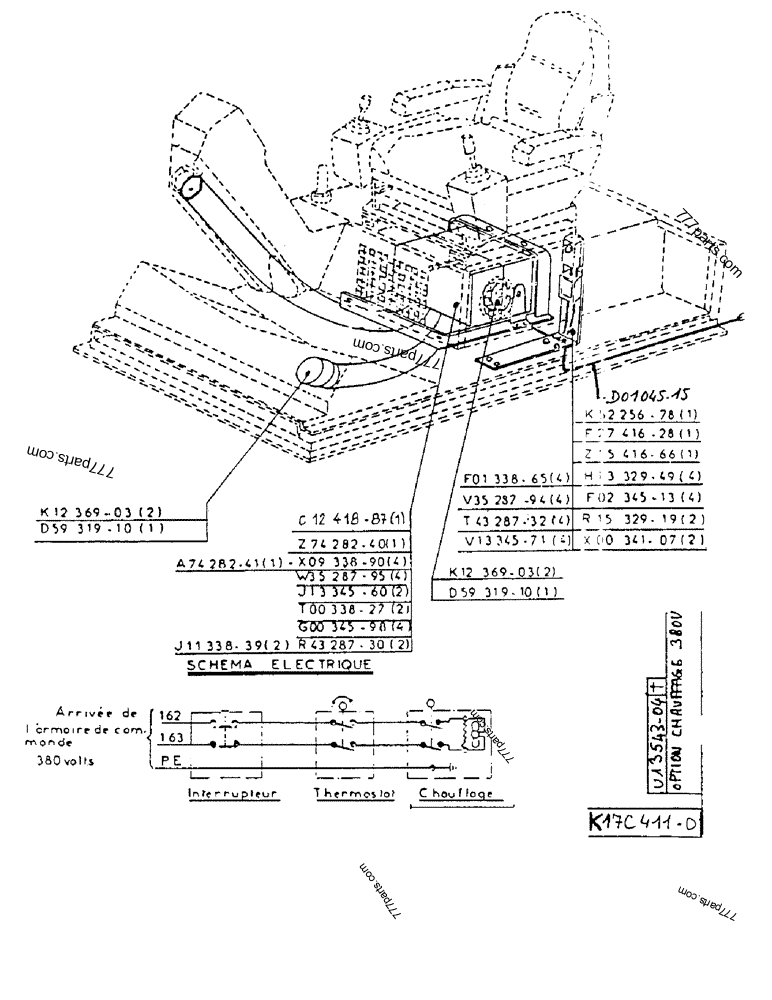

Part diagram HEATING OPTION 380V - CRAWLER EXCAVATORS Case 170FG (POCLAIN EXCAVATOR W/ELECTRIC MOTOR (75KW 380V) (1/85-12/92)) | 777parts.com
# Part No. Description Qty
K1***03 CLAMP 2
D5***10 LOOM 1
C1***87 RADIATOR 1
Z7***40 SUPPORT 1
A7***41 AIR CHANNEL 1
43***40 BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8 4
W3***95 WASHER 4
J1***60 NUT 2
11***31 BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 2
G3***98 SAFETY NUT 4
J1***39 SCREW 2
R4***30 WASHER 2
12***61 BOLT,Hex, M8 x 60mm L, Cl 8.8 4
V3***94 WASHER 4
T4***32 WASHER 4
V1***71 NUT 4
K1***03 CLAMP 2
D5***10 LOOM 1
D1***15 CABLE
K5***78 SUPPORT 1
F2***28 SWITCH 1
Z1***66 THERMOSTAT 1
H1***49 SCREW 4
F2***13 SAFETY NUT 4
R1***19 SCREW 2
82***04 NUT,M4, Cl 8 2
