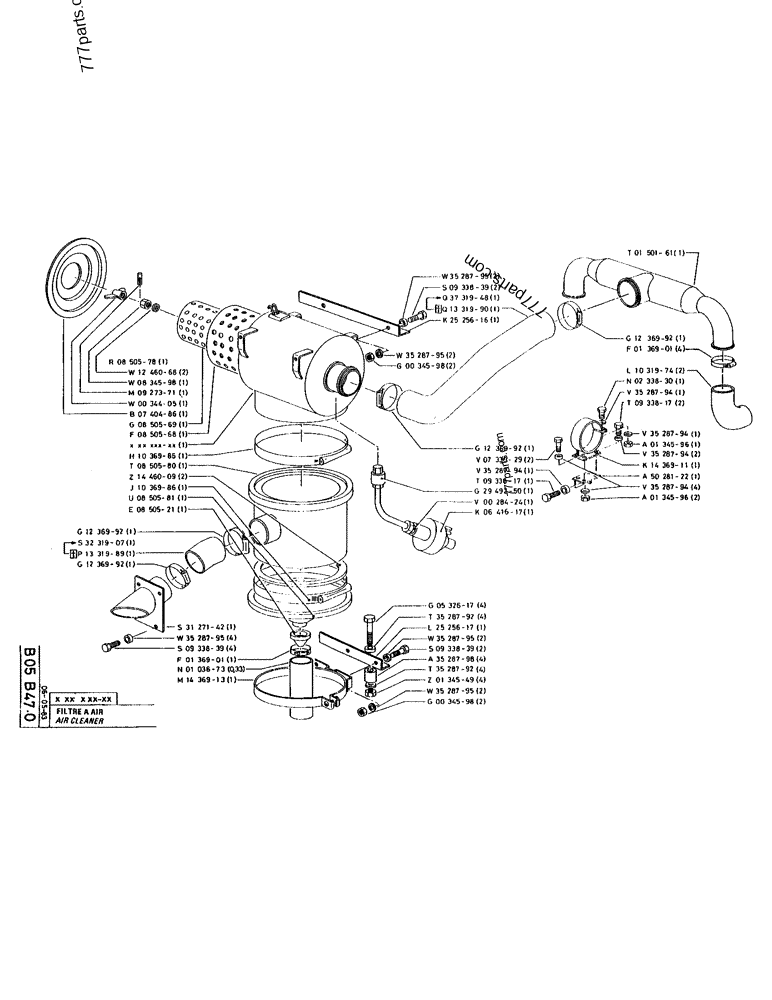

Part diagram AIR CLEANER - CRAWLER EXCAVATORS Case 220 (POCLAIN CRAWLER EXCAVATOR (1/88-12/92)) | 777parts.com
# Part No. Description Qty
W1***68 GASKET; SEAL 2
W0***98 NUT 1
M0***71 PIN 1
W0***05 WING NUT 1
B0***86 COVER PLATE 1
G0***69 CARTRIDGE 1
F0***68 CARTRIDGE 1
H1***85 CLAMP; COLLAR 1
T0***80 BODY 1
Z1***09 GASKET; SEAL 2
J1***86 CLAMP; COLLAR 1
U0***81 BOWL 1
E0***21 VALVE 1
G1***92 COLLAR CLAMP; CLAMP COLLAR 1
S3***07 AIR HOSE; HOSE 1
P1***89 LARGE HOSE; HOSE 1
G1***92 COLLAR CLAMP; CLAMP COLLAR 1
S3***42 CONDUIT; PIPE 1
W3***95 WASHER; 10.25 x 7 x 25 4
S0***39 SCREW/BOLT, M10 x 35 x 35 4
F0***01 CLAMP COLLAR 1
N0***73 PIPE
M1***13 MOUNTING CLIP 1
W3***95 WASHER; 10.25 x 7 x 25 2
S0***39 SCREW/BOLT, M10 x 35 x 35 2
Q3***48 HOSE,152.00 mm ID x 670.00 mm 1
Q1***90 LARGE HOSE; HOSE 1
K2***16 ANGLE BAR; ANGLE IRON 1
G1***92 COLLAR CLAMP; CLAMP COLLAR 1
V0***29 SCREW/BOLT, M8 x 30 x 30 2
V3***94 WASHER; 8.25 x 6 x 20 1
T0***17 SCREW/BOLT, M8 x 22 x 22 1
G2***50 PIPE; 6 x 8 1
V0***24 METAL PLASTICS 1
K0***17 INDICATOR 1
G0***17 SCREW/BOLT, 14 x 75 4
T3***92 WASHER; 14.5 x 10 x 35 4
L2***17 ANGLE BAR; ANGLE IRON 1
W3***95 WASHER; 10.25 x 7 x 25 2
S0***39 SCREW/BOLT, M10 x 35 x 35 2
A3***98 WASHER; 15.2 x 25 x 34 4
T3***92 WASHER; 14.5 x 10 x 35 4
Z0***49 SAFETY NUT 4
W3***95 WASHER; 10.25 x 7 x 25 2
G0***98 SAFETY NUT 2
T0***61 PIPE 1
G1***92 COLLAR CLAMP; CLAMP COLLAR 1
F0***01 CLAMP COLLAR 4
L1***74 HOSE,100 mm ID 2
N0***30 SCREW/BOLT, M8 x 40 1
V3***94 WASHER; 8.25 x 6 x 20 1
T0***17 SCREW/BOLT, M8 x 22 x 22 2
V3***94 WASHER; 8.25 x 6 x 20 1
A0***96 SAFETY NUT 1
V3***94 WASHER; 8.25 x 6 x 20 2
K1***11 MOUNTING CLIP 1
A5***22 SUPPORT 1
V3***94 WASHER; 8.25 x 6 x 20 4
A0***96 SAFETY NUT 2
