Case 220 (POCLAIN CRAWLER EXCAVATOR (1/88-12/92))

CRAWLER EXCAVATORS Case 220
/case/220/m117/s-278.html / 01 ENGINE / BASIC ENGINE

Select modification

Select section

Subsection

Unit

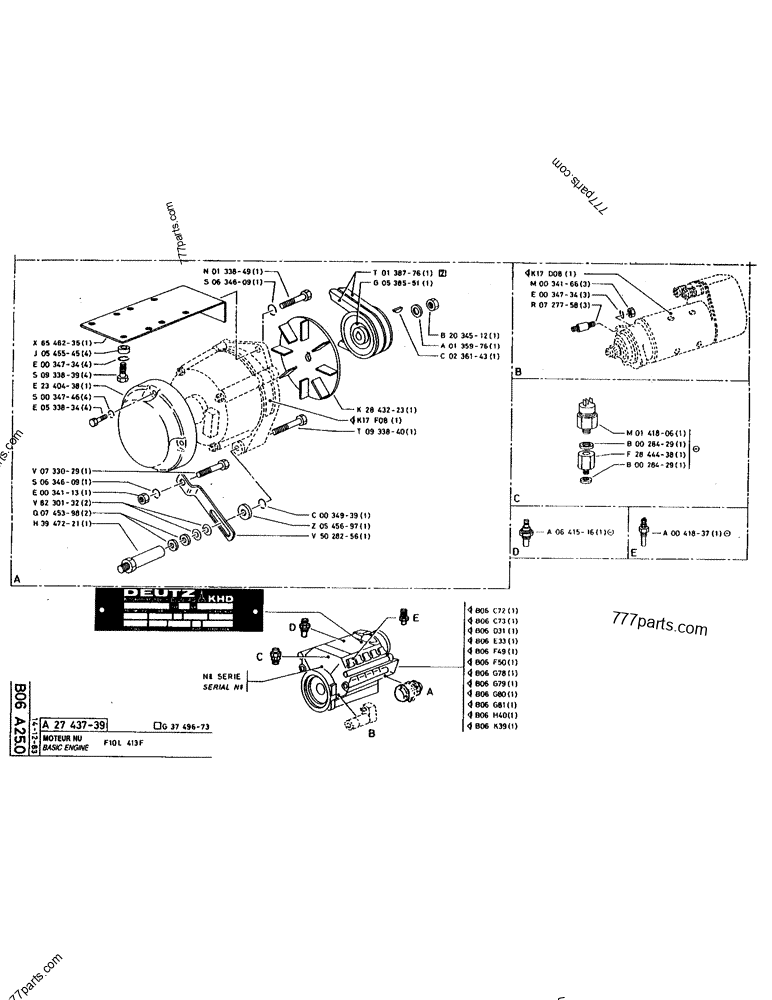

Part diagram BASIC ENGINE - CRAWLER EXCAVATORS Case 220 (POCLAIN CRAWLER EXCAVATOR (1/88-12/92)) | 777parts.com
# Part No. Description Qty
X6***35 BRACKET; SUPPORT 1
J0***45 BUSHING 4
E0***34 WASHER 4
S0***39 SCREW/BOLT, M10 x 35 x 35 4
E2***38 LIGHT FAIRING; CAP 1
S0***46 WASHER 4
E0***34 SCREW/BOLT, M5 x 16 4
V0***29 SCREW/BOLT, M8 x 30 x 30 1
S0***09 WASHER 1
E0***13 NUT 1
V8***32 BLOCK; SHIM 2
Q0***98 WASHER 2
H3***21 EXTENSION 1
N0***49 SCREW/BOLT, M8 x 80 1
S0***09 WASHER 1
T0***76 SET OF 2 BELTS, 9.5 x 975 1
G0***51 PULLEY 1
K2***23 FAN; BLADE 1
K1***08 1
T0***40 SCREW/BOLT, M12 x 35 x 35 1
C0***39 SPRING WASHER 1
Z0***97 1
V5***56 SUPPORT; BRACKET 1
B2***12 NUT; M14 x 1.5 1
A0***76 WASHER 1
C0***43 KEY 1
B0***72 1
B0***73 1
B0***31 1
B0***33 1
B0***49 1
B0***50 1
B0***78 1
B0***79 1
B0***80 1
B0***81 1
B0***40 1
B0***39 1
K1***08 1
M0***66 NUT 3
E0***34 WASHER 3
R0***58 STUD 3
M0***06 CONTACT 1
B0***29 METAL PLASTICS 1
F2***38 FITTING; CONNECTION, M14 x 1.5 1
B0***29 1
A0***16 THERMOSTAT 1
A0***37 THERMOSTAT 1
