Case 220 (POCLAIN CRAWLER EXCAVATOR (1/88-12/92))

CRAWLER EXCAVATORS Case 220
/case/220/m117/s-278.html / 02 FUEL SYSTEM / FUEL CIRCUIT

Select modification

Select section

Subsection

Unit

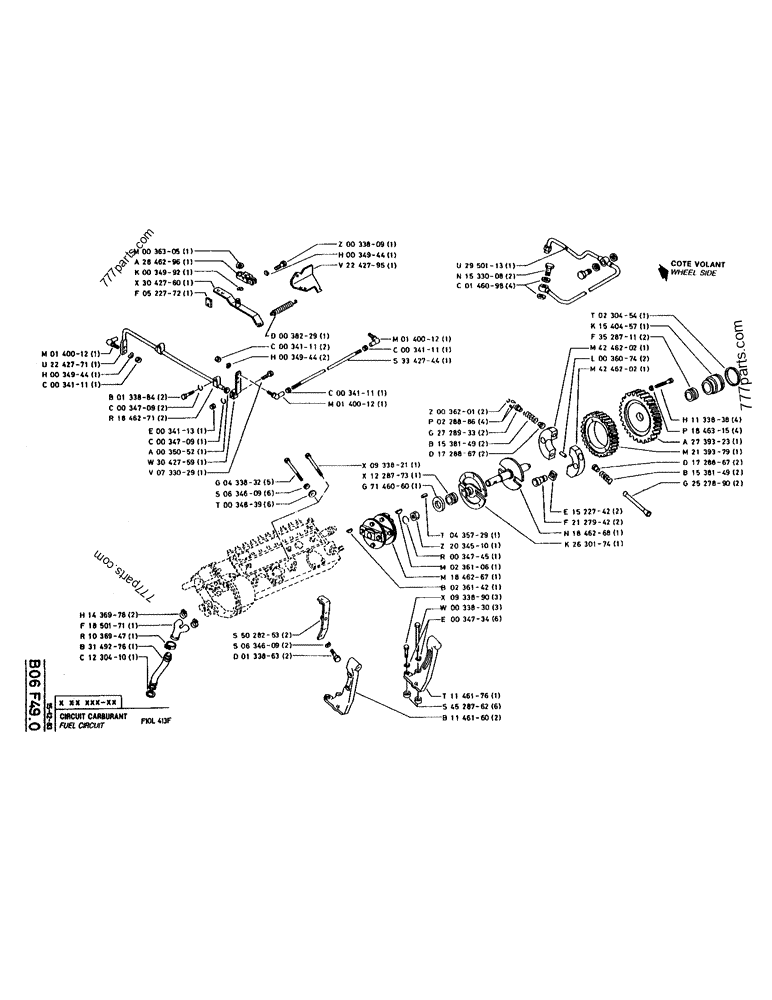

Part diagram FUEL CIRCUIT - CRAWLER EXCAVATORS Case 220 (POCLAIN CRAWLER EXCAVATOR (1/88-12/92)) | 777parts.com
# Part No. Description Qty
M0***05 LOCKING RING 1
A2***96 CYLINDER END CAP; BEARING 1
K0***92 SPRING WASHER 1
X3***60 LEVER 1
F0***72 PLATE 1
M0***12 JOINT 1
U2***71 STEM; ROD 1
H0***44 SPRING WASHER 1
C0***11 NUT 1
B0***84 SCREW/BOLT, M8 x 35 x 35 2
C0***09 WASHER 2
R1***71 ELEC. TERMINAL PIN; BLOCK 2
E0***13 NUT 1
C0***09 WASHER 1
A0***52 WASHER 1
W3***59 CONTROL LEVER 1
V0***29 SCREW/BOLT, M8 x 30 x 30 1
G0***32 SCREW/BOLT, M8 x 75 5
S0***09 WASHER 6
T0***39 WASHER 6
H1***78 CLAMP; COLLAR 2
F1***71 END FITTING 1
R1***47 CLAMP; COLLAR 1
B3***76 RETURN PIPE; PIPELINE 1
C1***10 O-RING; 3 x 16 1
S5***53 SUPPORT 2
S0***09 WASHER 2
D0***63 SCREW/BOLT, M8 x 18 2
Z0***09 SCREW/BOLT, M6 x 20 1
H0***44 SPRING WASHER 1
V2***95 LEVER 1
D0***29 SPRING 1
C0***11 NUT 2
H0***44 SPRING WASHER 2
M0***12 JOINT 1
C0***11 NUT 1
S3***44 THREADED ROD; CONTROL ROD 1
C0***11 NUT 1
M0***12 JOINT 1
X0***21 SCREW/BOLT, M8 x 75 1
X1***73 BUSHING 1
G7***60 OIL SEAL; SEAL RING 1
U2***13 PIPE 1
N1***08 BANJO BOLT; FEMALE SCREW 2
C0***98 SEAL WASHER, 10.3 x 13.4 x 1 4
Z0***01 RING 2
P0***86 4
G2***33 CUP; BOWL 2
B1***49 SPRING 2
D1***67 STOP 2
T0***29 SPLIT PIN/SAFET 1
Z2***10 NUT; M14 x 1.5 1
R0***45 WASHER 1
M0***06 KEY, 4 x 6.5 1
M1***67 COUPLING, BREAK AWAY; COUPLING 1
B0***42 KEY 1
X0***90 SCREW/BOLT, M10 x 30 x 30 3
W0***30 SCREW/BOLT, M10 x 70 3
E0***34 WASHER 6
T1***76 SUPPORT 1
S4***62 BUSHING; SLEEVE 6
B1***60 SUPPORT 2
T0***54 4 x 60 1
K1***57 CAP; COVER 1
F3***11 COVER; PLATE 2
M4***02 BALANCING WEIGHT; BALANCIN WEIGH 1
L0***74 SPLIT PIN/SAFET, 6 x 18 2
M4***02 BALANCING WEIGHT; BALANCIN WEIGH 1
H1***38 SCREW; /BOLT, M8 x 50 4
P1***15 WASHER 4
A2***23 PINION 1
M2***79 PINION 1
D1***67 STOP 2
B1***49 SPRING 2
G2***90 LARGE PIN; PIN 2
E1***42 PLATE 2
--***-- PIN 2
N1***68 SHAFT 1
K2***74 PLATE, THRUST; FLANGE 1
