Case 220 (POCLAIN CRAWLER EXCAVATOR (1/88-12/92))

CRAWLER EXCAVATORS Case 220
/case/220/m117/s-278.html / 01 ENGINE / OIL PUMP, FILTER, OIL COOLER

Select modification

Select section

Subsection

Unit

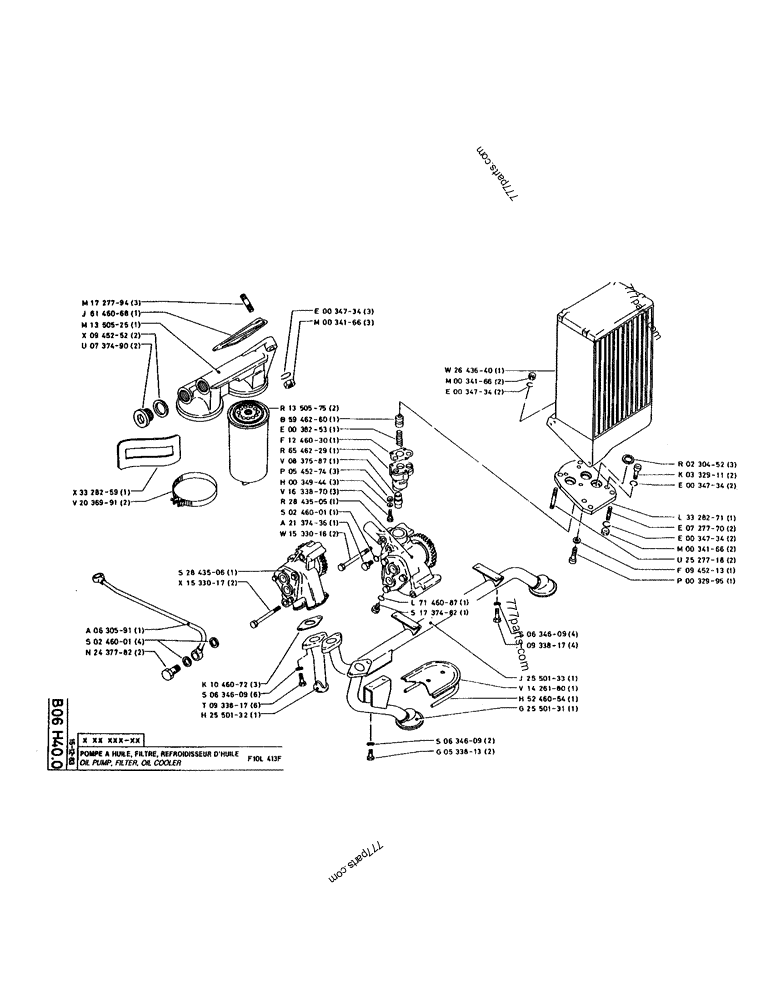

Part diagram OIL PUMP, FILTER, OIL COOLER - CRAWLER EXCAVATORS Case 220 (POCLAIN CRAWLER EXCAVATOR (1/88-12/92)) | 777parts.com
# Part No. Description Qty
M1***94 STUD; SN4 x 35 3
J6***68 GASKET; SEAL 1
M1***25 SUPPORT 1
X0***52 SEAL WASHER, 22 x 27 2
U0***90 PLUG, M22 x 1.5 2
X3***59 HOOD; PLATE 1
V2***91 COLLAR CLAMP; CLAMP COLLAR 2
S2***06 PUMP 1
X1***17 SCREW; /BOLT, BM10 x 75 2
A0***91 PIPE 1
S0***01 COPPER SEAL, 8.2 x 11.4 4
N2***82 SCREW; /BOLT 2
E0***34 WASHER 3
M0***66 NUT 3
R1***75 CARTRIDGE 2
B5***60 ELEMENT 1
E0***53 SPRING 1
F1***30 GASKET; SEAL 1
R6***29 BODY 1
V0***87 CONNECTION 1
P0***74 WASHER 3
H0***44 SPRING WASHER 3
V1***70 SCREW; /BOLT, M6 x 55 x 55 3
R2***05 PUMP 1
S0***01 COPPER SEAL, 8.2 x 11.4 1
A2***36 PLUG 1
W1***16 SCREW; /BOLT, BM10 x 90 2
K1***72 GASKET; SEAL 3
S0***09 WASHER 6
T0***17 SCREW/BOLT, M8 x 22 x 22 6
H2***32 RETURN PIPE; PIPELINE 1
W2***40 COOLER ASSY.; COOLER 1
M0***66 NUT 2
E0***34 WASHER 2
L7***87 SEAL; BUSHING 1
S1***82 PLUG 1
S0***09 WASHER 4
T0***17 SCREW/BOLT, M8 x 22 x 22 4
J2***33 RETURN PIPE; PIPELINE 1
V1***80 HOOD; PLATE 1
H5***54 GASKET; SEAL 1
G2***31 RETURN PIPE; PIPELINE 1
S0***09 WASHER 2
G0***13 SCREW/BOLT, M8 x 16 2
R0***52 3 x 25 3
K0***11 SCREW/BOLT, M10 x 35 x 35 2
E0***34 WASHER 2
L3***71 LARGE PLATE; PLATE 1
E0***70 STUD 1
E0***70 STUD 2
E0***34 WASHER 2
M0***66 NUT 2
U2***18 STUD 2
F0***13 COPPER SEAL 1
P0***95 SCREW/BOLT, M10 x 16 1
