Case 220 (POCLAIN CRAWLER EXCAVATOR (1/88-12/92))

CRAWLER EXCAVATORS Case 220
/case/220/m117/s-278.html / 07 HYDRAULIC SYSTEM / PILOT CIRCUIT

Select modification

Select section

Subsection

Unit

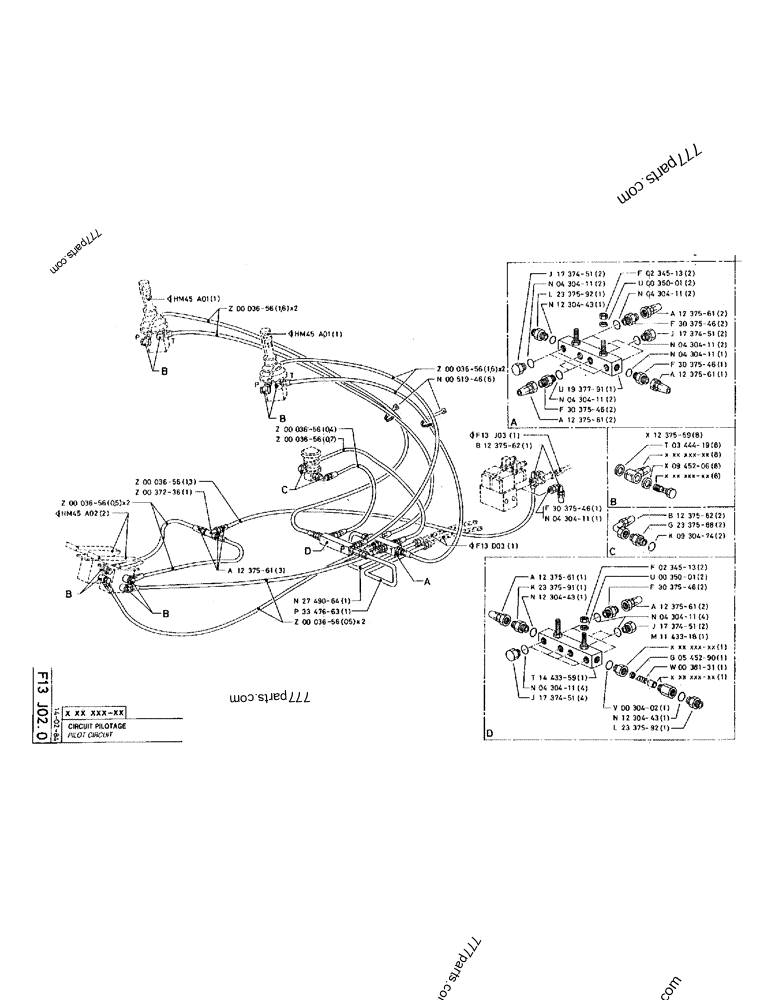

Part diagram PILOT CIRCUIT - CRAWLER EXCAVATORS Case 220 (POCLAIN CRAWLER EXCAVATOR (1/88-12/92)) | 777parts.com
# Part No. Description Qty
HM***01 1
Z0***56 PIPE
HM***01 1
Z0***56 PIPE
Z0***56 PIPE
Z0***56 PIPE
Z0***36 T PIECE
Z0***56 PIPE
HM***02 2
A1***61 END FITTING 3
Z0***56 PIPE
N0***46 COLLAR 6
N2***64 PIPE; 11 x 17 1
P3***63 PIPE; 11 x 17 1
Z0***56 PIPE 5
J1***51 PLUG 2
N0***11 SEAL, 2.62 x 18.72-80 2
L2***92 UNION 1
N1***43 O-RING,23.47MM ID x 2.62MM OD; SEAL, 2.62 x 23.47-80 1
U1***91 BLOCK ASSY.; BLOCK, 9 x 17G, 2 x 21G 1
N0***11 SEAL, 2.62 x 18.72-80 2
F3***46 UNION 2
A1***61 END FITTING 2
F3***46 UNION 1
N0***11 SEAL, 2.62 x 18.72-80 1
F1***03 1
B1***62 END FITTING 1
F1***03 1
A1***61 END FITTING 1
K2***91 UNION 1
N1***43 O-RING,23.47MM ID x 2.62MM OD; SEAL, 2.62 x 23.47-80 1
T1***59 BLOCK ASSY.; BLOCK, 7 x 17G, 2 x 21G 1
N0***11 SEAL, 2.62 x 18.72-80 4
J1***51 PLUG 4
F0***13 SAFETY NUT 2
U0***01 WASHER 2
N0***11 SEAL, 2.62 x 18.72-80 2
A1***61 END FITTING 2
F3***46 UNION 2
J1***51 PLUG 2
N0***11 SEAL, 2.62 x 18.72-80 2
N0***11 SEAL, 2.62 x 18.72-80 1
F3***46 UNION 1
A1***61 END FITTING 1
X1***59 END FITTING 8
T0***19 SEAL WASHER, 13.2 x 17.9 x 1.5 8
X0***06 SEAL WASHER, 14 x 18.5 x 1.5 8
B1***62 END FITTING 2
G2***88 UNION 2
K0***74 SEAL, 2.62 x 15.54-80 2
F0***13 SAFETY NUT 2
U0***01 WASHER 2
F3***46 UNION 2
A1***61 END FITTING 2
N0***11 SEAL, 2.62 x 18.72-80 4
J1***51 PLUG 2
M1***18 BLOCK ASSY.; BLOCK 1
G0***90 SEAL, 28 x 23 x 2.5 1
W0***31 SPRING 1
V0***02 1
N1***43 O-RING,23.47MM ID x 2.62MM OD; SEAL, 2.62 x 23.47-80 1
L2***92 UNION 1
