Case 220 (POCLAIN CRAWLER EXCAVATOR (1/88-12/92))

CRAWLER EXCAVATORS Case 220
/case/220/m117/s-278.html / 07 HYDRAULIC SYSTEM / PILOT CIRCUIT

Select modification

Select section

Subsection

Unit

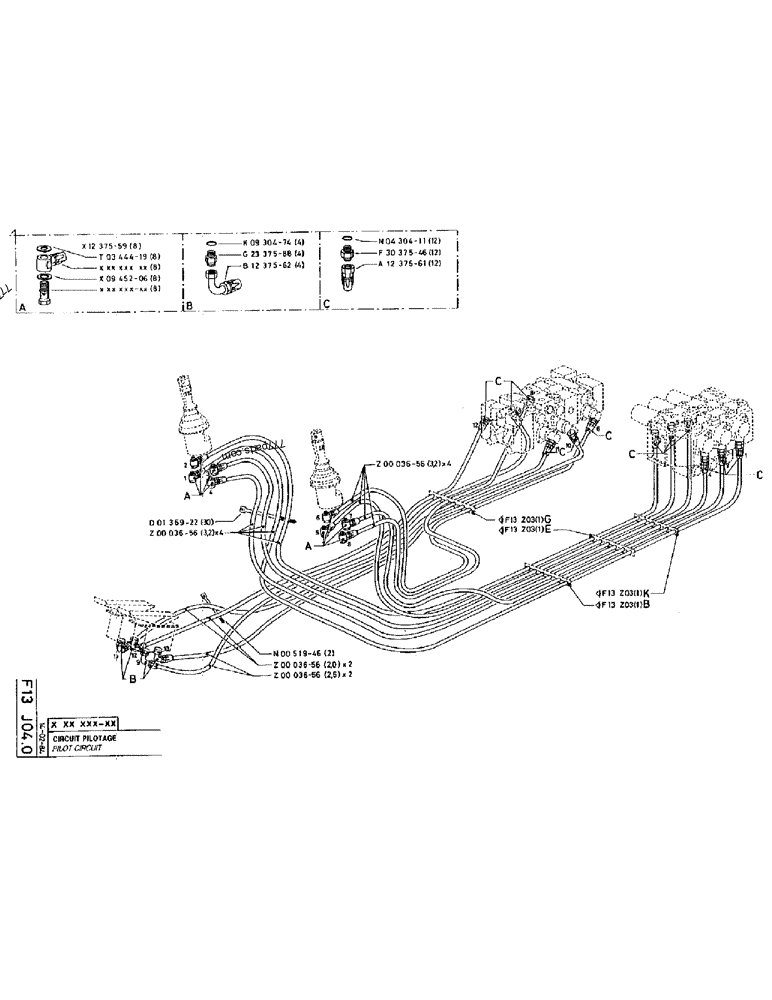

Part diagram PILOT CIRCUIT - CRAWLER EXCAVATORS Case 220 (POCLAIN CRAWLER EXCAVATOR (1/88-12/92)) | 777parts.com
# Part No. Description Qty
X1***59 END FITTING 8
T0***19 SEAL WASHER, 13.2 x 17.9 x 1.5 8
X0***06 SEAL WASHER, 14 x 18.5 x 1.5 8
K0***74 SEAL, 2.62 x 15.54-80 4
G2***88 UNION 4
B1***62 END FITTING 4
D0***22 COLLAR 30
Z0***56 PIPE
N0***46 COLLAR 2
Z0***56 PIPE
Z0***56 PIPE
N0***11 SEAL, 2.62 x 18.72-80 12
F3***46 UNION 12
A1***61 END FITTING 12
Z0***56 PIPE 32
F1***03 1
F1***03 1
F1***03 1
F1***03 1
