Case 220 (POCLAIN CRAWLER EXCAVATOR (1/88-12/92))

CRAWLER EXCAVATORS Case 220
/case/220/m117/s-278.html / 07 HYDRAULIC SYSTEM / VALVE ASSEMBLY

Select modification

Select section

Subsection

Unit

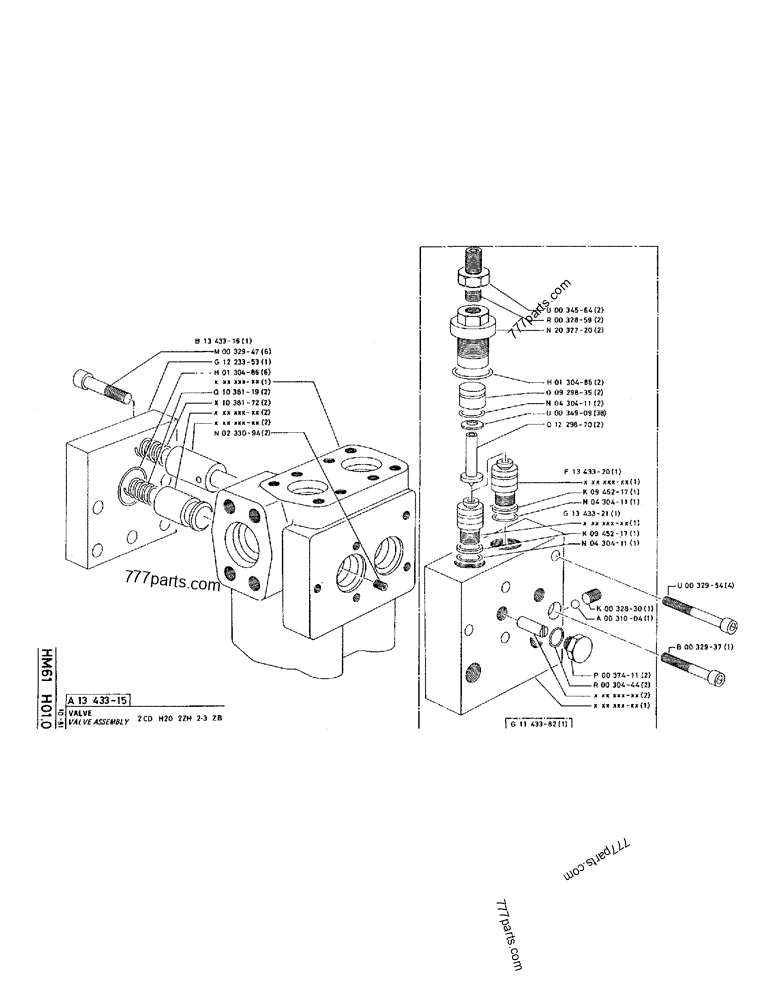

Part diagram VALVE ASSEMBLY - CRAWLER EXCAVATORS Case 220 (POCLAIN CRAWLER EXCAVATOR (1/88-12/92)) | 777parts.com
# Part No. Description Qty
B1***16 SHIN; BRACKET 1
M0***47 SCREW/BOLT, M12 x 45 6
G1***53 LARGE PLATE; PLATE 1
H0***86 SEAL, 2.62 x 34.59-80 6
Q1***19 COMPRESSION SPRING; COMPRESSION SPR 2
X1***72 COMPRESSION SPRING; COMPRESSION SPR 2
N0***94 SCREW/BOLT, M6 x 6 2
U0***64 NUT 2
R0***59 SCREW/BOLT, M16 x 50 2
N2***20 CAP; COVER 2
H0***86 SEAL, 2.62 x 34.59-80 2
Q0***35 PUSHER 2
N0***11 SEAL, 2.62 x 18.72-80 2
U0***09 SPRING WASHER, 22.5 x 11.2 38
Q1***70 GUIDE 2
F1***20 VALVE POPPET; VALVE 1
K0***17 JOINT 1
N0***11 SEAL, 2.62 x 18.72-80 1
G1***21 VALVE POPPET; VALVE 1
K0***17 JOINT 1
N0***11 SEAL, 2.62 x 18.72-80 1
K0***30 SCREW/BOLT, M10 x 10 1
A0***04 BALL 1
P0***11 PLUG 2
R0***44 2.5 x 15 2
G1***82 SHIN; BRACKET 1
U0***54 SCREW/BOLT, M10 x 65 4
B0***37 SCREW/BOLT, M10 x 50 1
