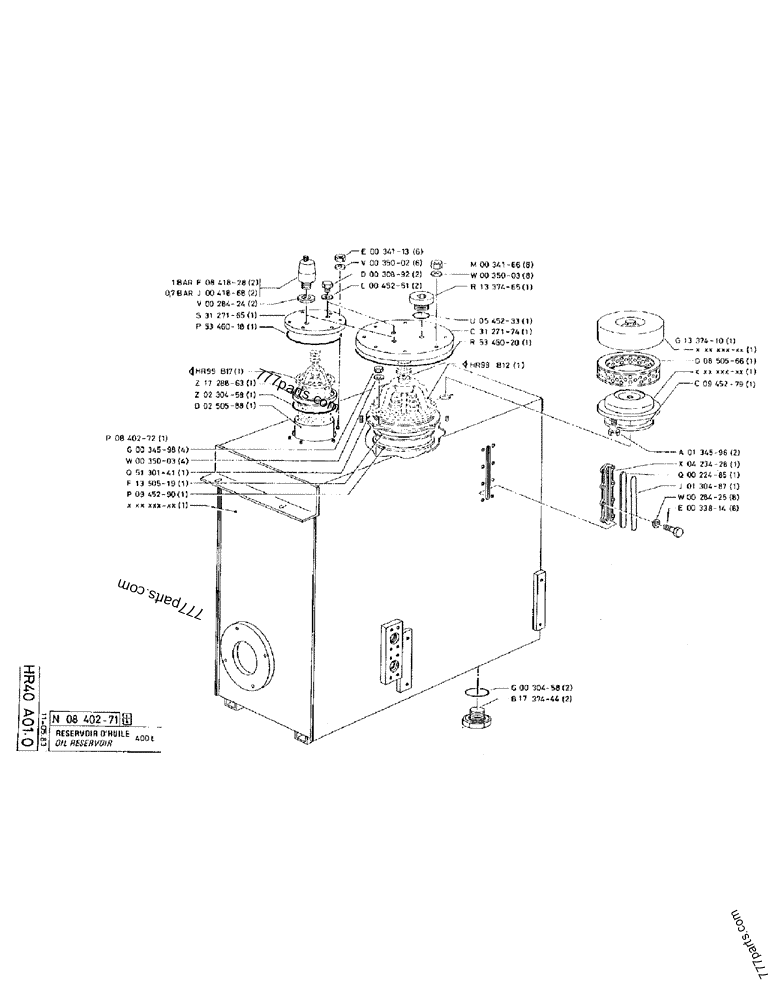

Part diagram OIL RESERVOIR - CRAWLER EXCAVATORS Case 220 (POCLAIN CRAWLER EXCAVATOR (1/88-12/92)) | 777parts.com
# Part No. Description Qty
F0***28 CONTACT 2
J0***68 CONTACT 2
V0***24 METAL PLASTICS 2
S3***65 COVER; PLATE 1
P5***18 SEAL, RUBBER; RUBBER SEAL 1
HR***17 1
Z1***63 RING; BUSHING 1
Z0***59 SEAL, 5.7 x 139.3-70 1
D0***88 COVER 1
P0***72 OIL RESERVOIR 1
G0***98 SAFETY NUT 4
W0***03 WASHER 4
Q5***41 SUPPORT 1
F1***19 FILTER COVER; COVER 1
P0***90 SEAL WASHER, 228 x 256 x 5.5 1
E0***13 NUT 6
V0***02 WASHER 6
D0***92 SCREW/BOLT 2
L0***51 METAL PLASTICS 2
M0***66 NUT 8
W0***03 WASHER 8
R1***65 PLUG; 39 x 1.5 1
U0***33 SEAL, 39.2 x 44 x 3 1
C3***74 COVER; PLATE 1
R5***20 RUBBER SEAL; RUBBER SEAL 1
HR***12 1
G0***58 SEAL, 2.62 x 29.82-80 2
B1***44 PLUG 2
G1***10 PLUG 1
D0***66 CARTRIDGE 1
C0***79 SEAL 1
A0***96 SAFETY NUT 2
X0***28 BODY 1
Q0***85 WARNING LIGHT 1
J0***87 5 x 131 1
W0***25 METAL PLASTICS 8
E0***14 SCREW/BOLT, M8 x 20 8
