Case 330 (ARTICULATED TRUCK (280HP - ZF210) (EUROPE) (4/03-12/03))

DUMP TRUCKS Case 330
/case/330/m143/s-315.html / 09 Implement / Hydraulics / Frame / Brakes / DISTRIBUTOR
Serial Number : 325 EU Until 455274 / 330 EU Until 455175, 455177 To 455246 / 330NA Until HHD0000242

Select section

Subsection

Unit

17
16
17
19
26
24
3
21
4
7
19
13
14
8
5
6
7
23
10
20
11
12
15
1
5
27
21
25
20
6
16
9
19
24
18
4
22
14
28

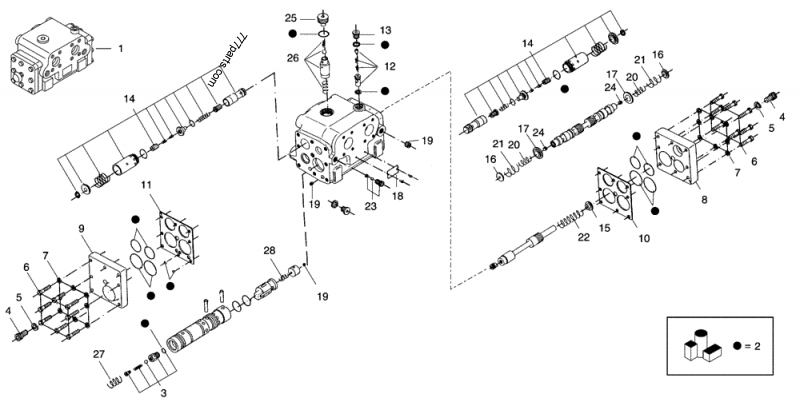

Part diagram DISTRIBUTOR - DUMP TRUCKS Case 330 (ARTICULATED TRUCK (280HP - ZF210) (EUROPE) (4/03-12/03)) | 777parts.com
# Part No. Description Qty
1 89***27 CONTROL VALVE 1
--***-- Include : 2 to 28
2 89***37 SEAL KIT 1
3 89***38 VALVE POPPET 1
4 89***39 BOLT 2
5 89***40 LOCK WASHER 2
6 89***41 BOLT 16
7 89***42 LOCK WASHER 16
8 89***43 COVER 1
9 89***44 COVER 1
10 89***45 PLATE 1
11 89***46 PLATE 1
12 89***47 SAFETY VALVE 1
13 89***48 PLUG 1
14 89***49 HYDRAULIC VALVE 2
15 89***50 PLUG 1
16 89***51 PLUG 2
17 89***52 GUIDE 2
18 NSS NOT SOLD SEPARAT 1
19 89***54 BREATHER 3
20 89***55 SPRING 2
21 89***56 SPRING 2
22 89***57 SPRING 1
23 NSS NOT SOLD SEPARAT 1
24 89***59 BREATHER 2
25 89***60 PLUG 1
26 89***61 HYDRAULIC VALVE 1
27 89***62 SPRING 1
28 89***63 SPRING 1
