Case 420CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11))

COMPACT TRACK LOADERS Case 420CT
/case/420CT/m170/s-357.html / 02 ENGINE / ENGINE - EXHAUST SYSTEM

Select modification

COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

• COMPACT TRACK LOADER - BSN N7M455401 (2/06-12/07)
• COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

Select section

All

• All

Subsection

All

• All

Unit

Select group

6

10

8

11

5

1

9

3

2

7

4

Subscribe to get access to part numbers.

Unlock Access

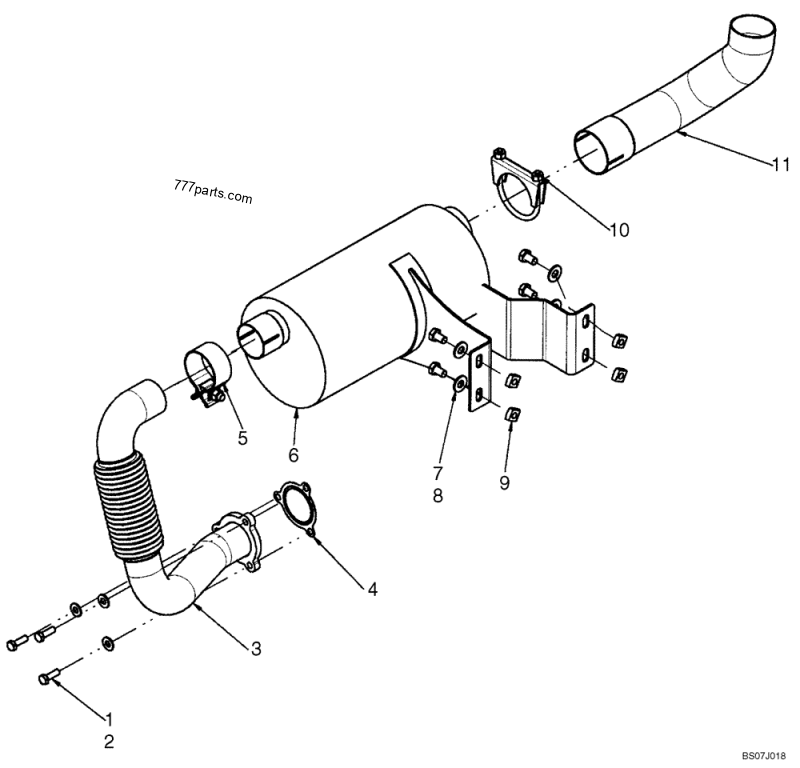

#	Part No.	Description	Qty
1	43***27	BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8	7
2	86***63	WASHER,9mm ID x 20mm OD x 1.6mm Thk	7
3	87***96	EXHAUST SYSTEM PIPE; Flexible Exhaust Coupler	1
4	87***95	GASKET,0.4mm Thk	1
5	87***90	CLAMP	1
6	87***88	MUFFLER	1
7	30***83	BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd	4
8	86***53	WASHER,11mm ID x 24mm OD x 2mm Thk	5
9	23***A1	SQUARE NUT,M10 x 1.5mm, Cl 8	4
10	87***95	CLAMP,68mm ID, Muffler	1
11	87***90	EXHAUST SYSTEM PIPE; Exhaust Tail Pipe BSN 413505	1
11	REF	INSTRUCTION; Exhaust Tail Pipe ASN 413504 See Fig 09-20(02)	1
12	87***27	MUFFLER; Muffler Wrap, Europe; Not Illustrated	1
13	87***99	SPRING; Stainless Ties, Use To Secure Muffler Wrap; Not Illustrated	5
