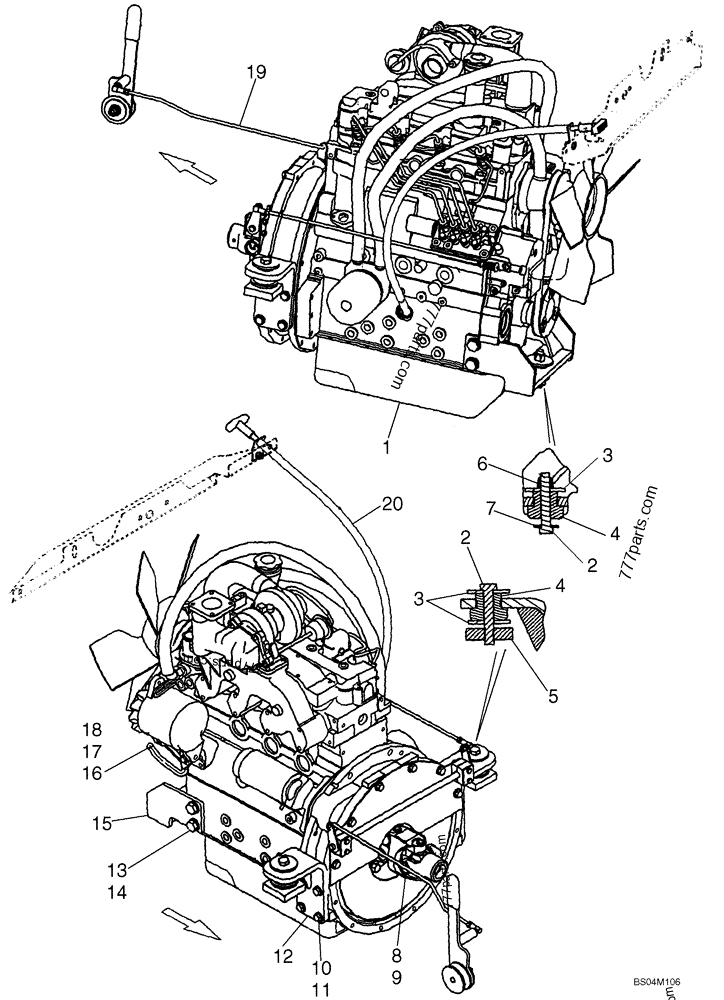

| 1 |
87***13 |
ENGINE |
1 |
| 1A |
SB***96 |
ENGINE; Long Block Service Engine; Does Not Include Flywheel; Damper Disk; Starter; Cooling Fan; Fan Belt; Fan Pulley; Fan Holder; Alternator; Stay; Adjusting Plate; Stop Solenoid; Connector, Glow Plug; Filler Pipe; Exhaust Manifold; Gasket, Exhaust Manifold |
1 |
|
SB***ER |
REMAN-REPLACEMENT EN; 420 BSN N7M466710, 420CT BSN N7M455401, Both 4 Cyl., NA, Tier 2, New Replacement Engine, N.A. Only |
1 |
|
SB***AC |
CORE-EPA ENGINE; Return Number, For N.A. Only |
|
| 1A |
SB***6R |
REMAN-REPLACEMENT EN; Remanufactured, for N.A. Only |
1 |
| 1A |
SB***6C |
CORE-REPLACEMENT ENG; Return Number, for N.A. Only |
1 |
| 2 |
87***39 |
BOLT,Hex, 1/2" - 13 x 3", Gr 5 |
3 |
| 3 |
49***39 |
WASHER,17/32" x 2 1/4" x .180" |
5 |
| 4 |
D1***85 |
MOUNTING PARTS |
3 |
| 5 |
87***50 |
PLATE |
2 |
| 6 |
88***71 |
NUT,1/2"-13, GC |
1 |
| 7 |
80***00 |
WASHER,0.56" ID x 1.38" OD x 0.11" Thk |
1 |
| 8 |
98***66 |
BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd |
4 |
| 9 |
87***92 |
JOINT ASSY.; Pump Drive |
1 |
| 10 |
49***41 |
WASHER,13/32" x 13/16" x .089", HDN |
8 |
| 11 |
88***11 |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5 |
8 |
| 12 |
87***93 |
BRACKET; Front Engine Mount |
2 |
| 13 |
87***15 |
WASHER,15.3mm ID x 28.5mm OD x 3mm Thk |
4 |
| 14 |
11***24 |
BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8 |
4 |
| 15 |
87***89 |
ENGINE MOUNT; Rear |
1 |
| 16 |
32***58 |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk |
2 |
| 17 |
12***04 |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8 |
2 |
| 18 |
86***80 |
SUPPORT; Rod |
1 |
| 19 |
REF |
INSTRUCTION; Throttle; See Figure 03-02 |
|
| 20 |
REF |
INSTRUCTION; Dipstick Assy; See Figure 02-06 |
|
