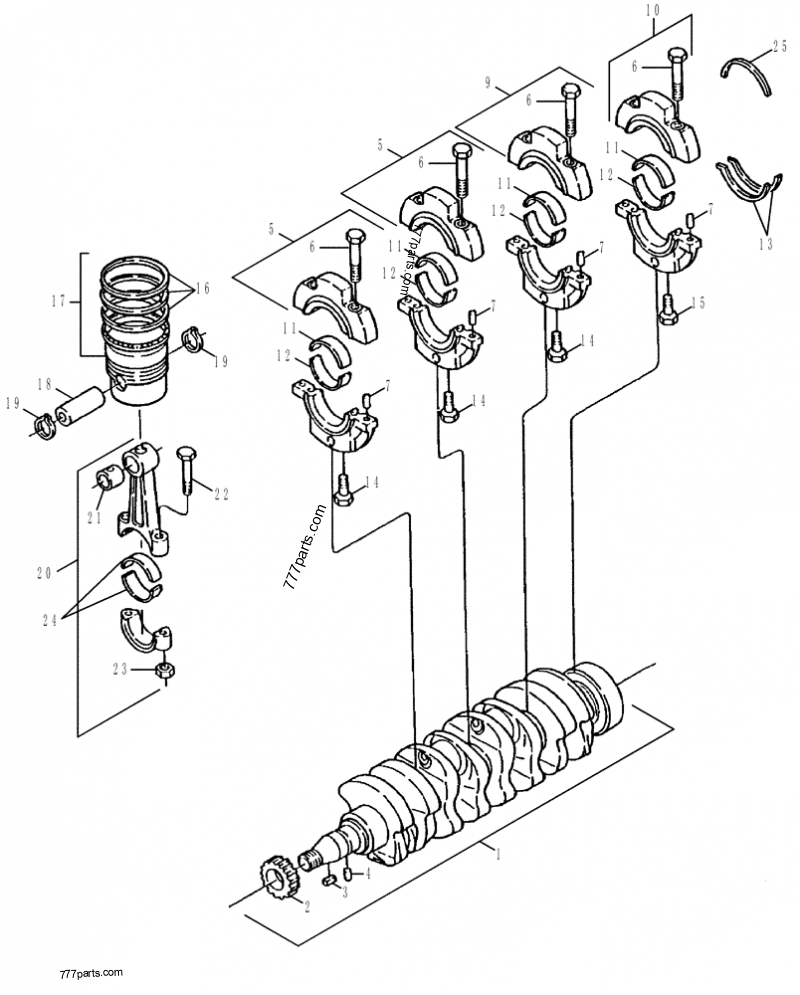

#	Part No.	Description	Qty
1	SB***50	CRANKSHAFT	1
2	SB***00	GEAR; Crankshaft	1
3	SB***08	KEY	1
4	SB***20	PIN; Dowel	1
5	SB***60	HOLDER; Bearing, Incl. Ref 6, 7	1
6	SB***06	BOLT	8
7	SB***12	DOWEL	8
8	SB***70	BEARING CAP; Bearing, Incl. Ref 6, 7	1
9	SB***80	BEARING CAP; Bearing, Incl. Ref 6, 7	1
10	SB***90	BEARING CAP; Bearing	1
11	SB***31	BEARING; Upper, Std.	4
11	SB***36	BEARING LINER,.010" U/S, Upper; (0.25mm)	4
11	SB***39	BEARING LINER,.020" U/S, Upper; (0.50mm)	4
12	SB***41	BEARING; Lower, Std.	4
12	SB***46	BEARING LINER,.010" U/S, Lower; (0.25mm)	4
12	SB***49	BEARING LINER,.020" U/S, Lower; (0.50mm)	4
13	SB***00	THRUST WASHER	2
14	SB***70	BOLT,M10 x 70	3
15	SB***60	BOLT	2
16	SB***20	PISTON RINGS KIT	4
16	SB***21	PISTON RINGS KIT; Kit, Piston Rings; Replaces SBA115104020	4
17	SB***80	PISTON ASSY	4
17	SB***81	PISTON & RINGS KIT; Piston Assy; Replaces SBA115017581	4
18	SB***20	PISTON PIN,33mm OD	4
19	SB***28	SNAP RING	8
20	SB***30	CONNECTING ROD	4
21	SB***60	BUSHING	4
22	SB***40	BOLT; Connecting Rod	8
23	SB***20	NUT	8
24	SB***51	BEARING	8
25	SB***10	THRUST WASHER	1
