Case 420CT (COMPACT TRACK LOADER - BSN N7M455401 (2/06-12/07))

COMPACT TRACK LOADERS Case 420CT
/case/420CT/m170/s-356.html / 02 ENGINE / TIMING GEAR CASE, GOVERNOR

Select modification

COMPACT TRACK LOADER - BSN N7M455401 (2/06-12/07)

• COMPACT TRACK LOADER - BSN N7M455401 (2/06-12/07)
• COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

Select section

All

• All

Subsection

All

• All

Unit

Select group

26

24

25

3

17

7

27

19

10

16

17

8

29

28

22

13

23

11

9

25

4

15

20

18

5

1

14

17

12

17

2

6

Subscribe to get access to part numbers.

Unlock Access

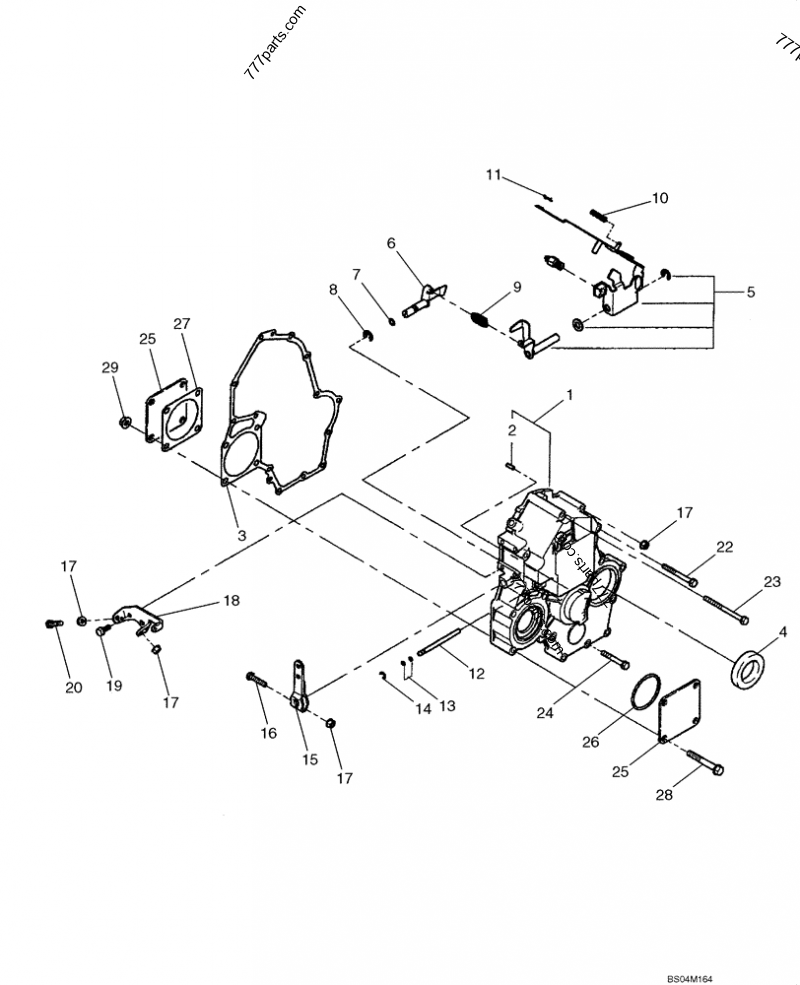

#	Part No.	Description	Qty
1	SB***80	CASE; Timing Gear, Incl. Ref 2	1
2	SB***14	PIN; Spring	1
3	SB***50	GASKET	1
4	SB***60	SEAL,M35 x 55 x 11; Oil	1
5	SB***10	LEVER	1
6	SB***70	ARM	1
7	SB***10	O-RING	1
8	SB***08	SNAP RING	2
9	SB***80	SPRING; Main	1
10	SB***60	SPRING	1
11	SB***04	SPRING; Snap	1
12	SB***41	ROD	1
13	SB***08	O-RING	2
14	SB***05	SNAP RING	1
15	SB***00	LEVER; Speed	1
16	SB***30	BOLT	1
17	SB***06	NUT	3
18	SB***20	BRACKET	1
19	SB***16	BOLT,M6 x 1 x 16, Cl 8.8	2
20	SB***64	BOLT	2
22	SB***60	BOLT	5
23	SB***80	BOLT	2
24	SB***45	CAPTIVE WASHER SCREW,Hex, M6 x 45, Cl 8.8	6
25	SB***10	COVER	2
26	SB***00	O-RING,G60	1
27	SB***10	GASKET	1
28	SB***65	BOLT	4
29	98***77	FLANGE NUT,Hex, M8 x 1.25, Cl 8	4
