Case 420CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11))
COMPACT TRACK LOADERS Case 420CT

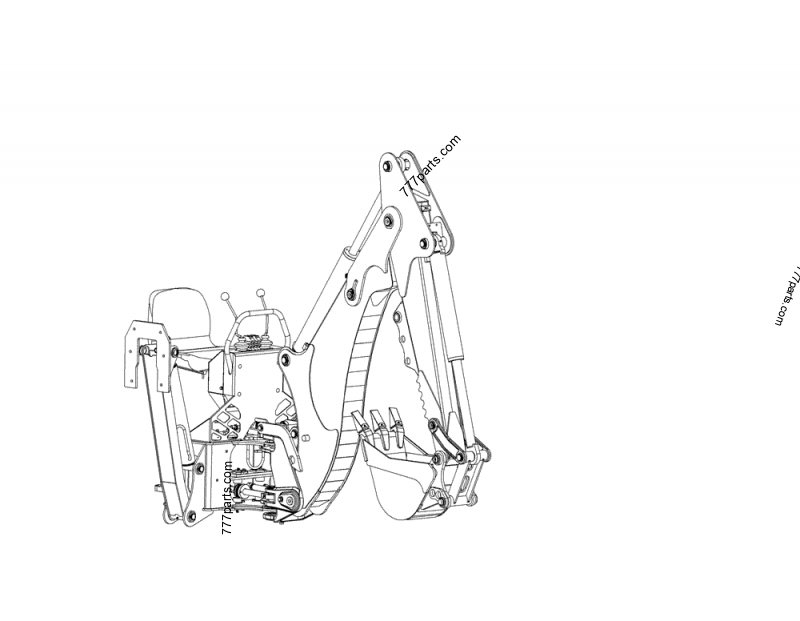

/case/420CT/m170/s-357.html / 95 CE ATTACHMENTS / BACKHOES, 420CT
Must Order Mounting Kit, Stabilizer Pad Option as Indicated and Bucket for Complete Unit, Backhoes are Not Compatible W/ Cab or Demolition Doors, Doors Must be Removed for Backhoe Operation
Select modification
Select section
- All
Subsection
- All
Unit
Subscribe to get access to part numbers.
Unlock Access| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 87***41 | BUCKET; 485 Backhoe, Incl Fold Down Stabilizers W/ Flip Over Dirt Pads, Bolt-on Rubber Pads are Opt | 1 |
| --***-- | Aux Boom Hydraulics Reqd, Rear Counterweights or Rear Stabilizers Recommended, Std Flow Reqd | ||
| --***-- | Model Compatibility: SR130, SR150, SR160, SR175 W/ 10 x 16.5, SR175 W/ 12 x 16.5, SV185, 410, 420, 430, 420CT | ||
| 2 | 87***88 | ATTACHMENT; 509 Backhoe, Incl Fold Down Stabilizers, Must Select Pad Opt for Fold Down or Vertical Stabilizers, Vertical Stabilizer May be Substituted | 1 |
| --***-- | Aux Boom Hydraulics Reqd, Rear Counterweights or Rear Stabilizers Recommended, Std Flow Reqd | ||
| --***-- | Model Compatibility: SR175 W/ 10 x 16.5, SR175 W/ 12 x 16.5, SV185, SR200 W/ 10 x 16.5, SR210 W/ 10 x 16.5, SR200 W/ 12 x 16.5 or 33/15.5 x 16.5, SR210 W/ 12 x 16.5 or 33/15.5 x 16.5, SR220, SR250, SV250, SV300, TR270, TR320, TV380, 410, 420, 430, 440, 435, 445, 450, 465, 420CT, 440CT, 445CT, 450CT | ||
| 3 | 87***89 | ATTACHMENT; 511 Backhoe, Incl Fold Down Stabilizers, Must Select Pad Opt for Fold Down or Vertical Stabilizers, Vertical Stabilizer May be Substituted | 1 |
| --***-- | Aux Boom Hydraulics Reqd, Rear Counterweights or Rear Stabilizers Recommended, Std Flow Reqd | ||
| --***-- | Model Compatibility: SR175 W/ 10 x 16.5, SR175 W/ 12 x 16.5, SV185, SR200 W/ 10 x 16.5, SR210 W/ 10 x 16.5, SR200 W/ 12 x 16.5 or 33/15.5 x 16.5, SR210 W/ 12 x 16.5 or 33/15.5 x 16.5, SR220, SR250, SV250, SV300, TR270, TR320, TV380, 420, 430, 440, 435, 445, 450, 465, 420CT, 440CT, 445CT, 450CT | ||
| 4 | 87***42 | BUCKET; 6100 Backhoe, Incl Fold Down Stabilizers W/ Flip Over Dirt Pads, Bolt-on Rubber Pads are Opt, Vertical Stabilizer May be Substituted | 1 |
| --***-- | Aux Boom Hydraulics Reqd, Rear Counterweights or Rear Stabilizers Recommended, Std Flow Reqd | ||
| --***-- | Model Compatibility: SR200 W/ 10 x 16.5, SR210 W/ 10 x 16.5, SR200 W/ 12 x 16.5 or 33/15.5 x 16.5, SR210 W/ 12 x 16.5 or 33/15.5 x 16.5, SR220, SR250, SV250, SV300, TR270, TR320, TV380, 420, 430, 440, 435, 445, 450, 465, 420CT, 440CT, 445CT, 450CT | ||
| 5 | 87***92 | MOUNTING PARTS; Complete Kit, Backhoe and Loader Halves | 1 |
| --***-- | Model Compatibility: 410, 420, 430, 440, 420CT, 440CT | ||
| 6 | 87***94 | BRACKET; Mounting, Loader Half Only, Field Installed, Order as Needed | 1 |
| --***-- | Model Compatibility: 410, 420, 430, 440, 420CT, 440CT | ||
| 7 | 86***00 | SHEET; Std Dirt Pad Option for 509, 511, Fold Down, One Stabilizer Pad Option Required | 1 |
| 8 | 86***23 | STREET PLATE; Rubber Pad Option for 509, 511, Fold Down, One Stabilizer Pad Option Required | 1 |
| 9 | 86***24 | STREET PLATE; Flip Over Pad Option for 509, 511, Fold Down, One Stabilizer Pad Option Required | 1 |
| 10 | 84***23 | STREET PLATE; Rubber Pad Option for 485, Fold Down, Optional Stabilizer Pad Not Required | 1 |
| 11 | 87***77 | STREET PLATE; Rubber Pad Option for 6100, 6120, Fold Down, Optional Stabilizer Pad Not Required | 1 |
| 12 | 86***26 | STREET PLATE; Std Dirt Pad Option for All Models, Vertical, One Stabilizer Pad Option Required | 1 |
| 13 | 86***27 | STREET PLATE; Rubber Pad Option for All Models, Vertical, One Stabilizer Pad Option Required | 1 |
| 14 | 86***28 | STREET PLATE; Flat Pad Option for All Models, Vertical, One Stabilizer Pad Option Required | 1 |
| 15 | 87***86 | STABILIZER; Vertical for 509, 511, Factory Installed, Order as Needed | 1 |
| 16 | 84***25 | STABILIZER; Vertical for 6100, 6120, Factory Installed, Order as Needed | 1 |
| 17 | 87***88 | BRACKET; C & P Bucket Quick Coupler for 509, 511, Factory Installed, Order as Needed | 1 |
| 18 | 84***09 | BRACKET; C & P Bucket Quick Coupler for 6100, 6120, Factory Installed, Order as Needed | 1 |
| 19 | 87***57 | ATTACHMENT; Knuckle Arm Thumb for 485, Factory Installed, Order as Needed | 1 |
| 20 | 87***89 | ATTACHMENT; Knuckle Arm Thumb for 509, 511, Factory Installed, Order as Needed | 1 |
| 21 | 84***19 | ATTACHMENT; Knuckle Arm Thumb for 6100, 6120, Factory Installed, Order as Needed | 1 |
| 22 | 87***90 | ATTACHMENT; Hydraulic Thumb for 509, 511, Factory Installed, Order as Needed | 1 |
| 23 | 84***22 | ATTACHMENT; Hydraulic Thumb for 6100, 6120, Factory Installed, Order as Needed | 1 |
| 24 | 87***91 | HYDRAULIC EQUIPMENT; 2-Way Aux Kit for 509, 511, For Hydraulic Thumb, Hammer and Auger Applications, Factory Installed, Order as Needed | 1 |
| 25 | 84***11 | HYDRAULIC EQUIPMENT; 2-Way Aux Kit for 6100, For Hydraulic Thumb, Hammer and Auger Applications, Factory Installed, Order as Needed | 1 |
| 26 | 86***28 | BUCKET; 10'', 0.9 Ft³, Std Pin-on Bucket Option for 485 Backhoes | 1 |
| 27 | 86***29 | BUCKET; 12'', 1.2 Ft³, Std Pin-on Bucket Option for 485 Backhoes | 1 |
| 28 | 86***30 | BUCKET; 16'', 1.9 Ft³, Std Pin-on Bucket Option for 485 Backhoes | 1 |
| 29 | 86***31 | BUCKET; 18'', 2.1 Ft³, Std Pin-on Bucket Option for 485 Backhoes | 1 |
| 30 | 86***32 | BUCKET; 24'', 3.1 Ft³, Std Pin-on Bucket Option for 485 Backhoes | 1 |
| 31 | 86***01 | BUCKET; 12'', 1.8 Ft³, Std Pin-on Bucket Options for 509 And 511 Backhoes | 1 |
| --***-- | Thumb Contacts Bucket Teeth, Others Mesh W/ Teeth | ||
| 32 | 86***02 | BUCKET; 16'', 2.6 Ft³, Std Pin-on Bucket Options for 509 and 511 Backhoes | 1 |
| 33 | 86***03 | BUCKET; 18'', 3.0 Ft³, Std Pin-on Bucket Options for 509 and 511 Backhoes | 1 |
| 34 | 87***07 | BUCKET; 20'', 3.4 Ft³, Std Pin-on Bucket Options for 509 and 511 Backhoes | 1 |
| 35 | 86***04 | BUCKET; 24'', 4.3 Ft³, Std Pin-on Bucket Options for 509 and 511 Backhoes | 1 |
| --***-- | Thumb Contacts Bucket Teeth, Others Mesh W/ Teeth | ||
| 36 | 87***08 | BUCKET; 36'', 6.1 Ft³, Std Pin-on Bucket Options for 509 and 511 Backhoes | 1 |
| 37 | 86***67 | RIPPER TOOTH; Std Pin-on Bucket Options for 509 and 511 Backhoes | 1 |
| 38 | 84***28 | BUCKET; 12'', 1.5 Ft³, Std Pin-on Bucket Options for 6100 and 6120 Backhoes | 1 |
| --***-- | Thumb Contacts Bucket Teeth, Others Mesh W/ Teeth | ||
| 39 | 84***29 | BUCKET; 16'', 2.2 Ft³, Std Pin-on Bucket Options for 6100 and 6120 Backhoes | 1 |
| 40 | 84***30 | BUCKET; 18'', 2.5 Ft³, Std Pin-on Bucket Options for 6100 and 6120 Backhoes | 1 |
| 41 | 84***31 | BUCKET; 24'', 3.6 Ft³, Std Pin-on Bucket Options for 6100 and 6120 Backhoes | 1 |
| --***-- | Thumb Contacts Bucket Teeth, Others Mesh W/ Teeth | ||
| 42 | 84***32 | BUCKET; 34'', 5.3 Ft³, Std Pin-on Bucket Options for 6100 and 6120 Backhoes | 1 |
| 43 | 84***33 | BUCKET; 36'', 5.7 Ft³, Std Pin-on Bucket Options for 6100 and 6120 Backhoes | 1 |
| 44 | 84***34 | BUCKET; 38'', 6.0 Ft³, Std Pin-on Bucket Options for 6100 and 6120 Backhoes | 1 |
| 45 | 87***64 | BRACKET; Auger Adapter, Allows Case Auger to be Attached to the Dipper, Requires Aux Hydraulic Kit, Std Pin-on Bucket Options for 6100 and 6120 Backhoes | 1 |
| 46 | 87***10 | BUCKET; 12'' C & P 027 Heavy Duty, 2.4 Ft³, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler | 1 |
| --***-- | Thumb Contacts Bucket Teeth, Others Mesh W/ Teeth | ||
| 47 | 87***11 | BUCKET; 16'' C & P 027 Heavy Duty, 3.3 Ft³, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler | 1 |
| 48 | 87***12 | BUCKET; 18'' C & P 027 Heavy Duty, 3.5 Ft³, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler | 1 |
| 49 | 87***14 | BUCKET; 20'' C & P 027 Heavy Duty, 3.8 Ft³, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler | 1 |
| 50 | 87***15 | BUCKET; 24'' C & P 027 Heavy Duty, 4.8 Ft³, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler | 1 |
| --***-- | Thumb Contacts Bucket Teeth, Others Mesh W/ Teeth | ||
| 51 | 87***16 | BUCKET; 30'' C & P 027 Heavy Duty, 6.1 Ft³, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler | 1 |
| 52 | 87***17 | BUCKET; 36'' C & P 027 Heavy Duty, 7.5 Ft³, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler | 1 |
| 53 | 87***18 | BUCKET; 30'' C & P 027 Ditch Cleaning, 6.1 Ft³, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler | 1 |
| 54 | 87***19 | BUCKET; 36'' C & P 027 Ditch Cleaning, 7.5 Ft³, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler | 1 |
| 55 | 87***20 | RIPPER TOOTH; C & P 027, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler | 1 |
| 56 | 87***22 | COUPLING; C & P 027 Auger Adapter, Allows Case Auger to be Attached to Dipper, Requires Aux Hydraulic Kit, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler | 1 |
| 57 | 87***23 | BRACKET; C & P Bucket Quick Coupler for 509, 511, Field Installed Option, Order as Needed | 1 |
| 58 | 84***10 | BRACKET; C & P Bucket Quick Coupler for 6100, 6120, Field Installed Option, Order as Needed | 1 |
| 59 | 87***58 | ATTACHMENT; Knuckle Arm Thumb for 485, Field Installed Option, Order as Needed | 1 |
| 60 | 87***25 | ATTACHMENT; Knuckle Arm Thumb for 509, 511, Field Installed Option, Order as Needed | 1 |
| 61 | 84***20 | ATTACHMENT; Knuckle Arm Thumb for 6100, 6120, Field Installed Option, Order as Needed | 1 |
| 62 | 87***27 | ATTACHMENT; Hydraulic Thumb for 509, 511, Field Installed Option, Order as Needed | 1 |
| 63 | 84***23 | ATTACHMENT; Hydraulic Thumb for 6100, 6120, Field Installed Option, Order as Needed | 1 |
| 64 | 87***28 | HYDRAULIC EQUIPMENT; 2-Way Aux Kit for 509, 511, For Hydraulic Thumb, Hammer and Auger Applications, Field Installed Option, Order as Needed | 1 |
| 65 | 84***12 | HYDRAULIC EQUIPMENT; 2-Way Aux Kit for 6100, For Hydraulic Thumb, Hammer and Auger Applications, Field Installed Option, Order as Needed | 1 |
| 66 | 87***29 | STABILIZER; Vertical for 509, 511, Field Installed Option, Order as Needed | 1 |
| 67 | 84***26 | STABILIZER; Vertical for 6100, 6120, Field Installed Option, Order as Needed | 1 |
