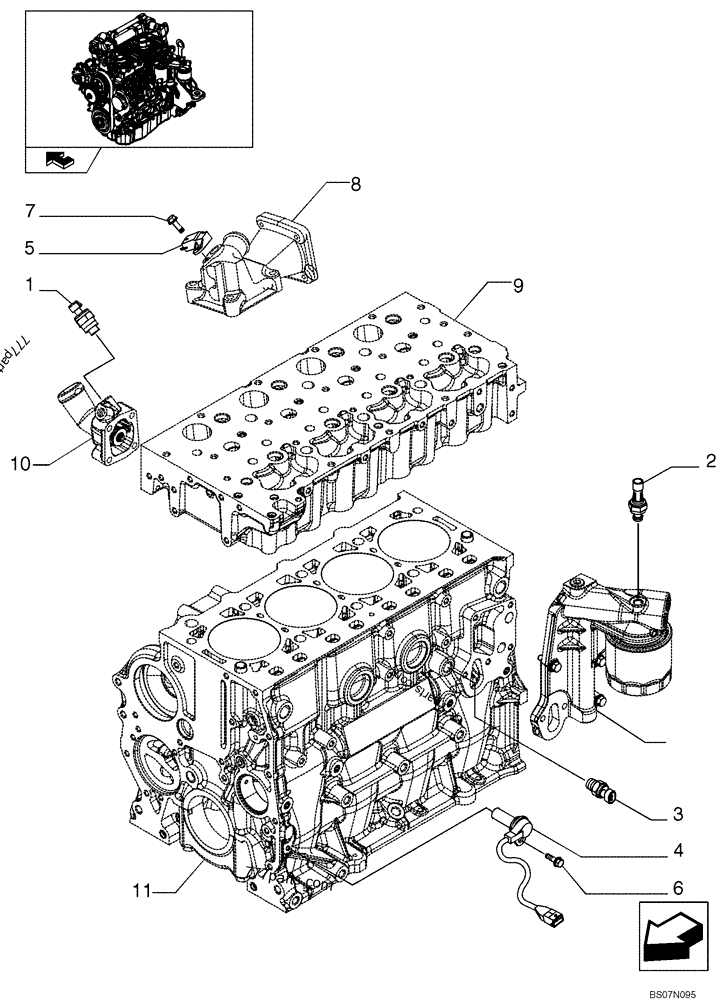

#	Part No.	Description	Qty
1	28***57	SENSOR; Water	1
2	28***89	PRESSURE SWITCH	1
3	50***90	SENSOR; Water temperature KSB	1
4	50***63	TRANSMITTER; Crankshaft; Speed Sensor	1
5	50***31	SENSOR; Air press. & temperature	1
6	16***25	SCREW,Hex, M6 x 12mm; M6X12 mm	1
7	16***25	SCREW,M6 x 20mm; M6 x 20	1
8	REF	INSTRUCTION; See Figure 02-19, Intake Manifold
9	REF	INSTRUCTION; See Figure 02-16, Cylinder Head And Related Parts
10	REF	INSTRUCTION; See Figure 02-35, Temperature Control
11	REF	INSTRUCTION; See Figure 02-11, Cylinder Block And Related Parts
12	REF	INSTRUCTION; See Figure 02-30, Filter Engine Oil
