Case 420CT (COMPACT TRACK LOADER - BSN N7M455401 (2/06-12/07))

Select modification

Subscribe to get access to part numbers.

#	Part No.	Description	Qty
1	80***07	WASHER,0.25" ID x 0.56" OD x 0.05" Thk	2
2	13***34	SPACER,6.52mm ID x 9.52mm OD x 3.43mm W	1
3	86***20	SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2"	1
4	88***26	LOCK NUT,#10-24, GA	1
5	98***69	RIVET,10-32 Thread, 19.6mm Shoulder	1
6	11***04	SPRING	1
7	87***25	NUT,#10-32	1
8	98***32	BRACKET	1
9	87***22	ROD; Throttle Control Rod	1
10	H1***20	BALL JOINT	2
11	86***09	NUT,1/4"-28, G5	3
12	12***56	BOLT,M6 x 1.0 x 54.15mm, Cl 8.8	2
13	87***61	NUT,M6 x 1, Cl 8	4
14	87***60	BRACKET; Throttle Positioning Sensor Mount	1
15	87***39	BAR; Top Bar Clamp	2
16	87***16	WASHER,0.41" ID x 0.81" OD x 0.07" Thk	11
17	88***34	BOLT,Hex, 3/8" - 16 x 3/4", Gr 5	11
18	87***58	COVER; Flywheel Cover	2
20	29***A1	LEVER; Throttle Pivot	1
21	25***A1	SEALING WASHER,12.5mm ID x 36mm OD x 10mm Thk; Rubber Washer	1
22	13***C1	DISC; Friction Disc	2
23	87***38	LEVER ASSY.; Hand Throttle Lever	1
24	25***A1	WASHER,13.1mm ID x 48mm OD x 3.05mm Thk; Slotted Washer	1
25	86***55	WASHER,13.3mm ID x 24.5mm OD x 3mm Thk	1
26	32***38	THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05	2
27	D1***13	HANDLE; Vinyl Grip	1
28	87***36	ROD; Throttle Rod	1
29	87***32	CLAMP	2
30	86***90	BOLT,Hex, M6 x 45mm, Cl 8.8	2
31	D1***83	COTTER PIN,1.04mm OD x 21.4mm L, Ring	1
32	87***62	CRANK; Crank, Load Management System	1

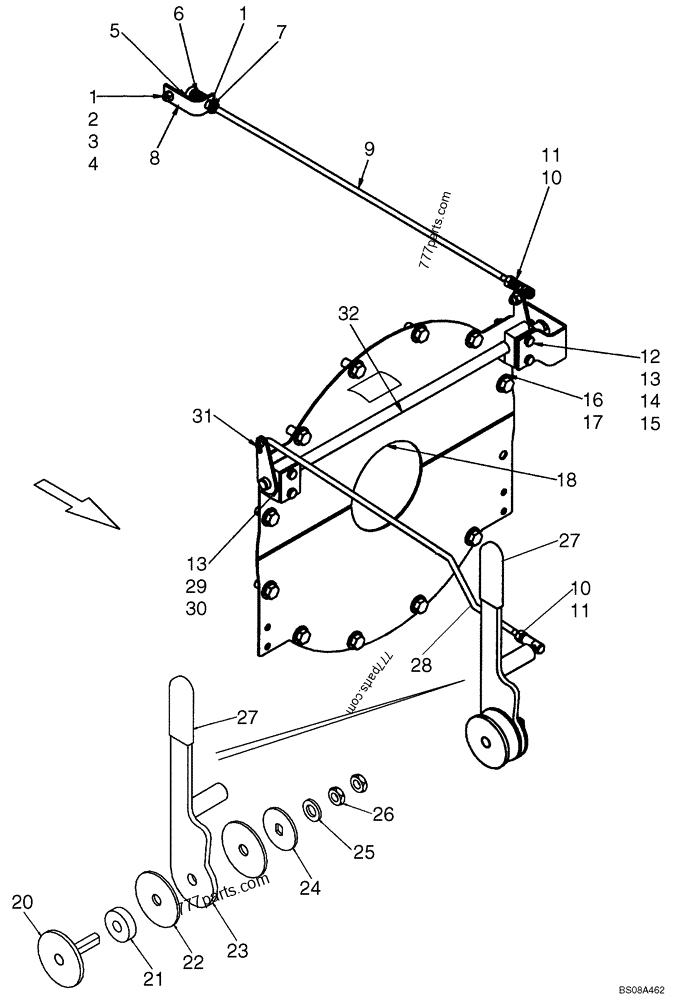

CONTROLS - THROTTLE, LOAD MANAGEMENT SYSTEM - COMPACT TRACK LOADERS Case 420CT (COMPACT TRACK LOADER - BSN N7M455401 (2/06-12/07)) | 777parts.com
