Case 420CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11))

COMPACT TRACK LOADERS Case 420CT
/case/420CT/m170/s-357.html / 04 ELECTRICAL SYSTEMS / ENGINE ELECTRIC INSTALLATION (87546691)

Select modification

COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

• COMPACT TRACK LOADER - BSN N7M455401 (2/06-12/07)
• COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

Select section

All

• All

Subsection

All

• All

Unit

Select group

5

3

6

2

4

1

Subscribe to get access to part numbers.

Unlock Access

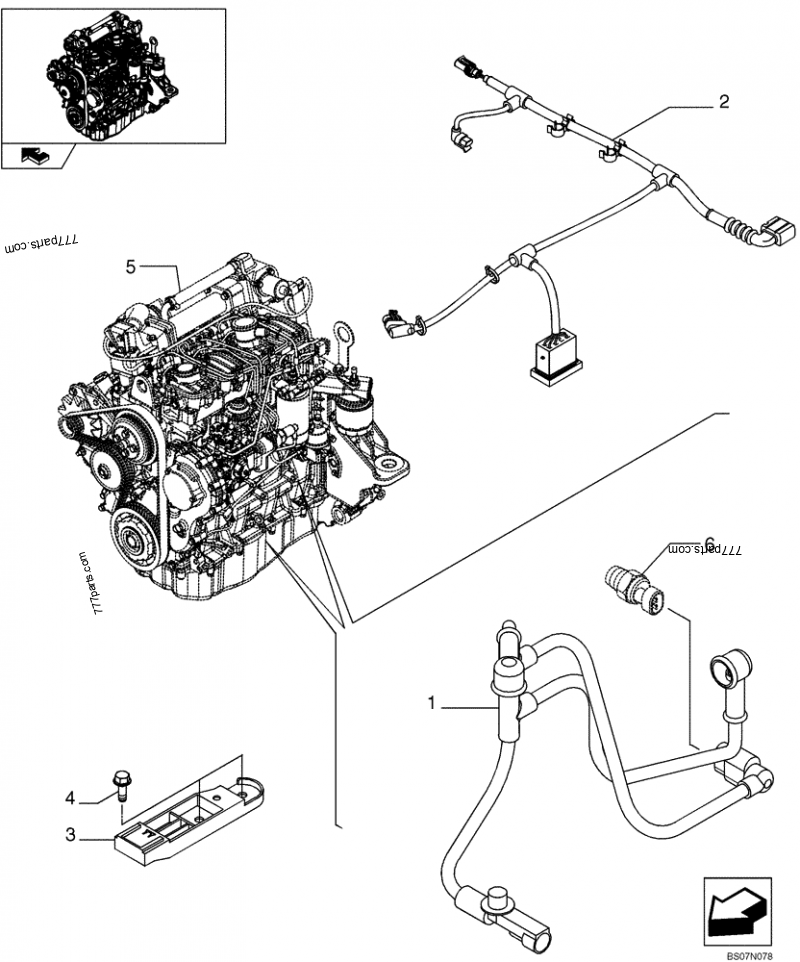

#	Part No.	Description	Qty
1	50***48	WIRE HARNESS	1
2	50***44	HARNESS	1
3	50***78	BRACKET	1
4	28***23	SCREW,M8 x 1.25 x 14mm; M8X14 mm	2
5	REF	INSTRUCTION; See Figure 02-10, Engine Assy
6	REF	INSTRUCTION; See Figure 02-38 Diagnostic Sensor
