Case 420CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11))

COMPACT TRACK LOADERS Case 420CT
/case/420CT/m170/s-357.html / 04 ELECTRICAL SYSTEMS / ELECTRICAL - GRID HEATER

Select modification

COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

• COMPACT TRACK LOADER - BSN N7M455401 (2/06-12/07)
• COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

Select section

All

• All

Subsection

All

• All

Unit

Select group

10

1

13

20

18

8

17

11

10

14

4

9

2

5

2

4

7

3

9

14

16

6

12

15

Subscribe to get access to part numbers.

Unlock Access

#	Part No.	Description	Qty
1	86***95	CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type	2
2	32***58	BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk	3
3	97***90	NUT,M8 x 1.25, Cl 8	1
4	86***00	BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd	3
5	86***36	CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type	1
6	87***49	BRACKET; Grid Heater Bracket	1
7	87***58	CABLE	1
8	87***15	BAR; Terminal Jumper Bar	1
9	80***81	LOCK WASHER,5/16"	2
10	96***68	JAM NUT,Jam, 5/16"-18, G2	2
11	80***84	LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk	1
12	87***25	NUT,#10-32	1
13	87***62	CABLE,595mm L	1
14	80***01	WASHER,0.31" ID x 0.73" OD x 0.07" Thk	6
15	88***46	BOLT,Hex, 1/4" - 20 x 1", Gr 5	2
16	87***68	SOLENOID SWITCH	1
17	32***57	BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk	2
18	77***70	NUT,Hex, 1/4 - 20, Cl 5	2
19	62***86	DANGER DECAL; Not Illustrated; If Used	1
20	86***44	FLANGE NUT,Hex, M6 x 1; If Used	1
21	48***16	HEATER; Not Shown; See Fig. 02-19	1

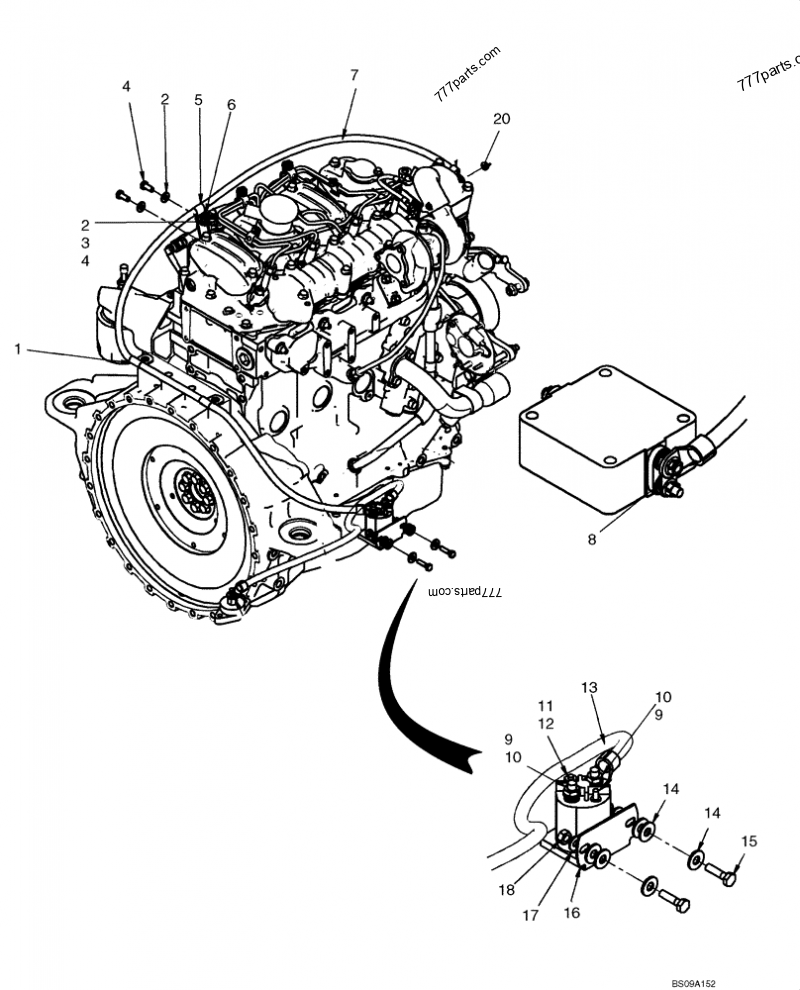

ELECTRICAL - GRID HEATER - COMPACT TRACK LOADERS Case 420CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)) | 777parts.com
