Case 420CT (COMPACT TRACK LOADER - BSN N7M455401 (2/06-12/07))

COMPACT TRACK LOADERS Case 420CT
/case/420CT/m170/s-356.html / 04 ELECTRICAL SYSTEMS / OPTIONS, ELECTRICAL - MOUNTING

Select modification

COMPACT TRACK LOADER - BSN N7M455401 (2/06-12/07)

• COMPACT TRACK LOADER - BSN N7M455401 (2/06-12/07)
• COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

Select section

All

• All

Subsection

All

• All

Unit

Select group

4

3

2

6

8

1

11

14

13

12

7

10

5

9

Subscribe to get access to part numbers.

Unlock Access

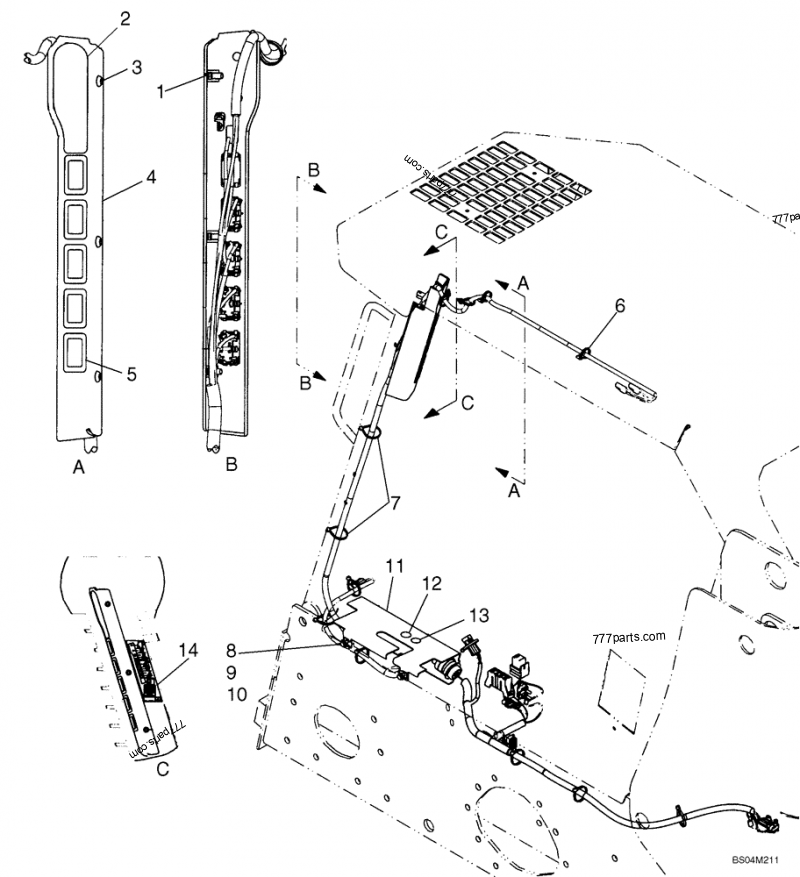

#	Part No.	Description	Qty
1	86***25	SPRING NUT,Tinn, U, 1/4"-20	3
2	87***48	DECAL; Blank Cover	1
3	34***10	SCREW,Cross Pan Hd, 1/4"-20 x 5/8"	3
4	87***17	PANEL; Used With Decal Figure 09-36, Ref 5	1
4	87***04	PANEL; Used With Decal Figure 09-36, Ref 5A	1
5	86***35	PLUG,1.427" x .62", Plastic	5
6	34***A1	ANCHOR	4
7	L1***31	CABLE TIE,375.9mm L, Nylon; CABLE STRAP	2
8	43***27	BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8	2
9	83***08	NUT,M8, U	2
10	86***63	WASHER,9mm ID x 20mm OD x 1.6mm Thk	2
11	87***49	COVER; Options Harness	1
12	86***31	PLUG,Dome, .875" hole, Nylon	1
13	84***02	PLUG,Dome, .750" hole, Nylon	1
14	87***42	DECAL; Option Panel	1
