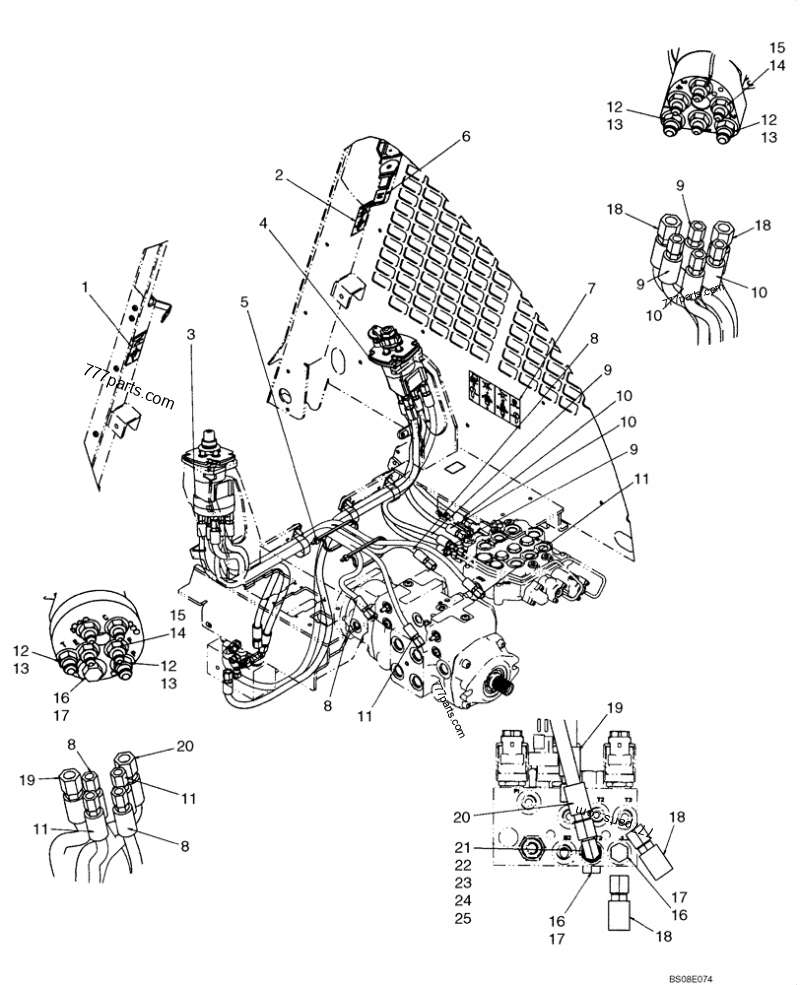

Part diagram JOYSTICK CONTROL PLUMBING - ISO PATTERN (420CT WITH PILOT CONTROL) - COMPACT TRACK LOADERS Case 420CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)) | 777parts.com

Subscribe to get access to part numbers.

Unlock Access
# Part No. Description Qty
87***61 SERVICE KIT; Kit, ISO Pattern Controls (420CT); Incl 1 - 25 And Fig 06-04 1
1 87***91 DECAL; Decal, ISO Pattern, LH 1
2 87***92 DECAL; Decal, ISO Pattern, RH 1
3 87***54 VALVE; Joystick Valve, ISO Pattern, LH; See Fig 06-07 1
4 87***23 VALVE; Joystick Valve, ISO Pattern, RH; See Fig 06-08 1
5 L1***31 CABLE TIE,375.9mm L, Nylon; CABLE STRAP 2
6 87***91 DECAL; Decal, ISO Pattern 1
7 87***88 DECAL; Decal, Control Identification, ISO Pattern 1
8 87***64 HYDRAULIC HOSE,6.35 mm ID x 845.00 mm; Pilot Control 2
9 87***62 HOSE,6.35mm ID x 590mm L; Hose, Pilot Control, 590mm (23 1/4 in.) Length 2
10 87***69 HOSE,6.35mm ID x 490mm L; Hose, Pilot Control, 490mm (19 9/32 in.) Length 2
11 87***65 HYDRAULIC HOSE,6.35 mm ID x 975.00 mm; Pilot Control 2
12 76***50 HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC; Incl 13 4
13 96***73 O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro 4
14 13***98 HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC; Incl 15 8
15 96***73 O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro 8
16 76***49 PLUG,9/16" - 18 ORB; Incl. 17 3
17 96***73 O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro 3
18 87***18 HOSE,9.53mm ID x 1300mm L; Hose, Joystick Supply Or Drain, 1300mm (51 3/16 in.) Length 2
19 87***80 HOSE,9.53mm ID x 620mm L; Hose, Joystick Drain, 620mm (24 13/32 in.) Length 1
20 87***71 HOSE; Hose, Joystick Supply, 680mm (26 3/4 in.) Length 1
21 86***26 ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB; Incl 22 1
22 96***73 O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro 1
23 87***71 ADAPTER; 3/8 in. Male X 3/8 in. Female; Incl 24, 25 1
24 96***73 O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro 1
25 99***41 O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro 1
