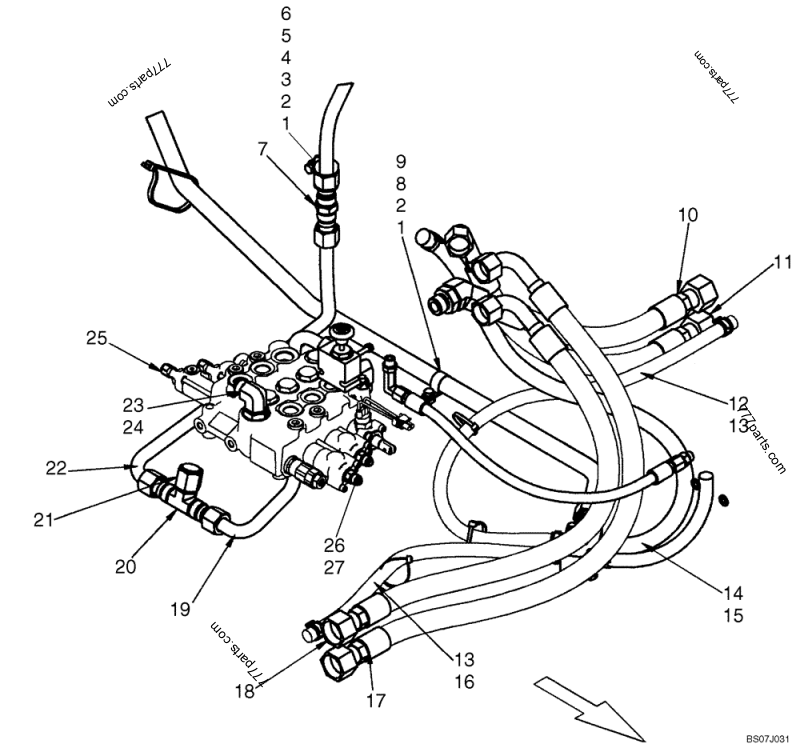

| 1 |
86***84 |
WASHER,9mm ID x 16mm OD x 1.6mm Thk |
4 |
| 2 |
22***A1 |
SQUARE NUT,M8 x 1.25, Cl 8 |
4 |
| 3 |
87***97 |
SPACER |
1 |
| 4 |
87***59 |
CLAMP,28.6mm, 10.3mm Bolt Hole, P Type |
1 |
| 5 |
87***36 |
HYD TUBE,18.9 mm ID x 29 mm OD x 21, 2 mm L |
1 |
| 6 |
43***28 |
BOLT,M8 x 1.25 x 30mm, Cl 8.8 |
1 |
| 7 |
14***21 |
UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC |
1 |
| 8 |
86***77 |
CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type |
1 |
| 9 |
12***03 |
BOLT,M8 x 1.25 x 16mm, Cl 8.8 |
1 |
| 10 |
87***69 |
HYDRAULIC HOSE,19.05 mm ID x 385.00 mm, SAE J517, 100R13; If Used |
1 |
| 10 |
87***67 |
HOSE,19.05mm ID x 930mm L; 930mm (36.61in) |
1 |
| 11 |
87***70 |
HOSE,19.05mm ID x 500mm L, SAE 100R13; 500mm (19 11/16 in); If Used |
1 |
| 11 |
87***65 |
HOSE,19.05mm ID x 609mm L; 609mm (23.98in) |
1 |
| 12 |
87***82 |
HOSE; Case Drain Hose, LH, 808mm (31 13/16 in) |
1 |
| 13 |
87***10 |
HOSE CLAMP,18.4mm Static ID x 15mm W |
6 |
| 14 |
87***18 |
HOSE ASSY.; 790mm (31 1/8 in); If Used |
1 |
| 14 |
87***97 |
HOSE,15.88 mm ID x 810.00 mm |
1 |
| 15 |
87***11 |
CLAMP,22mm - 26mm, CTB-24, Style C |
2 |
| 16 |
87***73 |
HYDRAULIC HOSE,12.70 mm ID x 650.00 mm |
1 |
| 17 |
87***72 |
HOSE; 1025mm (40 3/8 in.) |
1 |
| 18 |
87***71 |
HOSE; 950mm (37 3/8 in.); If Used |
1 |
| 18 |
87***66 |
HOSE,19.05mm ID x 370mm L; 970mm (38.19in) |
1 |
| 19 |
87***48 |
HYD TUBE,19.05 mm OD x 344.1, 215.2 mm L; Valve To Filter |
1 |
| 20 |
15***94 |
TEE,1 1/16"-12 37 Degree |
1 |
| 21 |
21***06 |
CAP,1-1/16" - 12 JIC |
1 |
| 22 |
87***38 |
HYD TUBE,19.05 mm OD; Valve To Filter |
1 |
| 23 |
84***70 |
90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB; Incl 24 |
1 |
| 24 |
16***66 |
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro |
1 |
| 25 |
87***84 |
HYD CONNECTOR |
2 |
| 26 |
84***84 |
HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring; Incl 27 |
2 |
| 27 |
16***02 |
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro |
2 |
