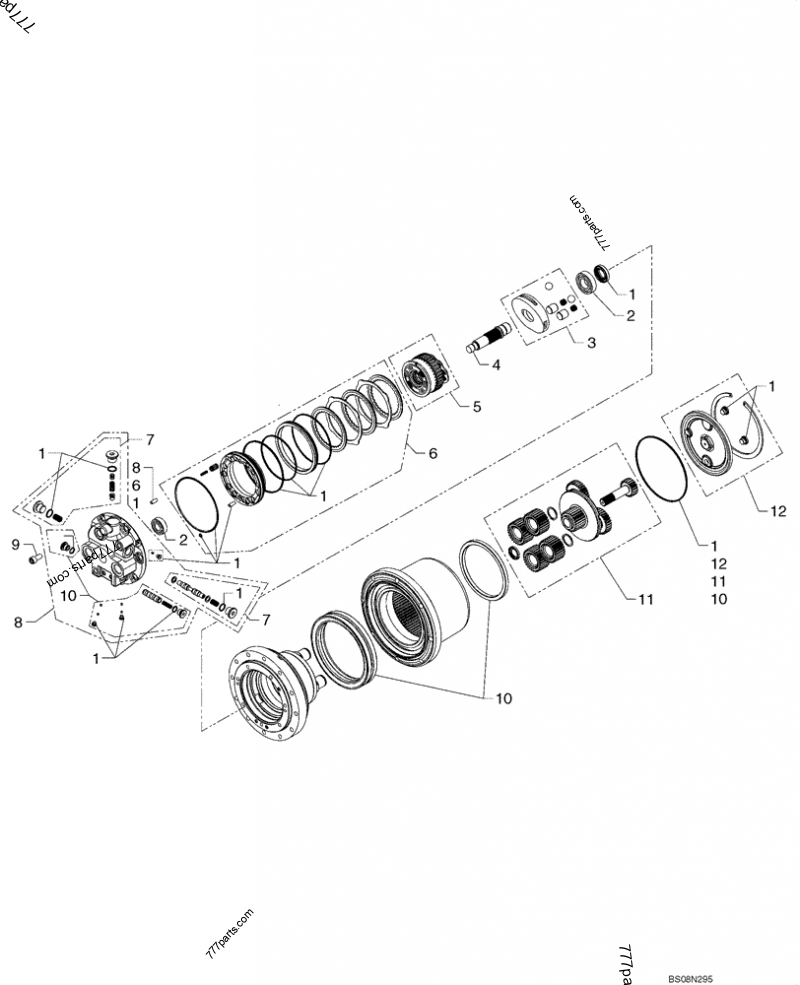

87***97 |
MOTOR-PUMP,50.9 CC; 2 Speed Motor, Track Drive; Incl 1 - 12 |
2 |
| 1 |
87***20 |
SERVICE KIT; Repair Kit Incl 1A, 1B, (4) Pins, (3) Plugs, (1) Orifice, (1) Motor Seal Ring, (13) O-Rings |
1 |
| 1A |
87***96 |
RING,Quad, 190.10mm OD x 3.53mm Thk; Quad-Ring |
1 |
| 1B |
87***84 |
PLUG,3/8" |
2 |
| 2 |
87***18 |
SERVICE KIT; Bearings Kit Incl (2) Bearings |
1 |
| 3 |
87***16 |
SERVICE KIT; Swash Plate Kit Incl (1) Swash Plate, (2) Balls, (2) Pistons, (2) Springs |
1 |
| 4 |
87***17 |
SHAFT |
1 |
| 5 |
87***15 |
SERVICE KIT; Cylinder Block Assy Kit Incl (1) Valve Plate, (1) Circlip, (1) Collar Washer, (1) Spring, (1) Spring Holder, (1) Cylinder Block, (3) Pins, (1) Spherical Bush, (1) Retainer Plate, (9) Pistons |
1 |
| 6 |
87***19 |
SERVICE KIT; Parking Brake Kit Incl (4) Pins, (7) O-Rings, (24) Springs, (1) Brake Pistons, (1) Brake Spacer, (2) Steel Discs, (3) Brake Discs |
1 |
| 7 |
87***14 |
SERVICE KIT; Flushing Kit Incl (1) Poppet, (3) Springs, (3) Spring Seats, (4) O-Rings, (3) Plugs, (1) Plunger |
1 |
| 8 |
87***02 |
SERVICE KIT; Base Plate Assy Kit Incl 8A, 8B, (3) Plugs, (1) Orifice, (2) Pins |
1 |
| 8A |
87***14 |
SERVICE KIT; Flushing Kit |
1 |
| 8B |
87***05 |
SERVICE KIT; Second Speed Spool Kit |
1 |
| 9 |
87***99 |
SCREW,Hex Skt, M12 x 1.75 x 35mm, Cl 12.9; M12 X 1.75-12.9 L.35 |
1 |
| 10 |
87***01 |
SPECIAL NUT; Seal-Nut Kit Incl 10A, (1) Lifetime Seal, (1) Nut |
1 |
| 10A |
87***96 |
RING,Quad, 190.10mm OD x 3.53mm Thk; Quad-Ring |
1 |
| 11 |
87***00 |
SERVICE KIT; Reduction Assy Kit Incl 11A, (1) Centering Ring, (4) PlanetaryAssy, (4) Circlip, (1) First Reduction Assy, (1) Sun Gear |
1 |
| 11A |
87***96 |
RING,Quad, 190.10mm OD x 3.53mm Thk; Quad-Ring |
1 |
| 12 |
87***83 |
SERVICE KIT; Cover Assy Kit Incl 12A, 12B, 12C, (1) Pad, (1) Cover |
1 |
| 12A |
87***96 |
RING,Quad, 190.10mm OD x 3.53mm Thk; Quad-Ring |
1 |
| 12B |
87***85 |
CIRCLIP |
1 |
| 12C |
87***84 |
PLUG,3/8" |
2 |
