Case 420CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11))

COMPACT TRACK LOADERS Case 420CT
/case/420CT/m170/s-357.html / 06 POWER TRAIN / PUMP, TANDEM - REXROTH A22 - 300 BAR, 5.7MM ORF (87546976)

Select modification

COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

• COMPACT TRACK LOADER - BSN N7M455401 (2/06-12/07)
• COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

Select section

All

• All

Subsection

All

• All

Unit

Select group

17

5

6

21

1

4

18

17

9

15

11

20

23

22

8

8

18

16

10

8

13

7

2

14

18

19

3

Subscribe to get access to part numbers.

Unlock Access

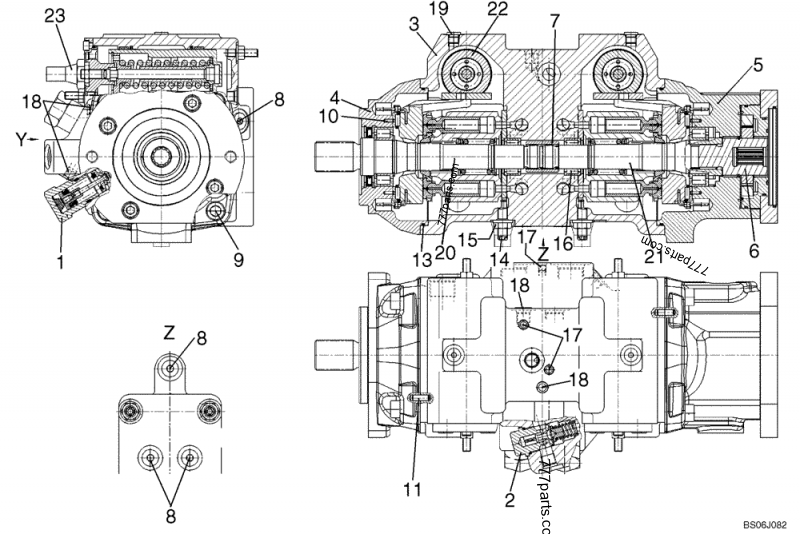

#	Part No.	Description	Qty
	87***76	PUMP,46 CC; Rexroth Pump A22
1	87***28	VALVE PRESSURE RELIE; HD 300 Bar; See Fig. 06-52	4
2	87***04	VALVE PRESSURE RELIE; 15 - 30 Bar R-Ring Viton; See Fig. 06-53	1
3	87***05	HOUSING; Pump	1
4	87***06	FLANGED BEARING; Bearing	1
5	87***29	FLANGED BEARING; With Bushing	1
6	87***08	ASSEMBLY; Internal Gear Pump; See Fig. 06-54	1
7	87***09	COUPLING; Through Drive	1
8	87***11	LOCK SCREW; 9/16 - 18UNF	5
9	87***13	HEX SOC SCREW; Socket Head	8
10	87***14	PIN; Clamping	4
11	87***15	PIN; Cylinder	2
12	87***16	O-RING; Not Illustrated	1
13	87***17	O-RING	2
14	87***18	SCREW; Eccentric Screw	2
15	87***19	LOCK NUT; Seal	2
16	87***20	ROLLER BEARING; Plain	2
17	87***21	PIN; Double Break Off	2
18	87***22	PIN; Double Break Off	2
19	87***12	LOCK SCREW; 7/16 - 20UNF	2
20	87***99	SERVICE KIT; Rotary Group, RH Rotation; See Fig. 06-55	1
21	87***00	SERVICE KIT; Rotary Group, LH Rotation; See Fig. 06-56	1
22	87***01	CONTROL; Hydraulic; See Fig. 06-57	2
23	87***27	CARTRIDGE; With Orifice; See Fig. 06-58	1
	87***10	BEARING; Bushing	1
	87***99	CAP	3
