Case 420CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11))

COMPACT TRACK LOADERS Case 420CT
/case/420CT/m170/s-357.html / 08 HYDRAULICS / HYDRAULICS - CASE DRAIN; HIGH FLOW

Select modification

COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

• COMPACT TRACK LOADER - BSN N7M455401 (2/06-12/07)
• COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

Select section

All

• All

Subsection

All

• All

Unit

Select group

5

11

13

3

1

4

9

8

14

12

6

2

10

7

Subscribe to get access to part numbers.

Unlock Access

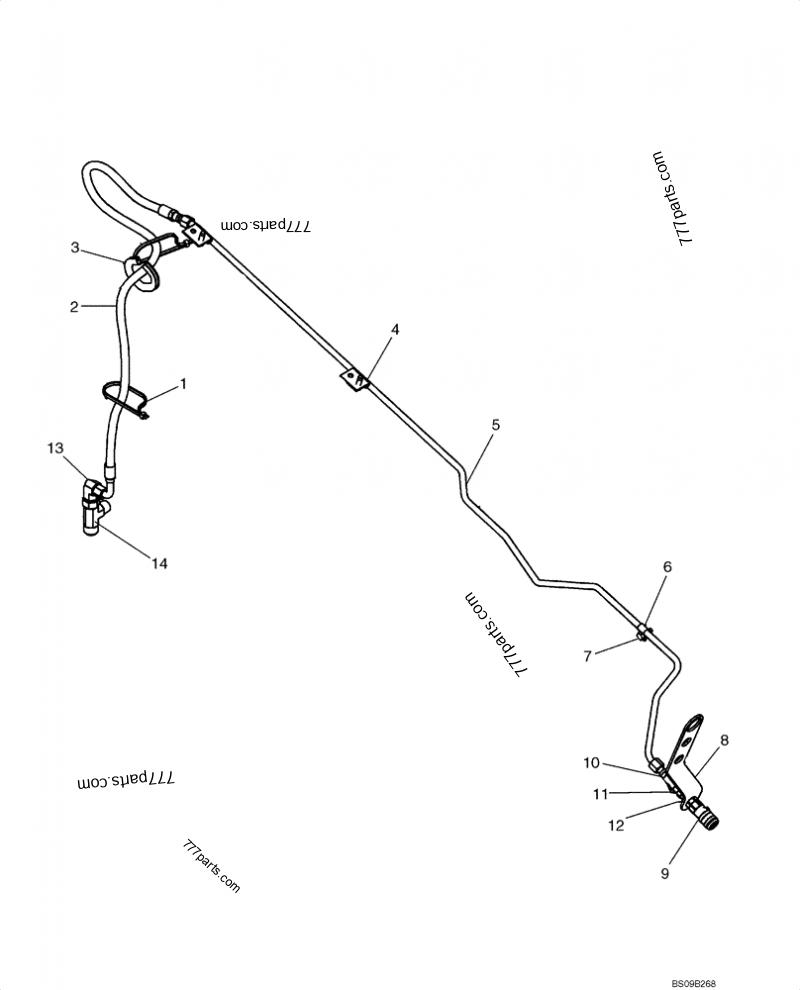

#	Part No.	Description	Qty
	84***47	SERVICE KIT; Kit, Service Case Drain High Flow; Incl 1 - 7	1
	REF	INSTRUCTION; Loader Arm Case Drain; Incl 1 - 14	1
1	L1***31	CABLE TIE,375.9mm L, Nylon; CABLE STRAP	2
2	84***39	HOSE,9.53mm ID x 1275mm L; Loader Arm Case Drain	1
3	29***86	PROTECTION STRIP,9.9mm W; Channel Edge; 0.5Ft Required
4	87***13	BRACKET	2
5	84***55	TUBE; Hose, Hyd Case Drain, High Flow	1
6	86***02	CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type	3
7	28***76	SELF-TAP SCREW,HWH, 3/8"-16 x 1"	3
8	87***30	BRACKET	1
9	87***86	COUPLING; .38 Fem 8m8f	1
10	87***93	TEE; SwivelRun 37Fl .50 x .50 x .50	1
11	26***59	CAP,3/4" - 16 Fem JIC; Remove When Hydraulic Coupler Option Is Installed	1
12	52***36	BHD LOCK NUT,Blkhd, 3/4"-16	1
13	86***11	ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw	1
14	87***79	TEE; Male BR 37Fl 1.0 x .75 x .75	1
