Case 420CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11))

COMPACT TRACK LOADERS Case 420CT
/case/420CT/m170/s-357.html / 08 HYDRAULICS / HYDRAULICS - ATTACHMENT, PROPORTIONAL (WITH PILOT CONTROL)

Select modification

Select section

  • All

Subsection

  • All

Unit

10
11
13
26
3
5
29
23
14
4
25
3
32
12
31
30
22
17
2
4
21
28
16
7
8
27
34
6
19
9
36
20
1
15
24
18
33
35

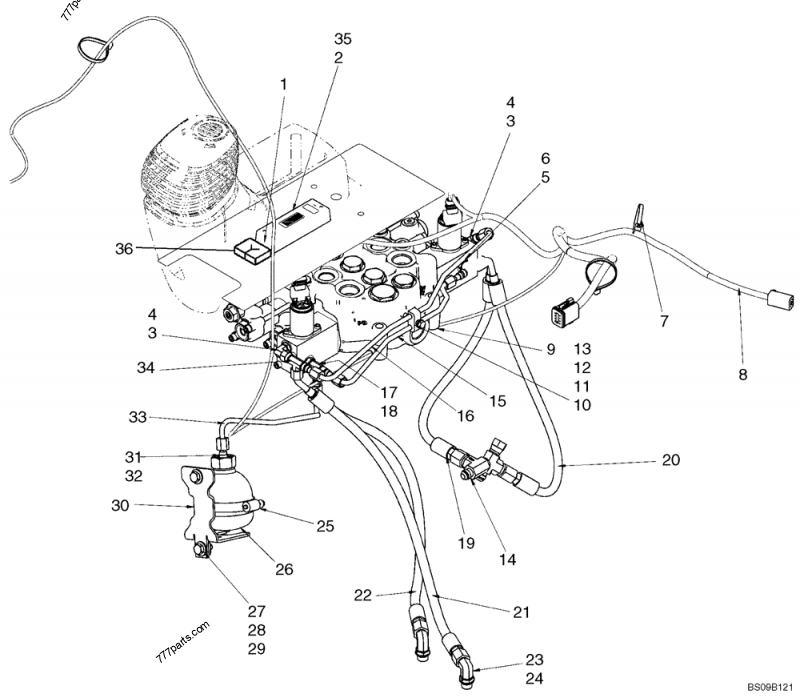

Part diagram HYDRAULICS - ATTACHMENT, PROPORTIONAL (WITH PILOT CONTROL) - COMPACT TRACK LOADERS Case 420CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)) | 777parts.com

Subscribe to get access to part numbers.

Unlock Access
# Part No. Description Qty
87***61 SERVICE KIT; Kit, EH Proportional Auxiliary, Pilot Control 1
1 10***12 NUT,M4 x 0.7, Cl 8; If Used 2
2 87***80 VALVE; PWM Driver 1
3 21***73 90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring; Incl 4 2
4 16***02 O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro 1
5 16***89 TEE,7/16"-20, 37 Degree x 7/8"-14, O-Ring Br; Incl 6 1
6 16***02 O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro 1
7 L1***41 CABLE TIE,203.2mm L, Nylon; CABLE STRAP 3
8 87***39 HARNESS; Electro-Hydraulic Auxiliary; If Used 1
8 87***72 HARNESS; Electro-Hydraulic Auxiliary 1
9 87***75 HYDRAULIC VALVE; Control Valve, Pilot Control; See Fig 08-17 1
10 60***89 CLAMP 1
11 80***01 BOLT; Bolt, M6 X 30 Cl 8.8 1
12 86***81 WASHER,M6 1
13 87***61 NUT,M6 x 1, Cl 8 1
14 87***66 TEE 1
15 87***70 HYD TUBE,6.35 mm OD; Tube, Pilot Pressure 1
16 87***01 HYD TUBE,6.35 mm OD; Tube, EH Drain 1
17 86***19 TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC; Incl 18 1
18 16***02 O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro 1
19 87***74 HOSE; Hose, EH Supply, 424mm (16 11/16 in.) Length; Used On 420 - 440 1
20 87***01 HOSE; Hose, Charge To EH, 460mm (18 1/8 in.) Length; Used On 410 1
21 87***42 HOSE,6.35mm ID x 560mm L; Hose, Case Drain, 560mm (22 1/16 in.) Length; Used On 420 - 440 1
22 87***23 HOSE; Hose, Case Drain, 585mm (23 in.) Length; Used On 410 1
23 76***44 90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB; Incl. 24 1
24 96***73 O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro 1
25 86***32 HOSE CLAMP,88.9mm ID - 65mm ID 1
26 87***69 ACCUMULATOR; Hydraulic Accumulator, Pilot Control 1
27 12***04 BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8 2
28 86***63 WASHER,9mm ID x 20mm OD x 1.6mm Thk 2
29 12***A1 NUT,M8, U 2
30 87***45 ANGLE; Accumulator Mounting Bracket; If Used 1
30 87***90 BRACKET; Accumulator Bracket 1
31 13***98 HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC; Incl 32 1
32 96***73 O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro 1
33 87***64 HYD TUBE,6.35 mm OD; Tube, Pilot Pressure 1
34 86***53 TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC 1
36 87***17 SEALING STRIP; Foam, Aux And Throttle 1
35 REF INSTRUCTION; Double Sided Tape, 25.4mm (1 in.) X 150mm (6 in.) Length; If Used
