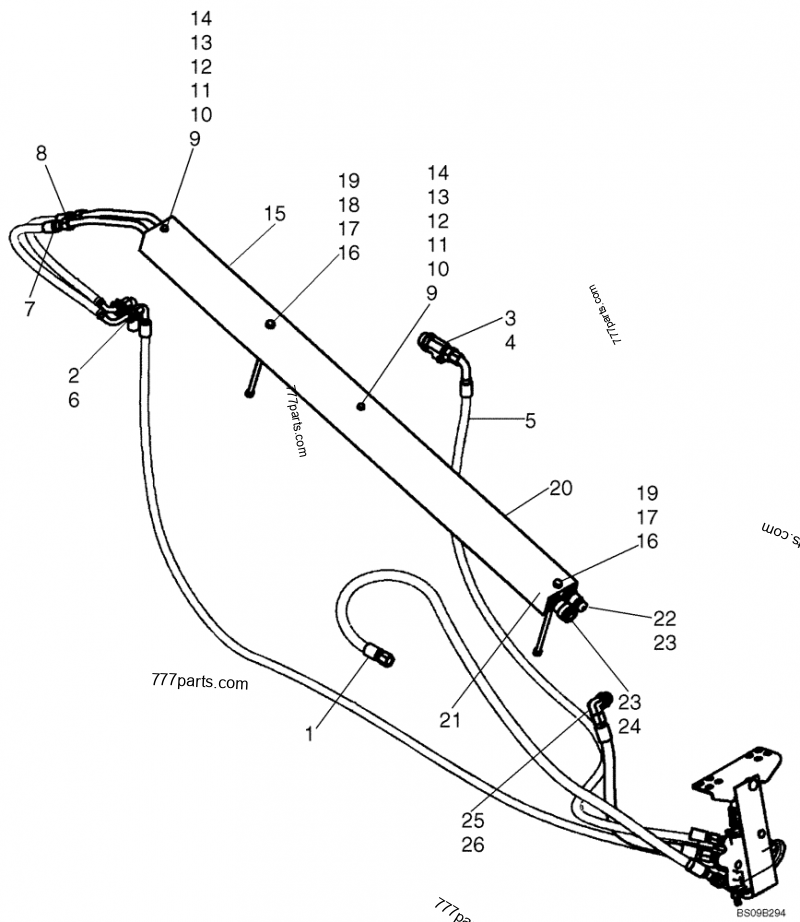

| 1 |
87***70 |
HOSE ASSY.; Secondary Auxiliary Outlet; 1650 mm (65 in); If Used |
1 |
| 1 |
87***93 |
HOSE ASSY.; Secondary Auxiliary Outlet; If Used |
1 |
| 2 |
10***98 |
SNAP RING,#X98, .822" Dia, E-Type; If Used |
4 |
| 2 |
87***28 |
SNAP RING; #X98, E-Style |
4 |
| 3 |
86***31 |
TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12 |
1 |
| 4 |
87***44 |
REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male |
1 |
| 5 |
87***77 |
HOSE ASSY.; Tank Return |
1 |
| 6 |
87***20 |
HOSE ASSY. |
2 |
| 7 |
87***74 |
HOSE ASSY.; 633 mm (25 in); If Used |
1 |
| 7 |
87***15 |
HOSE ASSY.; If Used |
1 |
| 8 |
87***73 |
HOSE ASSY.,12.7mm ID x 583mm L |
1 |
| 9 |
16***21 |
BOLT,M8 x 1.25 x 55mm, Cl 8.8 |
3 |
| 10 |
14***16 |
WASHER,M8 x 16mm OD x 1.6mm Thk |
2 |
| 11 |
25***A1 |
CLAMP |
2 |
| 12 |
25***A1 |
SPACER; 1/4, 31.25 long |
2 |
| 13 |
25***A1 |
PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk; PLATE,SPACER Bar Clamp Top |
2 |
| 14 |
19***A1 |
LEDGER PLATE; Bar Clamp Mounting |
2 |
| 15 |
87***71 |
HYD TUBE,15.88 mm OD |
2 |
| 16 |
86***77 |
BOLT,Hex, M10 x 245mm, Cl 8.8 |
2 |
| 17 |
14***17 |
WASHER,M10 x 20mm OD x 2mm Thk; C|FORD PRODUCTS USE THIS PART ....... 1 140017F NEW HOLLAND PRODUCTS USETHIS PART WASHER, M10 ....... 1 9820489 |
2 |
| 18 |
87***10 |
SPACER |
1 |
| 19 |
86***54 |
NUT,M10 x 1.5, Cl 10 |
2 |
| 20 |
87***65 |
COVER |
1 |
| 21 |
87***09 |
BRACKET |
1 |
| 22 |
87***08 |
COUPLING, BREAK AWAY; 1/2; Male; Incl. 87426762 |
1 |
|
87***62 |
RING |
1 |
| 23 |
59***60 |
BHD LOCK NUT,7/8" - 14 |
2 |
| 24 |
39***A1 |
COUPLING, BREAK AWAY; 1/2; Female |
1 |
| 25 |
84***70 |
90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB; Incl 26 |
1 |
| 26 |
16***66 |
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro |
1 |
