Case 420CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11))

COMPACT TRACK LOADERS Case 420CT
/case/420CT/m170/s-357.html / 08 HYDRAULICS / CONTROL VALVE - SPOOL END GROUP

Select modification

Select section

Subsection

Unit

3
5
7
9
1
2
8
4
6
9
2

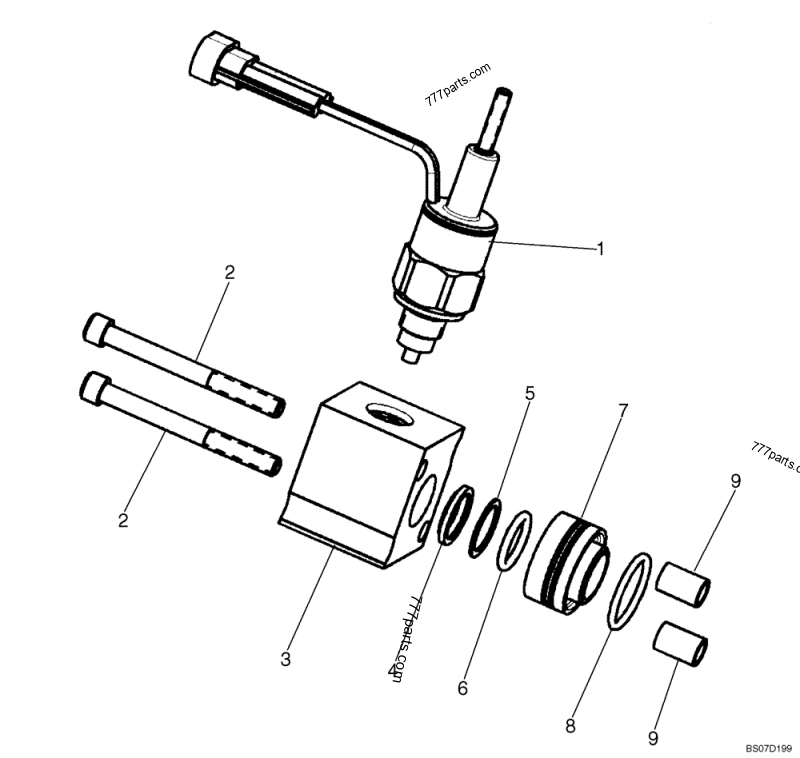

Part diagram CONTROL VALVE - SPOOL END GROUP - COMPACT TRACK LOADERS Case 420CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)) | 777parts.com

Subscribe to get access to part numbers.

Unlock Access
# Part No. Description Qty
87***49 SPOOL; Spool End Group; Incl. 1 - 9 1
1 87***88 SOLENOID,Spool Lockout, With Manual Override; Spool Lockout Solenoid With Manual Overide 1
2 NSS NOT SOLD SEPARAT; Cap Screw 2
3 NSS NOT SOLD SEPARAT; Spool Cap 1
4 NSS NOT SOLD SEPARAT; Wiper 1
5 NSS NOT SOLD SEPARAT; Washer 1
6 NSS NOT SOLD SEPARAT; O-Ring 1
7 NSS NOT SOLD SEPARAT; Spool Spacer 1
8 NSS NOT SOLD SEPARAT; O-Ring 1
9 NSS NOT SOLD SEPARAT; Spacer 2
