Case 420CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11))

COMPACT TRACK LOADERS Case 420CT
/case/420CT/m170/s-357.html / 08 HYDRAULICS / SECONDARY FRONT AUXILIARY - VALVE ASSY

Select modification

COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

• COMPACT TRACK LOADER - BSN N7M455401 (2/06-12/07)
• COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

Select section

All

• All

Subsection

All

• All

Unit

Select group

2

6

5

7

8

4

7

3

25

24

17

4

16

10

11

10

7

5

12

8

12

9

1

3

18

14

11

Subscribe to get access to part numbers.

Unlock Access

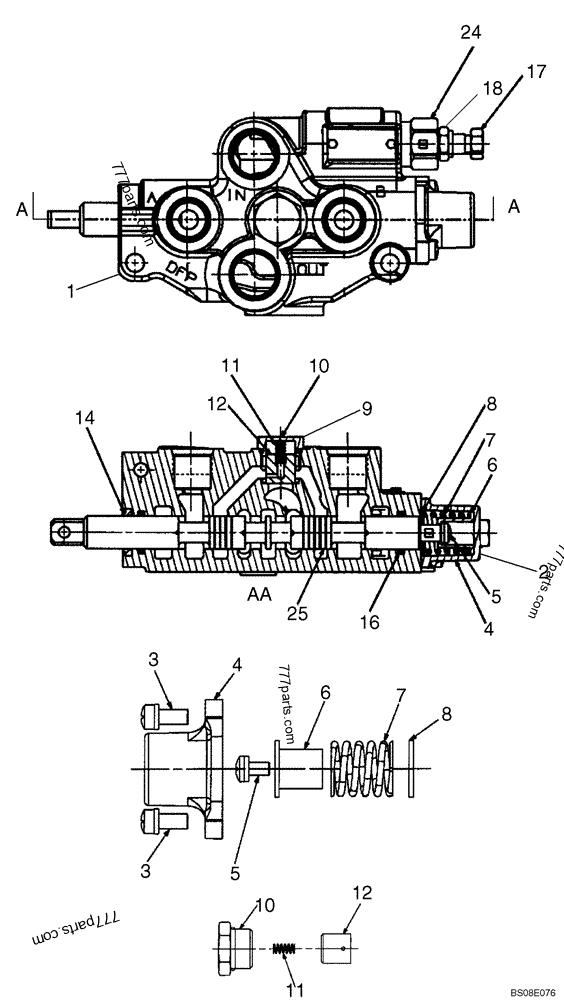

#	Part No.	Description	Qty
1	87***48	VALVE; Secondary Auxiliary Valve; Incl 2 - 25	1
2	87***74	SPRING KIT; Spring Center Kit; Incl 3 - 8	1
3	NSS	NOT SOLD SEPARAT; Screw	2
4	NSS	NOT SOLD SEPARAT; End Cap	1
5	NSS	NOT SOLD SEPARAT; Screw	1
6	NSS	NOT SOLD SEPARAT; Spacer	1
7	NSS	NOT SOLD SEPARAT; Spring	1
8	NSS	NOT SOLD SEPARAT; Washer	1
9	87***57	KIT; Load Check Kit; Incl 10 - 12	1
10	NSS	NOT SOLD SEPARAT; Check Plug	1
11	NSS	NOT SOLD SEPARAT; Load Check Spring	1
12	NSS	NOT SOLD SEPARAT; Poppet, Load Check	1
13	87***58	SEAL KIT; Seal Kit; Incl 14 - 23	1
14	NSS	NOT SOLD SEPARAT; Wiper Ring	1
15	NSS	NOT SOLD SEPARAT; O-Ring; Not Illustrated	1
16	NSS	NOT SOLD SEPARAT; O-Ring; Not Illustrated	2
17	NSS	NOT SOLD SEPARAT; Adjustment Screw	1
18	NSS	NOT SOLD SEPARAT; Lock Nut	1
19	NSS	NOT SOLD SEPARAT; O-Ring; Not Illustrated	1
20	NSS	NOT SOLD SEPARAT; O-Ring; Not Illustrated	1
21	NSS	NOT SOLD SEPARAT; O-Ring; Not Illustrated	1
22	NSS	NOT SOLD SEPARAT; Backup O-Ring; Not Illustrated	1
23	NSS	NOT SOLD SEPARAT; Backup O-Ring; Not Illustrated	1
24	NSS	NOT SOLD SEPARAT; Relief Valve Assembly	1
25	NSS	NOT SOLD SEPARAT; Spool	1
