| 1 |
84***60 |

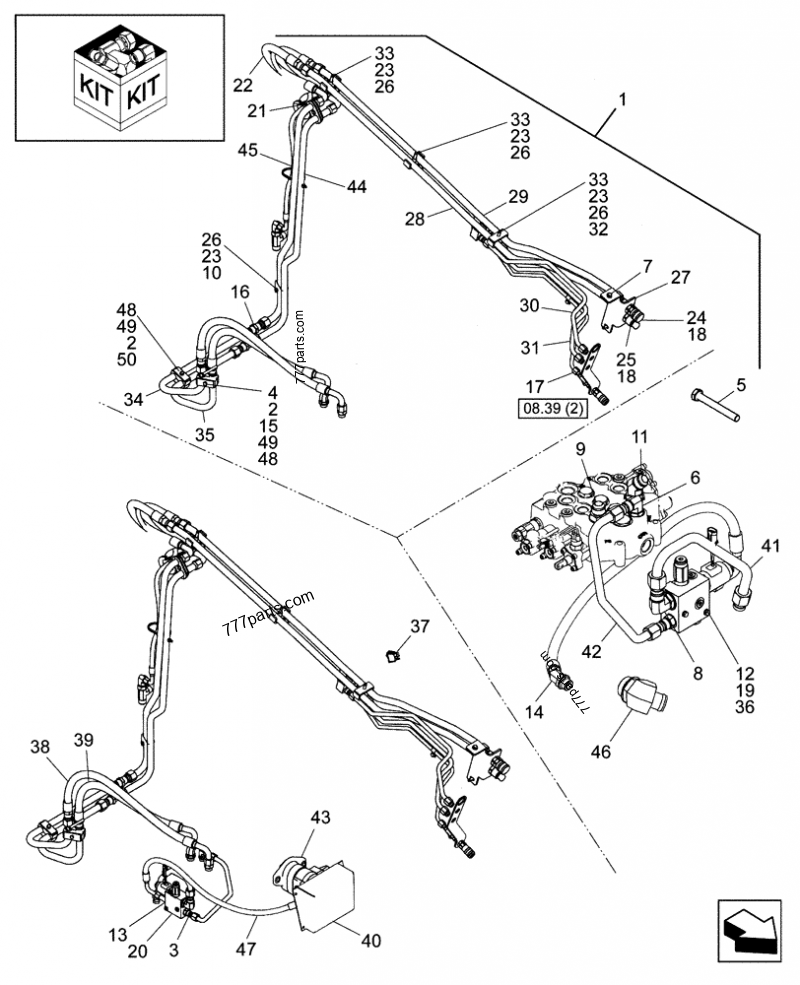

KIT; High Flow Bi-Directional Gear, Includes: Installation Instructions |
1 |
|
--***-- |
Refer to Installation Instructions for Correct Assembly Procedure. |
|
| 2 |
80***81 |
LOCK WASHER,5/16" |
2 |
| 3 |
86***71 |
HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB |
1 |
| 4 |
12***61 |
BOLT,Hex, M8 x 60mm L, Cl 8.8 |
1 |
| 5 |
12***73 |
BOLT,Hex, M10 x 86.58mm, Cl 8.8 |
1 |
| 6 |
16***10 |
90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB |
1 |
| 7 |
28***76 |
SELF-TAP SCREW,HWH, 3/8"-16 x 1" |
2 |
| 8 |
32***94 |
90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB |
1 |
| 9 |
32***96 |
HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC |
1 |
| 10 |
32***29 |
BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8 |
1 |
| 11 |
33***44 |
45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB |
1 |
| 12 |
33***13 |
BOLT,Hex, M6 x 60mm, Cl 8.8 |
2 |
| 13 |
96***10 |
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, Pipe |
1 |
| 14 |
96***89 |
ELBOW,45 Degree, 3/4"-16 x 7/8"-14, O-Ring |
1 |
| 15 |
96***98 |
NUT,M8 x 1.25, Cl 10 |
1 |
| 16 |
97***26 |
UNION,1-5/16" - 12 JIC x 1-5/16" - 12 JIC |
2 |
| 17 |
0C |
ORDER COMPONENTS; Case Drain, High Flow Kit |
1 |
|
--***-- |
84177566 |
|
| 18 |
86***44 |
BHD LOCK NUT,Blkhd, 1 5/16"-12 |
2 |
| 19 |
86***50 |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk |
2 |
| 20 |
87***69 |
VALVE; Combination |
1 |
| 21 |
87***99 |
SUPPORT |
2 |
| 22 |
87***48 |
HOSE,19.05mm ID x 675mm L |
2 |
| 23 |
87***43 |
BRACKET |
4 |
| 24 |
87***71 |
COUPLING, QUICK, FEM |
1 |
| 25 |
87***72 |
QUICK MALE COUPLING |
1 |
| 26 |
87***37 |
SPACER,11.1mm ID x 15.9mm OD x 25mm L |
4 |
| 27 |
87***98 |
BRACKET |
1 |
| 28 |
87***69 |
TUBE,25.40 mm OD |
1 |
| 29 |
87***70 |
HYD TUBE,25.40 mm OD |
1 |
| 30 |
87***71 |
HYD TUBE,15.88 mm OD |
1 |
| 31 |
87***72 |
HYD TUBE,15.88 mm OD |
1 |
| 32 |
87***83 |
PLATE,82mm L x 31.8mm W x 7.37mm Thk |
1 |
| 33 |
87***75 |
SCREW,Hex, 3/8" - 16 x 2-1/2" |
3 |
| 34 |
87***95 |
TUBE,25.40 mm OD x 556.80, 146.80 mm L |
1 |
| 35 |
87***96 |
HYD TUBE,25.40 mm OD x 439.50, 190.20 mm L |
1 |
| 36 |
87***92 |
SQUARE NUT,M6 x 1.0, Cl 8 |
2 |
| 37 |
87***69 |
SWITCH; Rocker, High Flow |
1 |
| 38 |
87***99 |
HOSE ASSY.; High Flow |
1 |
| 39 |
87***00 |
HOSE ASSY.; High Flow |
1 |
| 40 |
87***11 |
COVER; with Heelplate |
1 |
| 41 |
87***24 |
HYD TUBE,19.05 mm OD; High Flow Valve Return |
1 |
| 42 |
87***42 |
HYD TUBE,15.9 mm OD x 336.3, 196 mm L; High Flow Supply |
1 |
| 43 |
87***95 |
PUMP,36 CC; DB Gear, 2.20/0.87 CID |
1 |
| 44 |
87***00 |
HYD TUBE,19.3 mm ID x 25.4 mm OD x 1000.3, 338.6 mm L; High Flow Auxiliary |
1 |
| 45 |
87***26 |
HYD TUBE,19.3 mm ID x 25.4 mm OD x 1027.4, 129.5 mm L; High Flow Auxiliary |
1 |
| 46 |
87***98 |
HYD CONNECTOR |
1 |
| 47 |
87***67 |
HOSE,12.7mm ID x 930mm L; High Flow Supply |
1 |
| 48 |
15***C1 |
CLAMP,25.4mm ID x 82mm L |
2 |
| 49 |
25***A1 |
PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk; PLATE,SPACER |
3 |
| 50 |
43***30 |
BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8 |
1 |
