Case 420CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11))

COMPACT TRACK LOADERS Case 420CT
/case/420CT/m170/s-357.html / 09 CHASSIS / BUCKET, CUTTING EDGE (BOLT-ON CUTTING EDGE)

Select modification

COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

• COMPACT TRACK LOADER - BSN N7M455401 (2/06-12/07)
• COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

Select section

All

• All

Subsection

All

• All

Unit

Select group

4

9

7

BS04A101

8

5

6

2

1

3

Subscribe to get access to part numbers.

Unlock Access

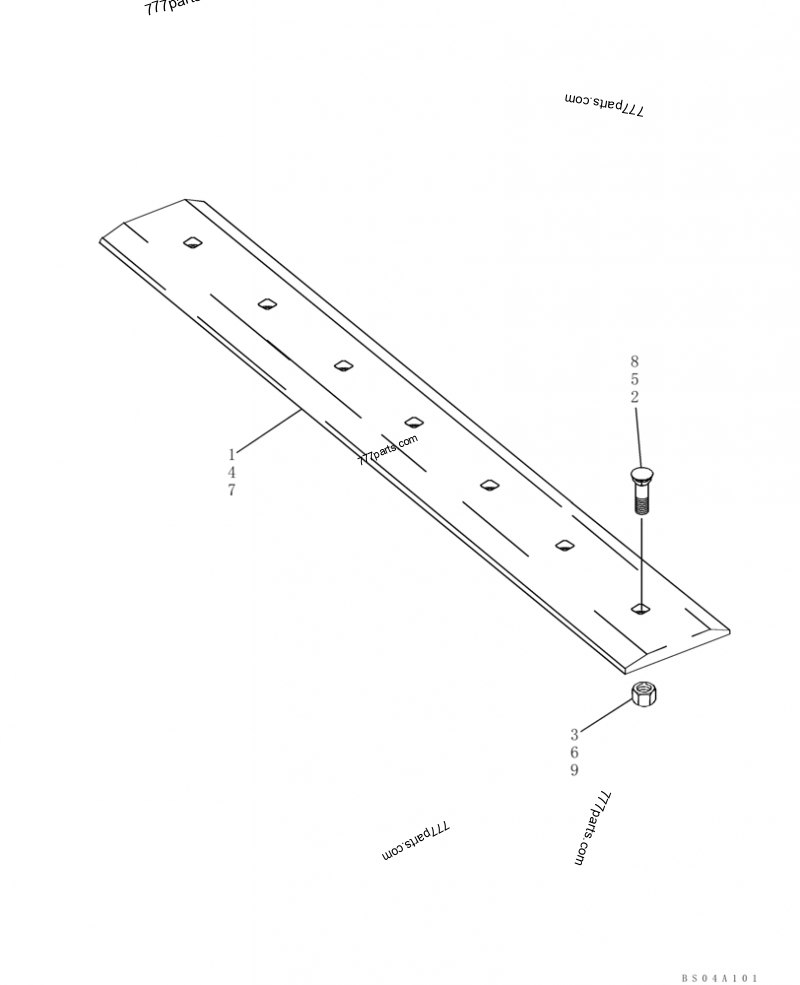

#	Part No.	Description	Qty
	43***A1	EDGE, CUTTING; Kit; 60 Inch; Incl. Ref 1 - 3; Order Components	1
1	87***89	CUTTING EDGE; 1524 mm (60 inch); Power Tan	1
1	86***65	CUTTING EDGE,Bolt On, Double Edged, 7 Hole, 203.2mm W x 1520.8mm L; 1524 mm (60 inch); Gray	1
2	86***38	PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5	7
3	42***10	NUT,5/8"-11, G5	7
	43***A1	EDGE, CUTTING; Kit; 66 Inch; Incl. Ref 4 - 6; Order Components	1
4	87***83	CUTTING EDGE; 7 Holes, 1676mm (66")	1
4	86***67	CUTTING EDGE,Bolt On, Double Edged, 7 Hole, 203.2mm W x 1673.2mm L; 1676 mm (66 inch); Gray	1
5	86***38	PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5	7
6	42***10	NUT,5/8"-11, G5	7
	43***A1	EDGE, CUTTING; Kit; 72 Inch; Incl. Ref 7 - 9; Order Components	1
7	87***88	CUTTING EDGE,Bolt On, Double Edged, 7 Hole, 203.2mm W x 1825.6mm L; 7 Holes, 1829 mm (72")	1
7	86***69	CUTTING EDGE,Bolt On, Double Edged, 7 Hole, 203.2mm W x 1825.6mm L; 1829 mm (72 inch); Gray	1
8	86***38	PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5	7
9	42***10	NUT,5/8"-11, G5	7
	43***A1	EDGE, CUTTING; Kit; 78 Inch; Incl. Ref 7 - 9	1
7	87***87	CUTTING EDGE,Bolt On, 9 Hole, 203.2mm W x 2016.1mm L, Power Tan; Power Tan	1
7	86***71	CUTTING EDGE,78", Gray; Gray	1
8	86***38	PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5	7
9	28***74	NUT,Hex, 5/8" - 11, Gr 5	7
	43***A1	EDGE, CUTTING; Kit; 84 Inch; Incl. Ref 7 - 9; Order Components	1
7	86***73	CUTTING EDGE,Bolt On, 9 Hole, 203.2mm W x 2168.5mm L; 2134 mm (84 inch); Gray	1
8	86***38	PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5	9
9	42***10	NUT,5/8"-11, G5	9
