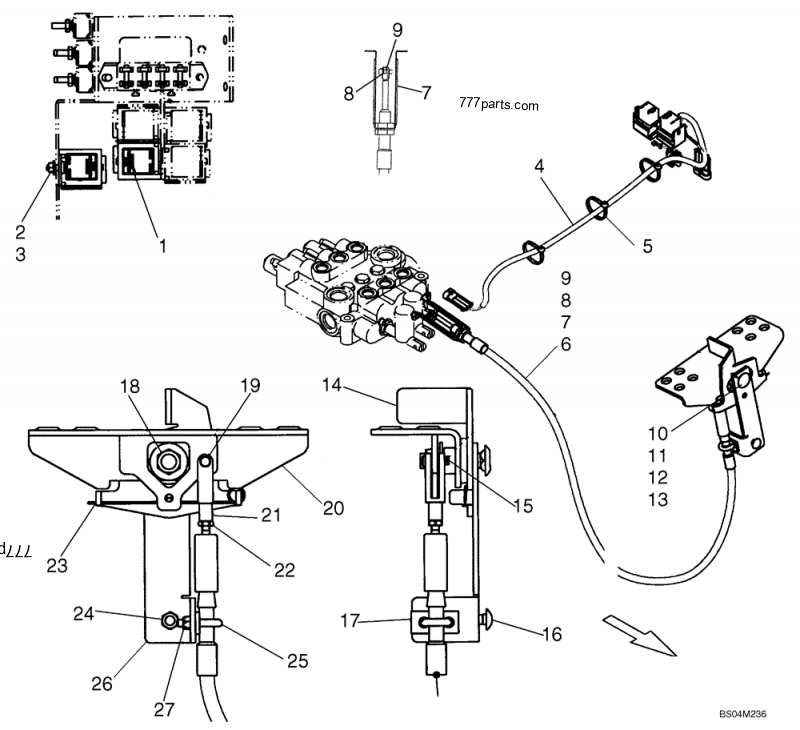

| 1 |
87***37 |
RELAY,12V, 45A; 45 Amp; MFG # Stamped On Case - 4RD 931 680-01; If Used |
1 |
| 1 |
87***36 |
RELAY,12V, 40 Amp; 40 amp, 12 V, Heavy Duty; If Used |
2 |
| 2 |
86***06 |
SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"; If Used |
1 |
| 2 |
80***82 |
SCREW,Phillips Drive, Pan HD, M5 x 12mm, Cl 4.8; M5 x 10; If Used |
1 |
| 2 |
80***82 |
SCREW,Phillips Drive, Pan HD, M5 x 12mm, Cl 4.8 |
1 |
| 3 |
87***03 |
NUT; If Used |
1 |
| 3 |
80***16 |
NUT,M5; M5, Flg Ser; If Used |
1 |
| 4 |
87***42 |
HARNESS; Auxiliary Hydraulic Interlock; Incl. Diode 774735 |
1 |
|
77***35 |
DIODE,6A |
1 |
| 5 |
L1***31 |
CABLE TIE,375.9mm L, Nylon; CABLE STRAP If Used |
3 |
| 5 |
L1***41 |
CABLE TIE,203.2mm L, Nylon; CABLE STRAP Black |
3 |
| 6 |
87***56 |
CABLE ASSY.; Incl. 7 - 9 |
1 |
| 7 |
87***83 |
BRACKET |
1 |
| 8 |
42***71 |
CLEVIS PIN,3/16" x .719" |
1 |
| 9 |
28***36 |
COTTER PIN,1/16" x 1/2" |
1 |
| 10 |
87***76 |
BOLT; Custom Shoulder Bolt, 12mm Shoulder X M10 X 1.5 Thd |
1 |
| 10 |
87***90 |
CARRIAGE BOLT,Sht Sq Nk, M12 x 55mm, Cl 8.8; No Longer Used, Order 87609276 |
1 |
| 11 |
81***41 |
WASHER,0.5" ID x 1.25" OD x 0.08" Thk |
1 |
| 12 |
28***A1 |
SPACER |
1 |
| 13 |
L1***81 |
BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L |
1 |
| 14 |
87***14 |
LEVER; Pedal Lock |
1 |
| 15 |
D1***83 |
COTTER PIN,1.04mm OD x 21.4mm L, Ring |
1 |
| 16 |
86***86 |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8 |
1 |
| 17 |
H3***79 |
LARGE PLATE; PLATE, LARGE |
1 |
| 18 |
86***89 |
NUT,M10 x 1.5, Cl 10 |
1 |
| 18 |
41***72 |
NUT,Hex, M12 x 1.75, Cl 10; No Longer Used, Order 86500689 |
1 |
| 19 |
23***26 |
CLEVIS PIN,6.29mm OD x 20mm L |
1 |
| 20 |
87***33 |
PEDAL ASSY.; If Used |
1 |
| 20 |
87***62 |
PEDAL |
1 |
| 21 |
86***36 |
ADJUSTABLE CLEVIS,1/4" - 28 |
1 |
| 22 |
86***64 |
JAM NUT,Jam, 1/4"-28, G5 |
1 |
| 23 |
30***A2 |
SPRING; Pedal Lock Lever |
1 |
| 24 |
96***98 |
NUT,M8 x 1.25, Cl 10 |
1 |
| 25 |
87***39 |
ROD; M6 |
1 |
| 26 |
87***54 |
BRACKET |
1 |
| 27 |
86***40 |
NUT,M6, Cl 10 |
2 |
