Case 420CT (COMPACT TRACK LOADER - BSN N7M455401 (2/06-12/07))

COMPACT TRACK LOADERS Case 420CT
/case/420CT/m170/s-356.html / 09 CHASSIS / CAB DOOR - SPRING ASSIST MOUNTED TO WIPER MOTOR COVER
Ref. 26, 395264A2, Gas shock mounts to wiper motor cover. Door opens to 75 degrees.

Select modification

Select section

  • All

Subsection

  • All

Unit

15
1
14
10
14
25
17
13
16
12
2
19
8
14
3
5
13
11
16
13
16
6
9
13
4
24
23
7
18
20
21
22
14

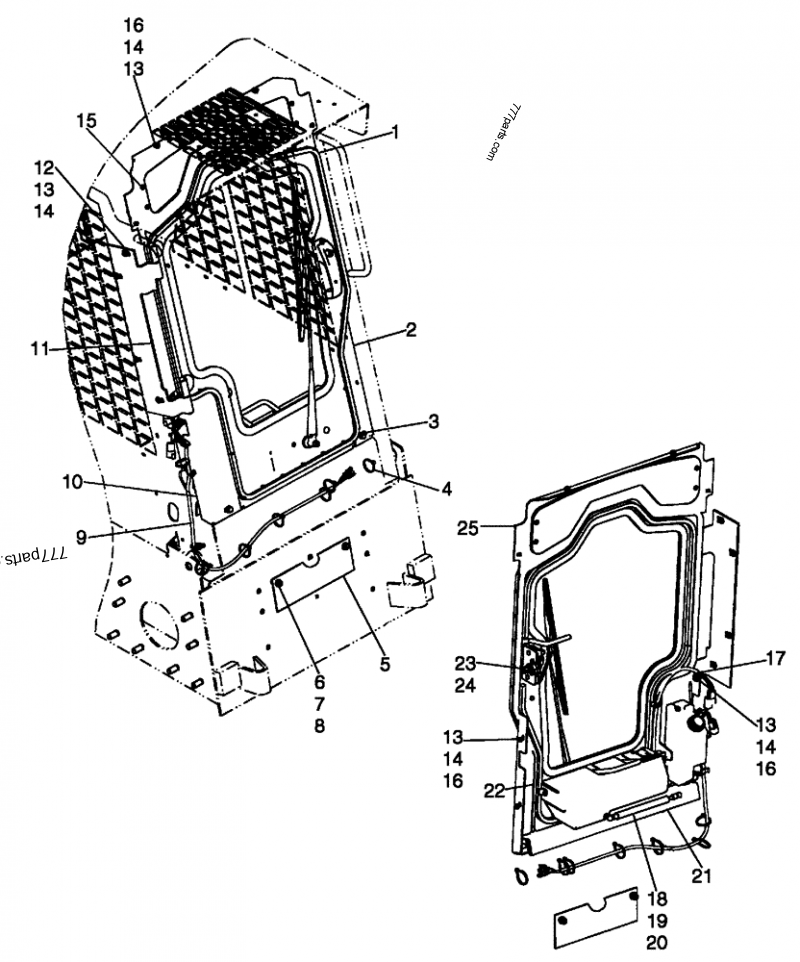

Part diagram CAB DOOR - SPRING ASSIST MOUNTED TO WIPER MOTOR COVER - COMPACT TRACK LOADERS Case 420CT (COMPACT TRACK LOADER - BSN N7M455401 (2/06-12/07)) | 777parts.com

Subscribe to get access to part numbers.

Unlock Access
# Part No. Description Qty
1 87***81 DOOR ASSY.; See Figure 09-25B 1
2 87***53 PANEL; Left Hand 1
3 87***29 SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"; Hex Wash Hd, 3/8"-16 x 7/8" 2
4 L1***31 CABLE TIE,375.9mm L, Nylon; CABLE STRAP 10
5 87***48 PLATE; Front Plate 1
6 43***39 BOLT,M10 x 1.5 x 25mm, Cl 8.8; C|O&K BERLIN : NUT - ORDER THE REFERENCE ....... 1 BER43139 IF LOOKING FOR BOLT, M10X25 FULL 8.8 ZND, ORDER 2975077 ....... 1 2975077 2
7 86***54 NUT,M10 x 1.5, Cl 10 2
8 14***17 WASHER,M10 x 20mm OD x 2mm Thk; C|FORD PRODUCTS USE THIS PART ....... 1 140017F NEW HOLLAND PRODUCTS USETHIS PART WASHER, M10 ....... 1 9820489 4
9 87***53 WIRE HARNESS; Door Jumper 1
10 87***54 PANEL; Right Hand 1
11 87***42 HINGE 1
12 87***61 NUT,M6 x 1, Cl 8 4
13 86***82 WASHER,6.6mm ID x 18mm OD x 1.6mm Thk 16
14 12***00 BOLT,M6 x 20mm, Cl 8.8 12
15 86***37 SELF-TAP SCREW,Hex Hd, M6.3 x 13 2
16 86***44 FLANGE NUT,Hex, M6 x 1 8
17 51***95 CLAMP,J, 7/16" Insul, 3/8" Bolt; 9.5 mm Insulated J 3/8 in Bolt 1
18 98***77 FLANGE NUT,Hex, M8 x 1.25, Cl 8; Gas Strut 395264A2 Is Part Of Door Assy; See Fig 09-25B 1
19 14***16 WASHER,M8 x 16mm OD x 1.6mm Thk 2
20 18***A1 BALL STUD,M8 x 1.25; Ball, Metric; M8 x 1.25 1
21 87***55 CHANNEL; Threshold 1
22 87***31 EDGE; Trim, Left Hand Panel 1
23 28***80 NUT,7/16"-14, GC 1
24 86***55 WASHER,13.3mm ID x 24.5mm OD x 3mm Thk; M12 x 24.5 x 3, HT 1
25 87***46 PANEL; See Figure 09-25C 1
26 39***A2 GAS STRUT; Gas Shock, Extended Length 400mm (15 3/4 in.) 1
