Case 420CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11))

COMPACT TRACK LOADERS Case 420CT
/case/420CT/m170/s-357.html / 09 CHASSIS / CAB - ROPS PIVOT ASSIST

Select modification

COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

• COMPACT TRACK LOADER - BSN N7M455401 (2/06-12/07)
• COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

Select section

All

• All

Subsection

All

• All

Unit

Select group

6

10

7

1

8

2

1

9

5

2

3

4

2

5

6

2

Subscribe to get access to part numbers.

Unlock Access

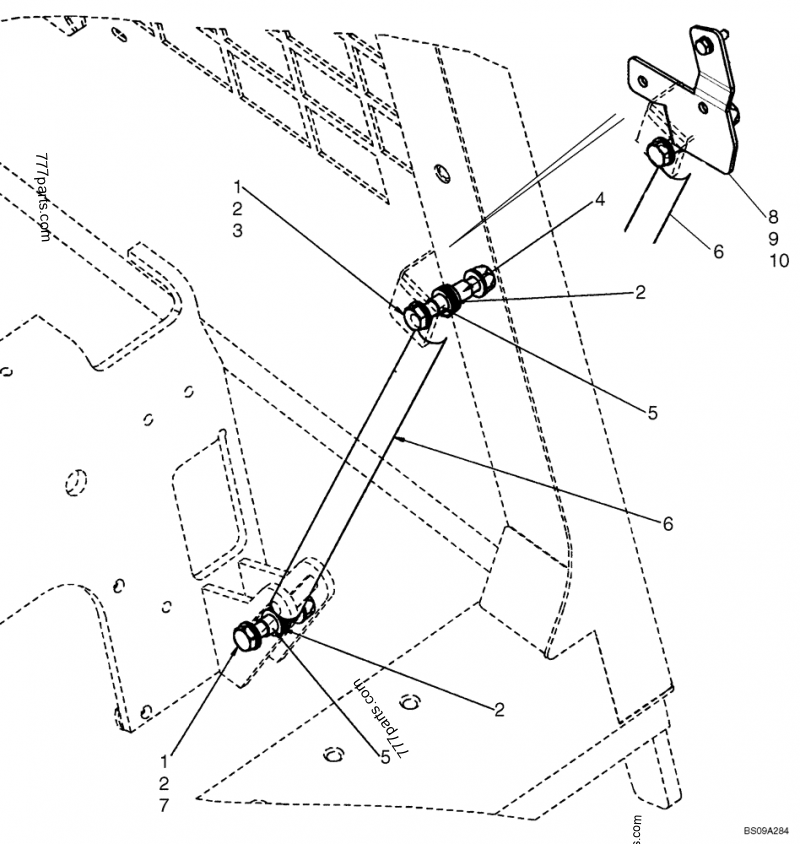

#	Part No.	Description	Qty
1	86***54	NUT,M10 x 1.5, Cl 10	2
2	86***76	WASHER,11mm ID x 20mm OD x 2mm Thk	10
3	43***44	BOLT,Hex, M10 x 70mm, Cl 8.8	1
4	25***A1	SPACER; Pivot Spacer, 12.7mm OD X 14.5mm Length	1
5	25***A1	SPACER; Pivot Spacer, 12.7mm OD X 9.0mm Length	3
6	37***A1	GAS STRUT; Gas Spring, ROPS Pivot Assist	1
7	12***70	BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8	1
8	87***17	BRACKET; Cup Holder	1
9	12***00	BOLT,M6 x 20mm, Cl 8.8	1
10	86***50	WASHER,6.6mm ID x 12mm OD x 1.6mm Thk	1
