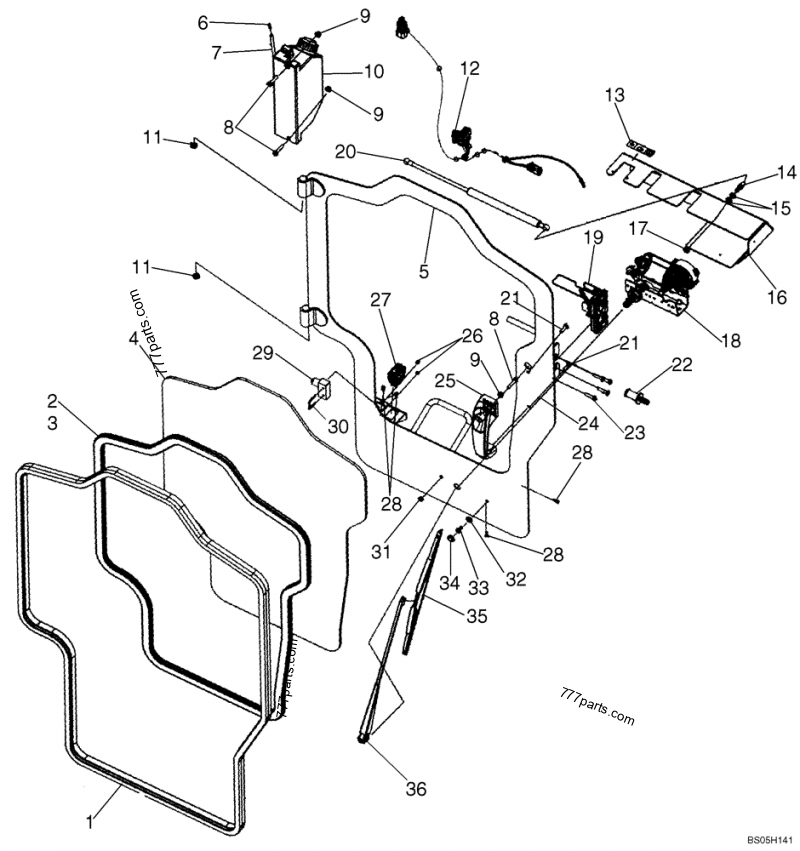

87***81 |
DOOR ASSY.; Incl. 1 - 36 |
1 |
| 1 |
87***50 |
DOOR SEAL,3327.4mm L; Bulb, Clip On |
1 |
| 2 |
87***49 |
RUBBER STRIP,2489.2mm L; Rubber |
1 |
| 3 |
87***48 |
STRIP; Rubber |
1 |
| 4 |
87***89 |
GLASS; Glass Front Door |
1 |
| 4 |
87***75 |
DOOR PANEL; Polycarbonate Front Door |
1 |
| 5 |
87***41 |
DOOR ASSY. |
1 |
| 6 |
87***50 |
FITTING; Double Barb; Replaces 87461214 |
1 |
| 7 |
87***49 |
HOSE; .188 Dia., 28 in Length |
1 |
| 8 |
86***32 |
SCREW,Phillips Drive, Pan HD, M6 x 30mm, Cl 4.8 |
3 |
| 9 |
98***76 |
FLANGE NUT,Hex, M6 x 1, Cl 8 |
3 |
| 10 |
87***48 |
WINDSHIELD WASHER; Incl. Cap 257884A1, Bottle 87458049, Pump 87458050, And Grommet 87458051 |
1 |
|
25***A1 |
CAP |
1 |
|
87***49 |
BOTTLE |
1 |
|
87***50 |
PUMP |
1 |
|
87***51 |
GROMMET |
1 |
| 11 |
87***11 |
BUSHING |
2 |
| 12 |
87***52 |
WIRE HARNESS |
1 |
| 13 |
87***44 |
DECAL; Windshield Wiper |
1 |
| 14 |
18***A1 |
BALL STUD,M8 x 1.25 |
1 |
| 15 |
14***16 |
WASHER,M8 x 16mm OD x 1.6mm Thk |
2 |
| 16 |
87***45 |
DOOR COVER |
1 |
| 17 |
98***77 |
FLANGE NUT,Hex, M8 x 1.25, Cl 8 |
1 |
| 18 |
87***94 |
WIPER MOTOR; MOTOR, WIPER |
1 |
| 19 |
87***47 |
LATCH |
1 |
| 20 |
39***A2 |
GAS STRUT |
1 |
| 21 |
86***30 |
SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8 |
1 |
| 22 |
87***15 |
STOP; Striker Bolt |
1 |
| 23 |
86***31 |
SCREW,Phillips Drive, Pan HD, M6 x 25mm |
4 |
| 24 |
87***87 |
CAP |
2 |
| 25 |
87***46 |
LOCKING HANDLE |
1 |
|
87***04 |
DOOR LOCK KEY |
1 |
| 26 |
19***03 |
NUT,Keps, w/LW,#6-32; Nylon Locking |
2 |
| 27 |
87***55 |
SWITCH; Windshield Wiper |
1 |
| 28 |
87***69 |
SCREW,Pan, #8 - 32 x 1/2"; 8-32 x .500 |
4 |
| 29 |
39***A2 |
SWITCH; Seat Bar |
1 |
| 30 |
H4***14 |
U-BOLT |
1 |
| 31 |
87***16 |
GROMMET |
1 |
| 32 |
87***54 |
RETAINER |
1 |
| 33 |
49***58 |
SCREW,Cross Pan Hd, 1/4"-28 x 1/2" |
1 |
| 34 |
87***53 |
COVER |
1 |
| 35 |
87***96 |
WIPER BLADE; BLADE, WIPER |
1 |
| 36 |
87***95 |
WIPER ARM |
1 |
