Case 420CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11))

COMPACT TRACK LOADERS Case 420CT
/case/420CT/m170/s-357.html / 09 CHASSIS / DEMOLITION DOOR

Select modification

COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

• COMPACT TRACK LOADER - BSN N7M455401 (2/06-12/07)
• COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

Select section

All

• All

Subsection

All

• All

Unit

Select group

18

14

15A

19

16

7

6

12

17

13

5

1

26

23

10

9

11

21

25

28

24

4

8

27

20

29

15

22

2

3

Subscribe to get access to part numbers.

Unlock Access

#	Part No.	Description	Qty

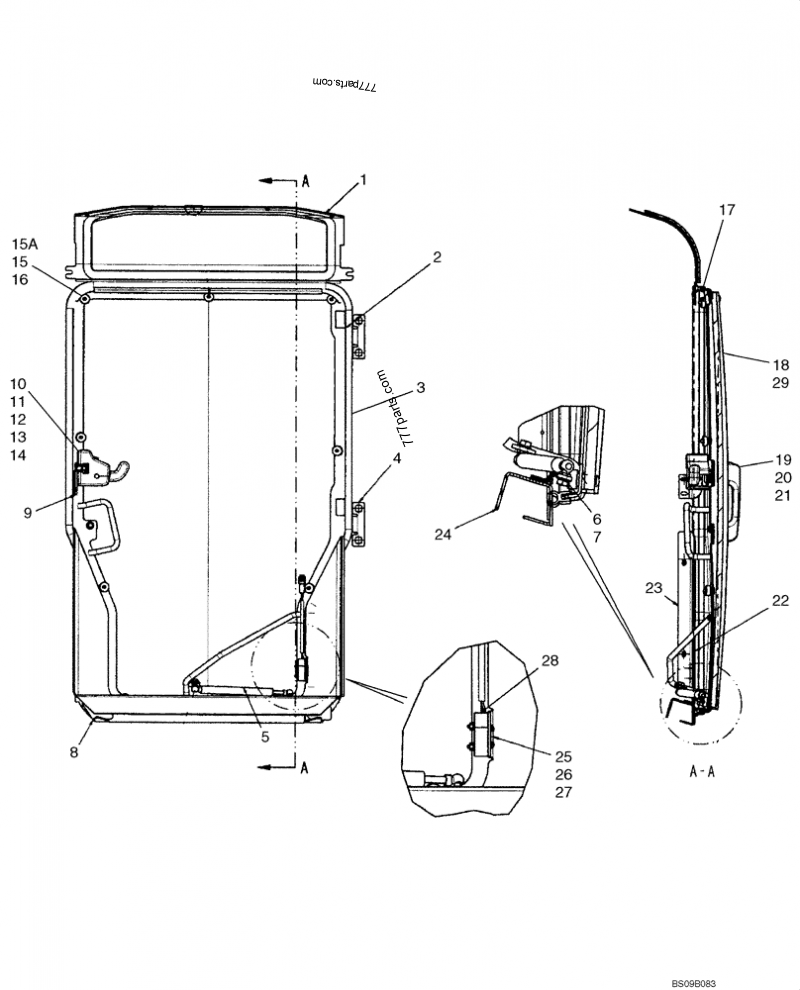

1	87***21	WINDOW; Visor; See Fig 09-27	1
2	87***53	SPACER,10.21mm ID x 15.88mm OD x 2.03mm L; Bushing	2
3	NSS	NOT SOLD SEPARAT; Frame, Demolition Door	1
4	87***83	HINGE; Door Hinge	2
5	87***37	GAS STRUT; Gas Spring	1
	25***A1	CLIP; Used to hold on Gas Strut; Not Shown	1
6	86***01	FLANGE NUT,M8 x 1.25, Cl 8	1
7	87***69	BALL STUD,M8 x 29.50mm L; Ball Stud	1
8	87***10	BRACKET; Bracket, Lower Door LH, Black	1
9	87***94	STRIKER PLATE; Latch	1
10	87***99	LATCH; Rotary Latch	1
11	86***63	SCREW,Phillips Drive, Flat HD, M6 x 25mm, Cl 4.8; Screw, M6 X 25	3
12	87***40	SPACER	3
13	87***69	BOLT,Hex, M6 x 35mm, Cl 8.8; Bolt, M6 X 35	3
14	86***00	FLANGE NUT,M6 x 1, Cl 8	2
15	87***04	KNOB; Quick Release Knob	9
16	41***27	CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8	9
17	87***41	SEAL,3276mm L; Bulb Seal	1
18	NSS	NOT SOLD SEPARAT; Polycarbonate Door	1
18	87***46	SERVICE KIT; Kit, Demolition Door; Incl 15, 16, 18, 29; If Used	1
18	84***18	KIT; Kit, Demolition Door; Incl 15, 18, 29	1
19	60***T1	HANDLE; Door Handle	1
19A	19***C2	IGNITION KEY; Ignnition Switch	1
20	87***84	SEAL; Handle Seal, Lower	2
21	87***71	SEAL; Handle Seal, Upper	2
22	87***15	BRACKET; Lower Door Bracket, RH, Black	1
23	87***15	PLATE; Spacer	1
24	87***47	PLATE; Threshold, Black	1
25	87***73	U-BOLT; U Bolt, Switch Mounting; If Used	1
25	87***56	SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-3/8"; 6-32 X 1-3/8 Pan Hd	2
26	87***23	WASHER,0.16" ID x 0.38" OD x 0.05" Thk; Washer, .156 X .375 X .049 in; If Used	2
26	86***89	WASHER,0.16" ID x 0.38" OD x 0.05" Thk; Washer, .156 X .375 X .049 in; If Used	4
27	87***67	NUT; Nut, #6-32; If Used	2
28	28***59	NUT,Keps, #6-32; If Used	2
28	87***10	DOOR SWITCH; Seat Bar Switch	1
	NSS	NOT SOLD SEPARAT; Foam Gasket	1

DEMOLITION DOOR - COMPACT TRACK LOADERS Case 420CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)) | 777parts.com
