Case 420CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11))

COMPACT TRACK LOADERS Case 420CT
/case/420CT/m170/s-357.html / 09 CHASSIS / DEMOLITION DOOR SUB

Select modification

COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

• COMPACT TRACK LOADER - BSN N7M455401 (2/06-12/07)
• COMPACT TRACK LOADER - SERIES 3, ASN N7M455401 (1/08-3/11)

Select section

All

• All

Subsection

All

• All

Unit

Select group

4

1

12

8

11

9

7

10

2

3

6

5

Subscribe to get access to part numbers.

Unlock Access

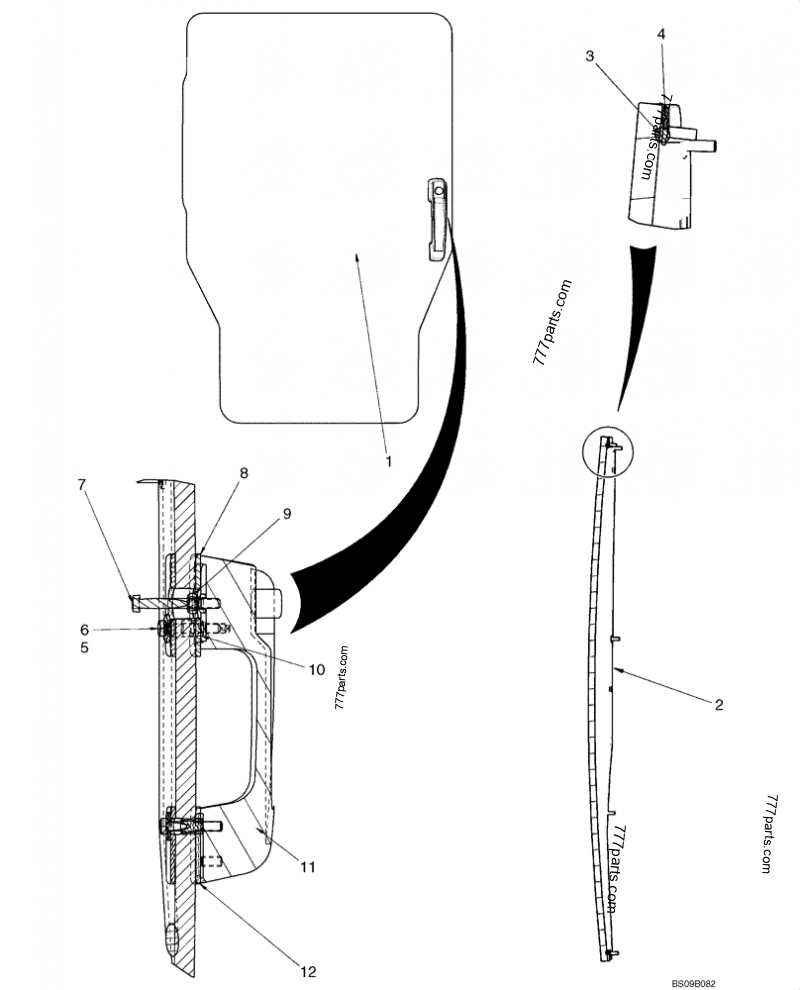

#	Part No.	Description	Qty
1	87***89	DOOR; Polycarbonate Glass Only	1
2	NSS	NOT SOLD SEPARAT; Frame W/ Sub Assy	1
3	87***80	ADHESIVE; Window Adhesive
4	87***21	SPACER; Glue	8
5	86***15	WASHER,6.6mm ID x 18mm OD x 1.6mm Thk; 6.6 x 18 x 1.6mm	3
6	87***69	BOLT,Hex, M6 x 35mm, Cl 8.8; Hex M6 x 35 Full 8.8 BZN	3
7	87***04	BOLT,Hex, 1/4" - 20 x 2", Gr 5	1
8	87***71	SEAL; Upper Handle Mounting	2
9	13***69	NUT,1/4"-20, G5	1
10	87***40	SPACER; Wiper Motor	3
11	60***T1	HANDLE; Cab Door Handle	1
12	87***84	SEAL; Lower Handle Mounting	2
