Case 440CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M483467 (1/08-3/11))

COMPACT TRACK LOADERS Case 440CT
/case/440CT/m176/s-366.html / 02 ENGINE / TURBOCHARGER - PLUMBING

Select modification

COMPACT TRACK LOADER - SERIES 3, ASN N7M483467 (1/08-3/11)

• COMPACT TRACK LOADER - SERIES 3, ASN N7M483467 (1/08-3/11)
• COMPACT TRACK LOADER - BSN N7M483467 (3/06-12/07)

Select section

All

• All

Subsection

All

• All

Unit

Select group

5

10

9

4

1A

1B

8

1

13

2

12

11

6

7

3

6B

6A

Subscribe to get access to part numbers.

Unlock Access

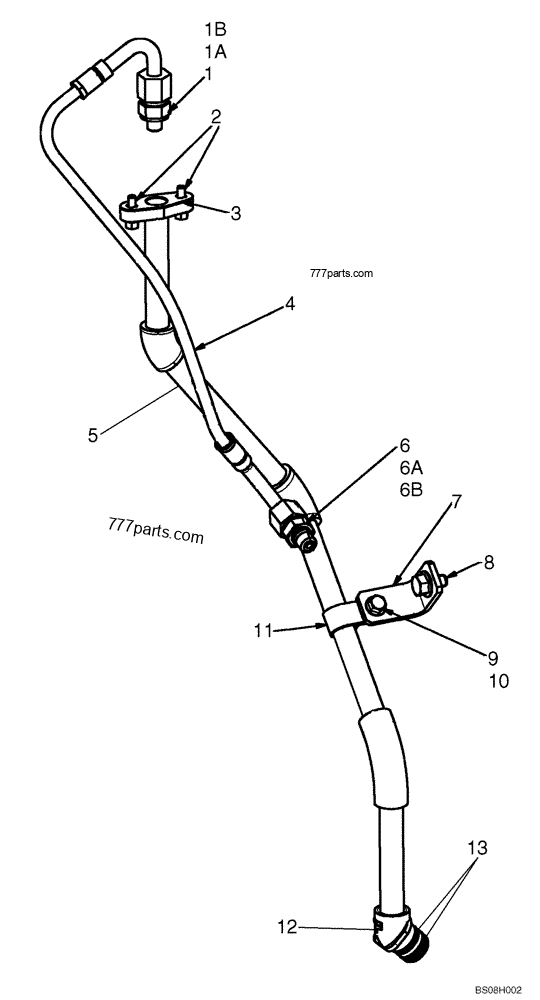

#	Part No.	Description	Qty
1	48***06	HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB; Male; Incl 1A, 1B	1
1A	48***08	O-RING,0.364mm ID x 0.07mm Width	1
1B	48***06	HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB; Washer	1
2	48***64	SCREW,Hex, Flg Hd, M6 x 16	2
3	48***67	GASKET; Oil Drain	1
4	48***77	HOSE; Flexible	1
5	28***47	PIPE; Pipe Assy; Turbo Oil Drain; Incl 13	1
6	28***15	HYD CONNECTOR,Hex, M12 x 1.5 x 6.7mm ID x 32mm L; Connector; Incl 6A, 6B	1
6A	48***08	O-RING,0.364mm ID x 0.07mm Width	1
6B	48***06	HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB	1
7	28***96	BRACKET; Turbo Plumbing	1
8	28***23	SCREW,M8 x 1.25 x 14mm; M8 x 1.25 x 14	1
9	28***01	FLANGE BOLT,Hex, M6 x 16mm	1
10	28***97	FLANGE NUT,M6 x 1	1
11	48***19	CLAMP,M16, M6 Bolt	1
12	NSS	NOT SOLD SEPARAT; Connector, Turbo Oil Drain	1
13	28***01	O-RING	2

TURBOCHARGER - PLUMBING - COMPACT TRACK LOADERS Case 440CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M483467 (1/08-3/11)) | 777parts.com
