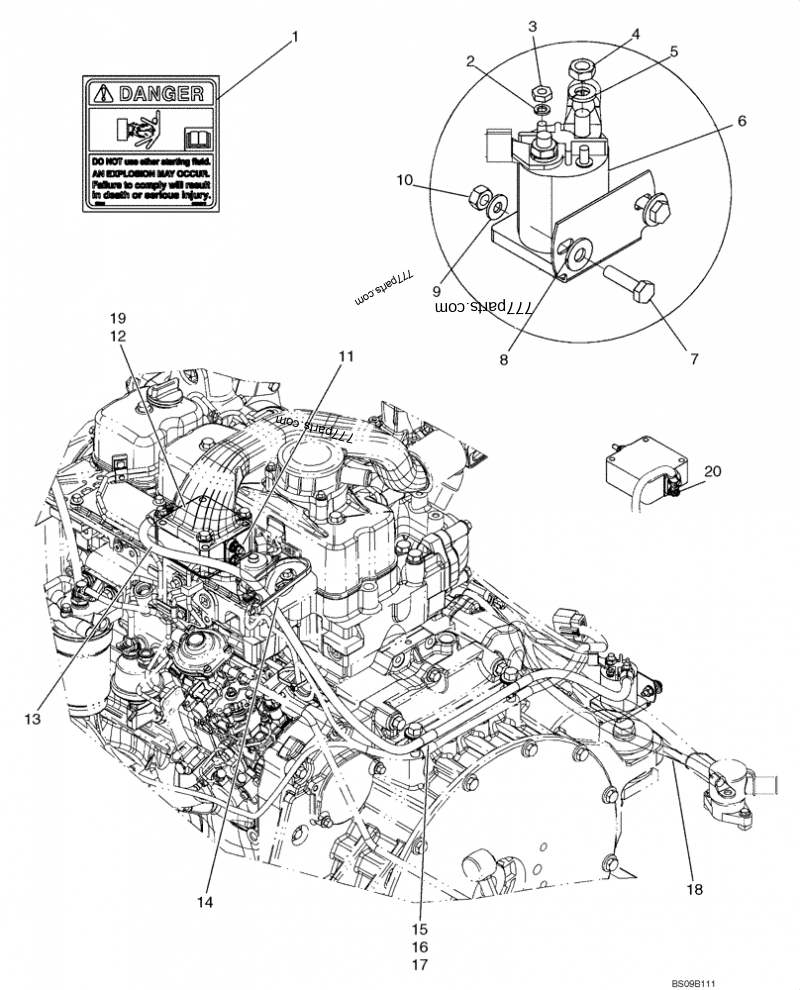

#	Part No.	Description	Qty
1	62***86	DANGER DECAL; Decal, Danger; If Used	1
2	80***84	LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk	1
3	87***25	NUT,#10-32	1
4	96***68	JAM NUT,Jam, 5/16"-18, G2	2
5	80***81	LOCK WASHER,5/16"	2
6	87***68	SOLENOID SWITCH	1
7	88***46	BOLT,Hex, 1/4" - 20 x 1", Gr 5	2
8	80***01	WASHER,0.31" ID x 0.73" OD x 0.07" Thk
9	32***57	BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk	2
10	77***70	NUT,Hex, 1/4 - 20, Cl 5	2
11	86***44	FLANGE NUT,Hex, M6 x 1; If Used
12	82***72	HEATER; Grid Heater; If Used	1
13	87***58	NEG BATTERY CABLE; 1224mm (48 3/16 in.) Length	1
14	L1***31	CABLE TIE,375.9mm L, Nylon; CABLE STRAP If Used	1
15	96***88	BOLT,Hex, M12 x 35mm, Cl 8.8; If Used	2
16	87***03	SPACER,13.51mm ID x 19.05mm OD x 17.5mm Thk; If Used	2
17	87***88	CLAMP,11.1mm, Coat, 13.5mm Bolt Hole, P Type; Closed 11.1mm Insul 1/2 Bolt; If Used	2
17	86***95	CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type	2
18	87***62	CABLE,595mm L; 595mm (23 7/16 in.) Length	1
19	86***51	GASKET,93mm L x 98mm L; Gasket, Air Intake To Grid Heater; If Used	2
20	87***15	BAR; Terminal Jumper Bar	1
