Case 440CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M483467 (1/08-3/11))

COMPACT TRACK LOADERS Case 440CT
/case/440CT/m176/s-366.html / 04 ELECTRICAL SYSTEMS / HEADLAMPS AND MOUNTING (NA)

Select modification

COMPACT TRACK LOADER - SERIES 3, ASN N7M483467 (1/08-3/11)

• COMPACT TRACK LOADER - SERIES 3, ASN N7M483467 (1/08-3/11)
• COMPACT TRACK LOADER - BSN N7M483467 (3/06-12/07)

Select section

All

• All

Subsection

All

• All

Unit

Select group

7

5

1

3

1

3

4

6

1

4

9

1

8

2

2

1

Subscribe to get access to part numbers.

Unlock Access

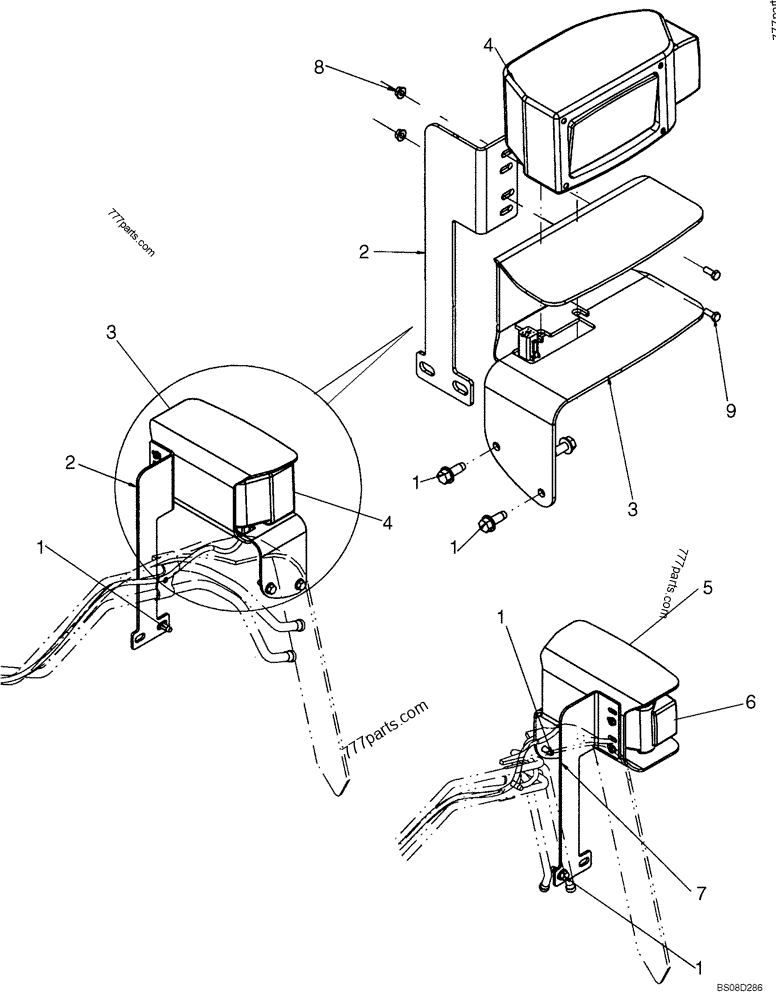

#	Part No.	Description	Qty
1	28***76	SELF-TAP SCREW,HWH, 3/8"-16 x 1"	4
2	87***21	BRACKET, SUPPORTING; Support Bracket, LH	1
3	87***46	BRACKET; Light Bracket, LH	1
4	85***85	LH HEADLAMP,12V; See Fig 04-21	1
5	87***45	BRACKET; Light Bracket, RH	1
6	85***84	RH HEADLAMP,T4W, 12V, 4W; See Fig 04-20	1
7	87***23	BRACKET, SUPPORTING; Light Bracket, RH	1
8	86***44	FLANGE NUT,Hex, M6 x 1	4
9	86***68	BOLT,Hex, M6 x 1 x 16mm, Cl 8.8	4
10	12***06	BOLT,M8 x 1.25 x 45.45mm, Cl 8.8	2
11	86***13	WASHER,9mm ID x 24mm OD x 2mm Thk	2
12	98***77	FLANGE NUT,Hex, M8 x 1.25, Cl 8	2
13	D5***18	SEAL, GLASS,76mm L; Trim Edge	2
