Case 440CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M483467 (1/08-3/11))

COMPACT TRACK LOADERS Case 440CT

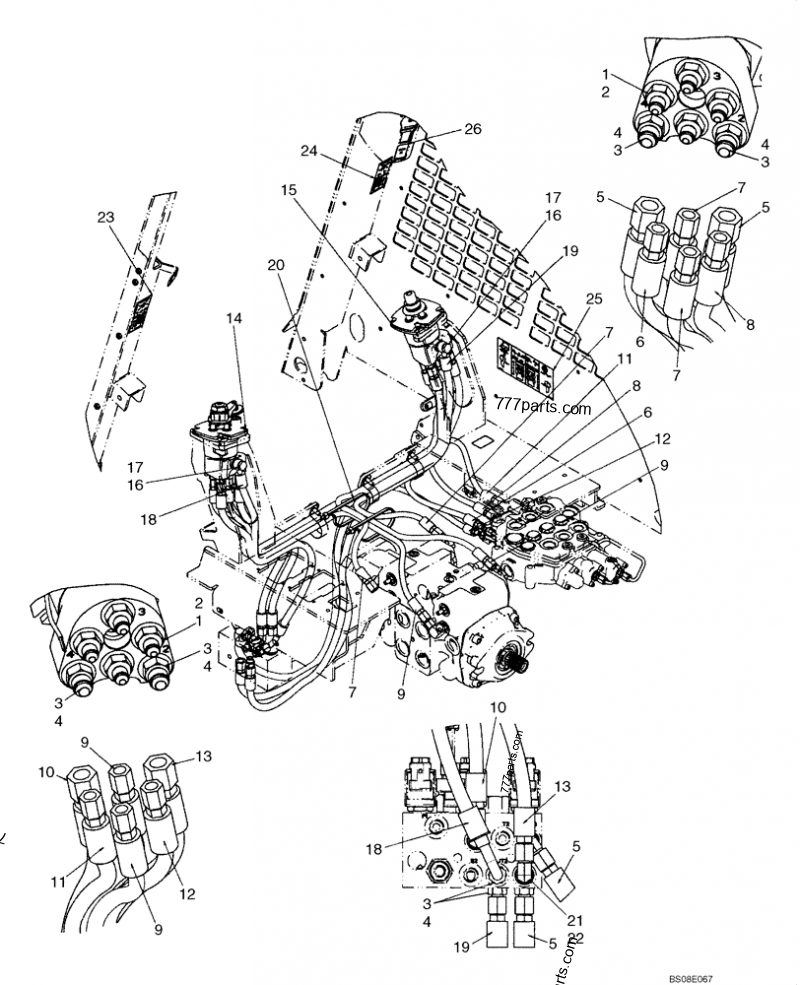

/case/440CT/m176/s-366.html / 06 POWER TRAIN / JOYSTICK CONTROL PLUMBING - H PATTERN

Select modification

COMPACT TRACK LOADER - SERIES 3, ASN N7M483467 (1/08-3/11)

• COMPACT TRACK LOADER - SERIES 3, ASN N7M483467 (1/08-3/11)
• COMPACT TRACK LOADER - BSN N7M483467 (3/06-12/07)

Select section

All

• All

Subsection

All

• All

Unit

Select group

11

6

21

9

3

24

3

4

13

17

4

7

9

12

5

5

4

2

16

9

3

7

8

1

11

10

18

7

5

8

10

4

18

14

26

22

12

6

2

4

23

3

5

13

20

16

19

7

3

1

17

15

19

25

9

Subscribe to get access to part numbers.

Unlock Access

#	Part No.	Description	Qty
	87***77	SERVICE KIT; Kit; H Pattern Controls; Incl. 1 - 21 And Instructions	1
1	13***98	HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC; Incl 2	8
2	96***73	O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro	8
3	76***50	HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC; Incl 4	6
4	96***73	O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro	6
5	87***18	HOSE,9.53mm ID x 1300mm L; 1300 mm (51.18 in) Joystick Supply Or Drain	2
6	87***62	HOSE,6.35mm ID x 590mm L; 590 mm (23.23 in) Pilot	1
7	87***64	HOSE; 850 mm (33.46 in) Pilot	2
8	87***69	HOSE,6.35mm ID x 490mm L; 490 mm (19.29 in) Pilot	1
9	87***29	HOSE; 915 mm (36.02 in) Pilot	2
10	87***80	HOSE,9.53mm ID x 620mm L; 620 mm (24.40 in) Joystick Drain	1
11	87***61	HOSE,6.35mm ID x 1055mm L; 1055 mm (41.54 in) Pilot	1
12	87***63	HOSE,6.35mm ID x 930mm L; 930 mm (36.61 in) Pilot	1
13	87***17	HOSE,9.53mm ID x 690mm L; 690 mm (27.16 in) Joystick Supply	1
14	87***40	HYDRAULIC VALVE; H Pattern Joystick Valve, Left Hand, See Figure 06-04; If Used	1
14A	87***88	HYDRAULIC VALVE; Replaces 87357240; See Fig 06-04	1
15	87***41	HYDRAULIC VALVE; H Pattern Joystick Valve, Right Hand, See Figure 06-05; If Used	1
15A	87***89	HYDRAULIC VALVE; Replaces 87357241; See Fig 06-05	1
16	87***64	BOLT; Banjo Bolt, 10 Banjo 3/4 Hole	2
17	93***R1	SEALING RING,M14 x 18 x 1.8	4
18	87***90	HOSE,9.53mm ID x 776mm L; 776 mm (30.55 in) Joystick Supply	1
19	87***89	HYDRAULIC HOSE,9.52 mm ID x 1260.00 mm; Joystick Supply	1
20	L1***31	CABLE TIE,375.9mm L, Nylon; CABLE STRAP	2
21	86***26	ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB; Incl. 22	1
22	96***73	O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro	1
23	87***89	DECAL; Decal, H Pattern LH	1
24	87***90	DECAL; Decal, H Pattern RH	1
25	87***87	DECAL; Decal, H Pattern Control ID	1
26	87***90	DECAL; Decal, H Pattern	1
