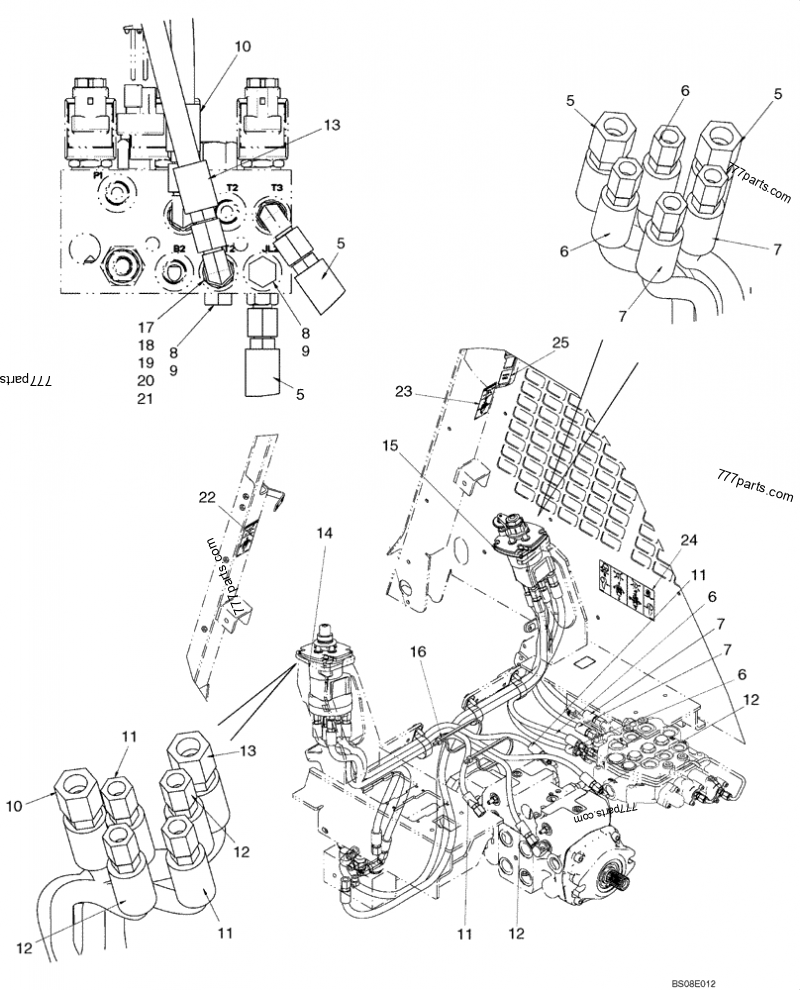

87***28 |
SERVICE KIT; Kit, ISO Pattern Control; Incl 1 - 21 |
1 |
| 1 |
13***98 |
HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC; Incl 3 |
8 |
| 2 |
96***73 |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro |
8 |
| 3 |
76***50 |
HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC; Incl 4 |
4 |
| 4 |
96***73 |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro |
4 |
| 5 |
87***18 |
HOSE,9.53mm ID x 1300mm L; 1300 mm (51.18 in) Joystick Drain Or Supply |
2 |
| 6 |
87***62 |
HOSE,6.35mm ID x 590mm L; 590 mm (23.23 in) Pilot |
2 |
| 7 |
87***69 |
HOSE,6.35mm ID x 490mm L; 490 mm (19.29 in) Pilot |
2 |
| 8 |
76***49 |
PLUG,9/16" - 18 ORB; Incl. 9 |
3 |
| 9 |
96***73 |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro |
3 |
| 10 |
87***80 |
HOSE,9.53mm ID x 620mm L; 620 mm (24.40 in) Joystick Drain |
1 |
| 11 |
87***72 |
HOSE; 800 mm (31.50 in) Pilot |
2 |
| 12 |
87***70 |
HOSE; 920 mm (36.22 in) Pilot |
2 |
| 13 |
87***71 |
HOSE; 680 mm (26.77 in) Joystick Supply |
1 |
| 14 |
87***54 |
VALVE; Joystick Valve, ISO Pattern LH; See Figure 06-06 |
1 |
| 15 |
87***23 |
VALVE; Joystick Valve, ISO Pattern RH; See Figure 06-07 |
1 |
| 16 |
L1***31 |
CABLE TIE,375.9mm L, Nylon; CABLE STRAP |
2 |
| 17 |
87***71 |
ADAPTER; .38 OD Male x .38 OD Female; Incl 18, 19 |
1 |
| 18 |
96***73 |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro |
1 |
| 19 |
99***41 |
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro |
1 |
| 20 |
86***26 |
ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB; Incl 21 |
1 |
| 21 |
96***73 |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro |
1 |
| 22 |
87***91 |
DECAL; Decal, ISO Pattern RH |
1 |
| 23 |
87***92 |
DECAL; Decal, ISO Pattern LH |
1 |
| 24 |
87***88 |
DECAL; Decal, Control ID ISO Pattern |
1 |
| 25 |
87***91 |
DECAL; Decal, ISO Pattern |
1 |
