Case 440CT (COMPACT TRACK LOADER - SERIES 3, ASN N7M483467 (1/08-3/11))
COMPACT TRACK LOADERS Case 440CT

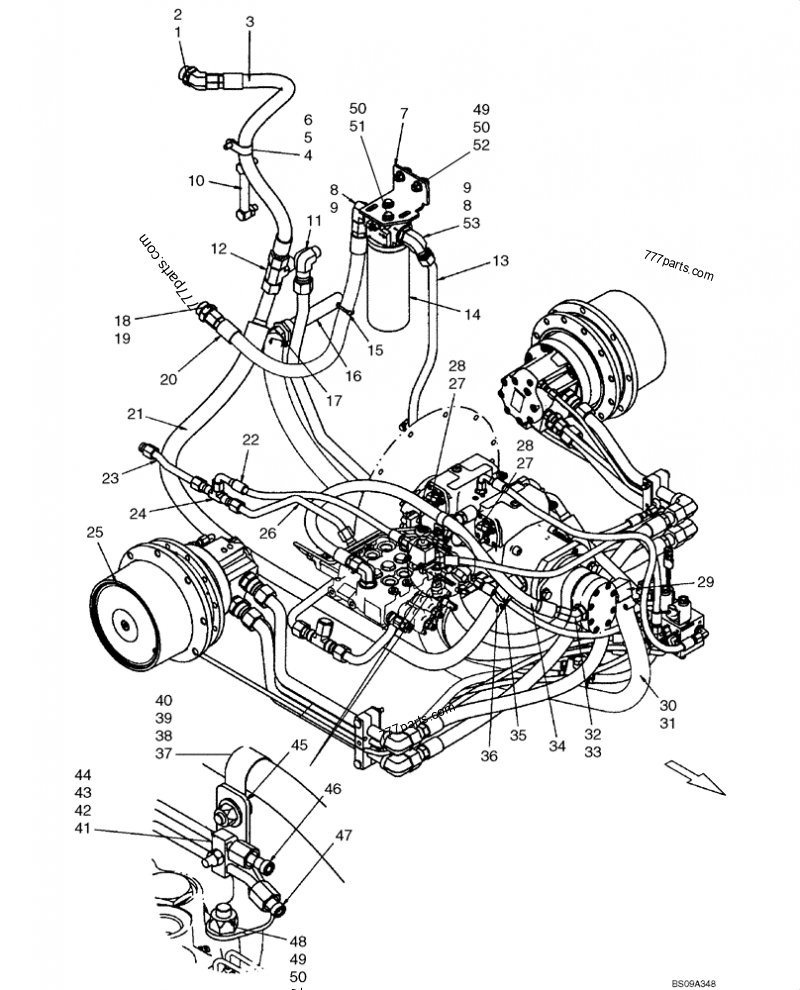

/case/440CT/m176/s-366.html / 06 POWER TRAIN / HYDROSTATICS - PUMP, SUPPLY AND RETURN (440CT)
Select modification
Select section
- All
Subsection
- All
Unit
9
43
7
33
22
3
14
4
49
5
45
13
20
37
27
26
9
32
42
28
21
8
25
35
29
27
23
31
52
15
16
49
12
2
11
44
40
1
8
19
48
38
39
53
17
10
28
50
50
34
30
46
18
51
41
50
47
6
36
24
Subscribe to get access to part numbers.
Unlock Access| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 87***80 | ELBOW; Elbow; 37FL 45 ADJ 3/4 X 1.0 Tube; Incl 2 | 1 |
| 2 | 16***68 | O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro | 1 |
| 3 | 87***80 | HOSE,19.05mm ID x 810mm L, SAE 100R4; 810 mm (31.88 in); Upper Cooler | 1 |
| 4 | 86***01 | CLAMP,30.2mm, Coat, 11.9mm Bolt Hole, P Type | 1 |
| 5 | 14***45 | BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk | 1 |
| 6 | 43***38 | BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8 | 1 |
| 7 | REF | INSTRUCTION; Hydrostatic Filter; For Mounting, See Figure 06-32 | 1 |
| 7 | 87***01 | BRACKET, SUPPORTING; Filter Mounting Bracket-Tan | 1 |
| 8 | 57***24 | ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring; Incl. 9 | |
| 9 | 30***12 | O-RING | 1 |
| 10 | 87***52 | GAUGE; Liquid Level | 1 |
| 11 | 96***96 | ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF; If Used | 1 |
| 12 | 97***47 | TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br | 1 |
| 13 | 87***56 | HYD TUBE,19.05 mm OD x 422.6, 172.8 mm L; Tube, Valve To Filter, LH Wall; If Used | 1 |
| 14 | 87***61 | FILTER; C|FOR CASE BRANDED FILTER ORDER 87010593 ....... 1 87010593 FOR NEW HOLLAND BRANDED FILTER ORDER 87010592 ....... 1 87010592 FILTER HEAD ASSEMBLY ORDER 87439984 ....... 1 87439984; Hydrostatic Filter; See Figure 06-32 | 1 |
| 15 | 52***70 | CABLE TIE,368.3mm L; CABLE STRAP | 1 |
| 16 | H1***99 | FILTER STRAINER; Suction Line | 1 |
| 17 | 87***23 | FITTING,1/4" Hose x 1/8" NPTF, Fem, Barbed | 1 |
| 18 | 23***05 | HYD CONNECTOR,1-5/16" - 12 ORB x 1-1/16" - 12 JIC; Incl. 19 | 1 |
| 19 | 16***66 | O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro | 1 |
| 20 | 87***40 | HOSE,19.05mm ID x 760mm L; Hose, Lower Cooler, 760mm (29 15/16 in.) | 1 |
| 21 | 87***71 | HOSE; 1859 mm (73.18 in); Charge Pump Supply | 1 |
| 22 | 87***90 | HOSE; 559 mm (22 in); Dump Valve Supply; If Used | 1 |
| 22 | 87***36 | HOSE,9.53mm ID x 1220mm L; 1220mm (48.03 in); Dump Valve Supply | 1 |
| 23 | 87***00 | HYD TUBE,15.875 mm OD x 219.7 mm L; Dump Valve Drain, 220mm (8 11/16 in.); If Used | 1 |
| 23 | 87***70 | HYD TUBE; Dump Valve Drain, 212mm (8 5/16 in.); If Used | 1 |
| 24 | 87***90 | HYD CONNECTOR; Tee, 5/8 x 5/8 x 1/2 37 FL; If Used | 1 |
| 25 | REF | INSTRUCTION; Undercarriage Plumbing; See Figure 06-13 | |
| 26 | 87***98 | HYD TUBE,15.875 mm OD; Dump Valve Drain; If Used | 1 |
| 27 | 86***36 | ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB | 2 |
| 28 | 87***74 | ADAPTER; 6FJ x 6MJ W/ 1.2 Orifice | 1 |
| 29 | 86***72 | FITTING,90 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded | 1 |
| 30 | 87***57 | HOSE; 1915 mm (75.39 in); Suction | 1 |
| 31 | 87***85 | HOSE CLAMP,32mm - 54mm | 2 |
| 32 | 10***97 | ELBOW,45 Degree, 7/8" - 14 JIC x 1-1/16" - 12 ORB; Incl.33 | 1 |
| 33 | 16***66 | O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro | 1 |
| 34 | 87***70 | HOSE,15.88mm ID x 1000mm L; 1000 mm (39.37 in); Valve Supply | 1 |
| 35 | 87***28 | ADAPTER,1" Hose Barb x 1-5/16" - 12 ORB; 90 Barb 1 Hose x 1-5/16-12 OR | 1 |
| 36 | 86***60 | HOSE CLAMP,25mm - 44mm | 1 |
| 37 | 98***02 | CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type | 1 |
| 38 | 12***04 | BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8 | 1 |
| 39 | 96***98 | NUT,M8 x 1.25, Cl 10 | 1 |
| 40 | 86***63 | WASHER,9mm ID x 20mm OD x 1.6mm Thk | 2 |
| 41 | 60***89 | CLAMP; Double | 1 |
| 42 | 87***61 | NUT,M6 x 1, Cl 8 | 1 |
| 43 | 86***50 | WASHER,6.6mm ID x 12mm OD x 1.6mm Thk | 1 |
| 44 | 80***01 | BOLT; M6 x 30 Cl 8.8 Znd | 1 |
| 45 | 87***06 | BRACKET; Hose Support; Replaces 87564009 | 1 |
| 46 | 87***69 | HYD TUBE,6.35 mm OD; Pilot | 1 |
| 47 | 87***68 | HYD TUBE,6.35 mm OD; Pilot | 1 |
| 48 | 43***44 | BOLT,Hex, M10 x 70mm, Cl 8.8 | 1 |
| 49 | 86***54 | NUT,M10 x 1.5, Cl 10 | 3 |
| 50 | 86***25 | WASHER,10.8mm ID x 24.5mm OD x 3mm Thk | 6 |
| 51 | 43***39 | BOLT,M10 x 1.5 x 25mm, Cl 8.8; C|O&K BERLIN : NUT - ORDER THE REFERENCE ....... 1 BER43139 IF LOOKING FOR BOLT, M10X25 FULL 8.8 ZND, ORDER 2975077 ....... 1 2975077 | 2 |
| 52 | 97***04 | BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8 | 2 |
| 53 | 87***48 | Oil Cooler Bypass; See Fig 06-31A; If Used | 1 |
| 54 | 87***49 | Oil Cooler Bypass; See Fig 06-31B | 1 |
